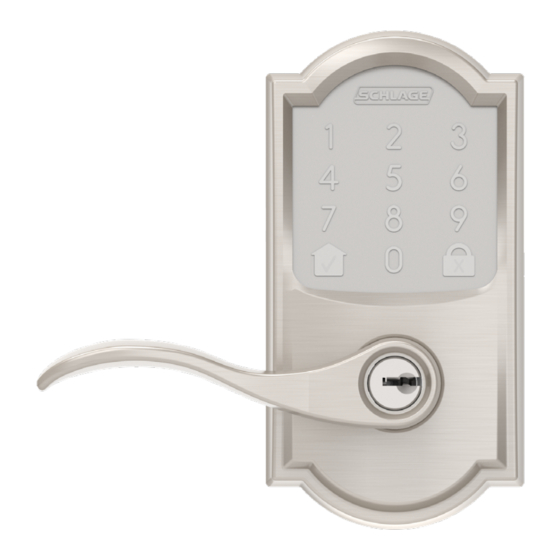

- Page 1 SMART WIFI LEVER SMART WIFI LEVER Quick Start Guide...
- Page 2 Parts Backup Backplate Battery Touchscreen Cover Assembly Inside Assembly Strike Inside Assembly Screws Backplate Latch Screws Pin wrench Latch/Strike *just in case you need Screws to remove levers.
-
Page 3: Before You Begin
Before you begin Setting up your lock with your smartphone? Start with the Schlage Home app for guided installation, set up, and pairing. Not ready to start with the app? You can access step-by-step interactive instructions and user guide information at: alle.co/EncodeLever... - Page 4 Touchscreen Programming and Input Communication Icon • Flashes when lock is connecting to WiFi to check for updates. • Amber when using manual programming mode. Low Battery Icon • Flashes after code is entered Home Button and when battery is low. Checkmark Icon •...
- Page 5 Tools Phillips screwdriver Don’t use a power drill! step Remove existing lever or knob. Remove the entire lever, including the latch. You may also want to remove the strike. Check with your specific lever or knob manufacturer if you need help.
-
Page 6: Install The Latch
step Install the latch. You may need to change your faceplate to fit the hole in the edge of your door. The bevel on the latch should face the door jamb. Jamb Rounded corner Bevel No change needed. 1. Remove the faceplate by inserting a screwdriver into Square corner... -
Page 7: Need Help
Need Help? Visit alle.co/EncodeLever. 2. Press square corner faceplate firmly on latch, then install. 2. Turn to remove piece as shown, then press circular faceplate on latch. 3. Hammer latch into door edge using a piece of wood Piece of wood to protect the latch. - Page 8 step Install the strike into the door frame. Actual Size...
- Page 9 step Install the touchscreen. Route the cable through the door ABOVE the latch. Push the touchscreen onto the door.
- Page 10 step Phillips screwdriver Don’t use a power drill! You may damage your lock! Install the backplate. Route the cable over the latch and through the hole on the backplate. Secure the backplate with screws. Make sure the outside touchscreen is straight before tightening screws all the way. Route wire through hole Actual Size...
-
Page 11: Connect The Cable
step Connect the cable. Tuck the cable and connector in the space as shown. - Page 12 step Phillips screwdriver Don’t use a power drill! You may damage your lock! Secure the inside assembly to the door. Remove battery cover to see the holes for the screws. Actual Size...
- Page 13 step Install batteries and slide the cover on. Pull out battery holder. Install batteries. Reinstall battery holder. Turn the battery holder around so the batteries face the door.
- Page 14 If you’re having trouble installing the cylinder, or if your levers block the door go to alle.co/EncodeLever step Install levers. Levers should not block the door from closing. Levers are interchangeable. Install levers to what you feel looks best on your door. Install inside lever.
- Page 15 Follow the steps below to install the outside lever and key cylinder. 1. Insert cylinder into 2. Insert key into cylinder. Cylinder lever. will be held in the lever by the key. 4. Press the lever with rotated 3. Rotate the key according key onto the lever post to the diagram below.
- Page 16 Test your lock step 1. Open your door! Press the lock button (on the inside of the door). 3. Find User Code A on the label on the back of this Quick Start Guide. 4. Enter User Code A (four digits) into the touchscreen keypad.
- Page 17 Now that your lock is installed you can access manual programming instructions and factory default reset (FDR) steps in the online interactive instructions. alle.co/EncodeLever...
- Page 18 • Tap the lock button on the outside touchscreen. UNLOCK • Enter a valid user code. If you have an auto-relock time set in the Schlage Home app, it will auto- lock. You can disable this setting in the app. Want to lock/unlock from anywhere...
- Page 19 Pressing this button LOCKS the door. Pressing this button UNLOCKS the door. Your door will stay unlocked (even if auto-relock is enabled) until: • You press the inside lock button. • You press the lock button on the outside touchscreen. •...
- Page 20 These are your backup codes. PLACE LABEL You will need these codes if you HERE ever factory default reset your lock. Keep these safe! Questions about your new Smart WiFi Lever? Please don’t return it to the store! Let us help you first! alle.co/EncodeLever *47376548* ©...
