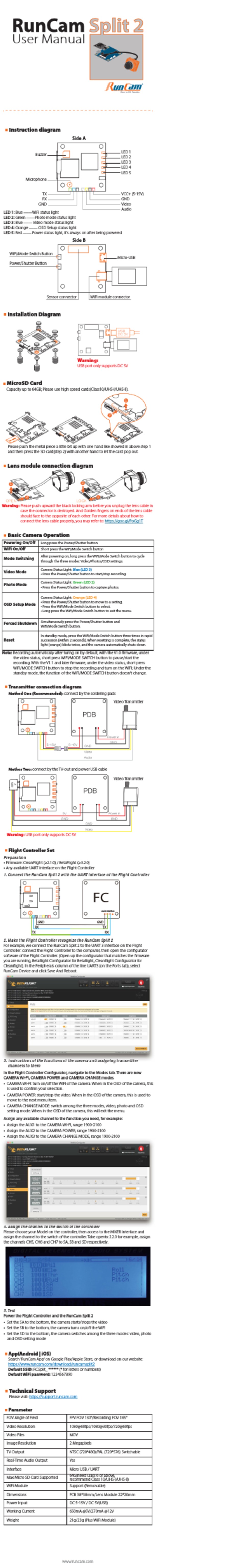

RunCam SPLIT 2 User Manual

User Manual
· ·

Instruction diagram

Microphone
LED 1: Blue ——WiFi status light
LED 2: Green ——Photo mode status light
LED 3: Blue —— Video mode status light
LED 4: Orange —— OSD Setup status light
LED 5: Red —— Power status light, it's always on after being powered
WiFi/Mode Switch Button
Power/Shutter Button
·Installation Diagram
·

MicroSD Card

Capacity up to 64GB; Please use high speed cards(Class10/UHS-I/UHS-II).
Please push the metal piece a little bit up with one hand like showed in above step 1
and then press the SD card(step 2) with another hand to let the card pop out.
·Lens module connection diagram
1
2
OPEN
Warning: Please push upward the black locking arm before you unplug the lens cable in
case the connector is destroyed. And Golden fingers on ends of the lens cable
should face to the opposite of each other. For more details about how to
connect the lens cable properly, you may refer to:
·Basic Camera Operation
Powering On/Off
WiFi On/Off
Mode Switching
Video Mode
Photo Mode
OSD Setup Mode
Forced Shutdown
Reset
Note: Recording automatically after turing on by default, with the V1.0 firmware, under
the video status, short press WIFI/MODE SWITCH button to pause/start the
recording. With the V1.1 and later firmware, under the video status, short press
WIFI/MODE SWITCH button to stop the recording and turn on the WIFI; Under the
standby mode, the function of the WIFI/MODE SWITCH button doesn't change.
·Transmitter connection diagram
Method One (Recommended): connect by the soldering pads
Methos Two: connect by the TV-out and power USB cable
Warning: USB port only supports DC 5V
·Flight Controller Set
Preparation
·
Firmware: CleanFlight (≥2.1.0) / BetaFlight (≥3.2.0)
·
Any available UART interface on the Flight Controller
1. Connect the RunCam Split 2 with the UART interface of the Flight Controller
2. Make the Flight Controller recognize the RunCam Split 2
For example, we connect the RunCam Split 2 to the UART 3 interface on the Flight
Controller: connect the Flight Controller to the computer, then open the configurator
software of the Flight Controller. (Open up the configurator that matches the firmware
you are running, Betaflight Configurator for Betaflight, Cleanflight Configurator for
Cleanflight). In the Peripherals column of the line UART3 (on the Ports tab), select
RunCam Device and click Save And Reboot. RunCam Device and click Save And Reboot.
3. Instructions of the functions of the camera and assigning transmitter 3. I I nst t ruct t i i ons
channels to them
In the Flight Controller Configurator, navigate to the Modes tab. There are new
CAMERA WI-FI, CAMERA POWER and CAMERA CHANGE modes.
·
CAMERA WI-FI: turn on/off the WIFI of the camera. When in the OSD of the camera, this
is used to confirm your selection.
·
CAMERA POWER: start/stop the video. When in the OSD of the camera, this is used to
move to the next menu item.
·
CAMERA CHANGE MODE: switch among the three modes, video, photo and OSD
setting mode. When in the OSD of the camera, this will exit the menu.
Assign any available channel to the function you need, for example:
·
Assign the AUX1 to the CAMERA WI-FI, range 1900-2100
·
Assign the AUX2 to the CAMERA POWER, range 1900-2100
·
Assign the AUX3 to the CAMERA CHANGE MODE, range 1900 2100 Assign the AUX3 to the CAMERA CHANGE MODE, range 1900-2100
4 4. Assign the channel to the switch of the controller A A ssi i gn t t h h e ch h annel l t t
Please choose your Model on the controller, then access to the MIXER interface and
assign the channel to the switch of the controller. Take opentx 2.2.0 for example, assign
the channels CH5, CH6 and CH7 to SA, SB and SD respectively.
5. Test
Power the Flight Controller and the RunCam Split 2
·
Set the SA to the bottom, the camera starts/stops the video
·
Set the SB to the bottom, the camera turns on/off the WIFI
·
Set the SD to the bottom, the camera switches among the three modes: video, photo
and OSD setting mode
·App(Android | iOS)
Search 'RunCam App' on Google Play/Apple Store, or download on our website:
https://www.runcam.com/download/runcamsplit2
Default SSID: RCSplit_ ****** (* for letters or numbers)
Default WiFi password: 1234567890
·Technical Support
Please visit: https://support.runcam.com
·Parameter
FOV Angle of Field
Video Resolution
Video Files
Image Resolution
TV Output
Real-Time Audio Output
Interface
Max Micro SD Card Supported
WiFi Module
Dimensions
Power Input
Working Current
Weight
Buzzer
TX
RX
GND
Sensor connector
Long press the Power/Shutter button
Short press the WiFi/Mode Switch button
After powering on, long press the WiFi/Mode Switch button to cycle
through the three modes: Video/Photos/OSD settings.
Camera Status Light:
• Press the Power/Shutter button to start/stop recording.
Camera Status Light:
• Press the Power/Shutter button to capture photos.
Camera Status Light:
• Press the Power/Shutter button to move to a setting.
• Press the WiFi/Mode Switch button to select.
• Long press the WiFi/Mode Switch button to exit the menu.
Simultaneously press the Power/Shutter button and
WiFi/Mode Switch button.
In standby mode, press the WiFi/Mode Switch button three times in rapid
succession (within 2 seconds). When resetting is complete, the status
light (orange) blicks twice, and the camera automatically shuts down.
5-15V
GND
GND
RX
TX
of f t t h h e f f unct t i ons i
o t t h h e swi i t t ch h
Side A
Side B
WiFi module connector
Warning:
USB port only supports DC 5V
2
LOCK
Blue (LED 3)
Green (LED 2)
Orange (LED 4)
PDB
5-15V
GND
Video
Audio
PDB
5V
GND
Video
of f t t h e camera h and
of f t t h h e cont t rol l l l
FPV FOV 130°/Recording FOV 165°
1080@60fps/1080@30fps/720@60fps
MOV
2 Megapixels
NTSC (720*480)/PAL (720*576) Switchable
Yes
Micro USB / UART
64G(need Class 6 or above,
recommend Class 10/UHS-I/UHS-II)
Support (Removable)
PCB 38*38mm/Lens Module 22*20mm
DC 5-15V / DC 5V(USB)
650mA @5V/270mA @12V
21g/23g (Plus WiFi Module)
www.runcam.com
LED 1
LED 2
LED 3
LED 4
LED 5
VCC+ (5-15V)
GND
Video
Audio
Micro-USB
USB
DC 5V
2
1
https://goo.gl/PoGg1T
Video Transmitter
Power in
GND
Video Transmitter
Power in
GND
FC
UART Interface
GND
TX
RX
d assi i gni i ng t t ransmi
er
1
i t t t er t
