Power section

The power section involves the power supply voltage (CN1, pin 2 and 3 for V
(between CN1 pins 1-4 and CN1 pins 5-4) and electromagnetic compatibility (EMC) protection.
1.
Output channel 1 - fault red LED
2.
Output channel 2 - fault red LED
3.
Output channel 1 - green LED
4.
Output channel 2 - green LED
5.
IPS2050HQ-32
6.
Output and power supply connector
For EMC:
The
SM15T39CA
GND tracks to protect the
coupling;
in common mode surge testing, two single-layer capacitors (C1 and C2 - not included) must be soldered at
the predisposed locations;
the
IPS2050HQ-32
IEC61000-4-2, IEC61000-4-3, IEC61000-4-5 standards.
UM3050 - Rev 1
Figure 3.

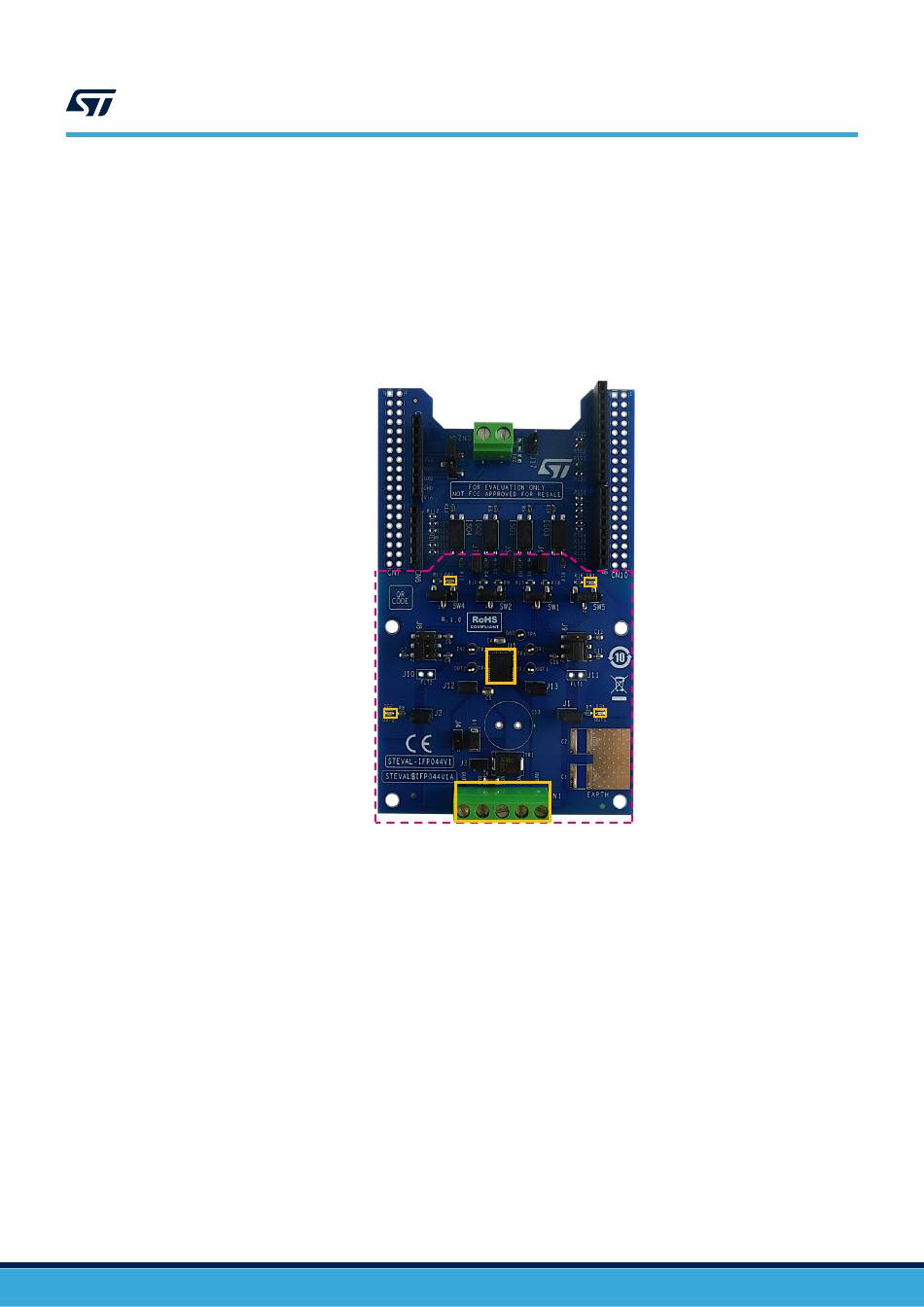

STEVAL-IFP044V1 expansion board: power stage components
2
4
transient voltage suppressor (TR1), enabled by closing JP3, is placed between V
IPS2050HQ-32
output stages do not require additional EMC protections with respect to the
1
5
3
6
against surge discharge on the supply rail path up to ±1kV/2Ω
UM3050
, pin 4 for GND), load connection
CC
CC
Overview
and
page 4/17
