Getting started with STEVAL-IFP046V1 industrial digital output expansion board
Introduction
The
STEVAL-IFP046V1
is an industrial digital output expansion board. It provides a powerful and flexible environment for the
evaluation of the driving and diagnostic capabilities of the
digital output module connected to 5.7 A industrial loads.
The
STEVAL-IFP046V1
can interface with the microcontroller on the
and Arduino R3 connectors.
The expansion board can be connected to either a
It is also possible to evaluate a system composed of up to four stacked
As an example, a system with four
module.
UM3058 - Rev 1 - August 2022
For further information contact your local STMicroelectronics sales office.
IPS1025HQ-32
NUCLEO-F401RE
STEVAL-IFP046V1
expansion boards allows you to evaluate a quad channel digital output

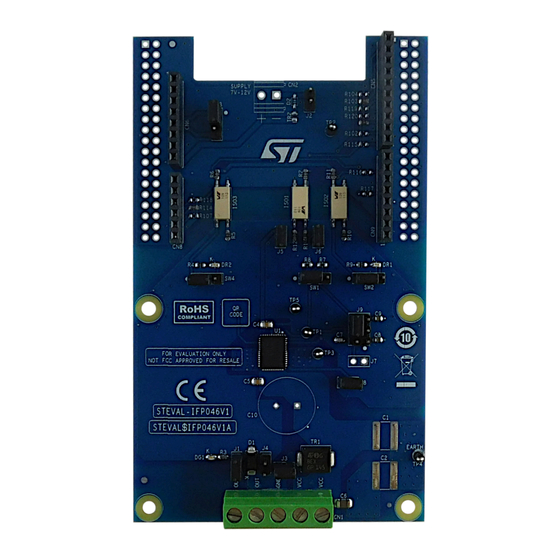

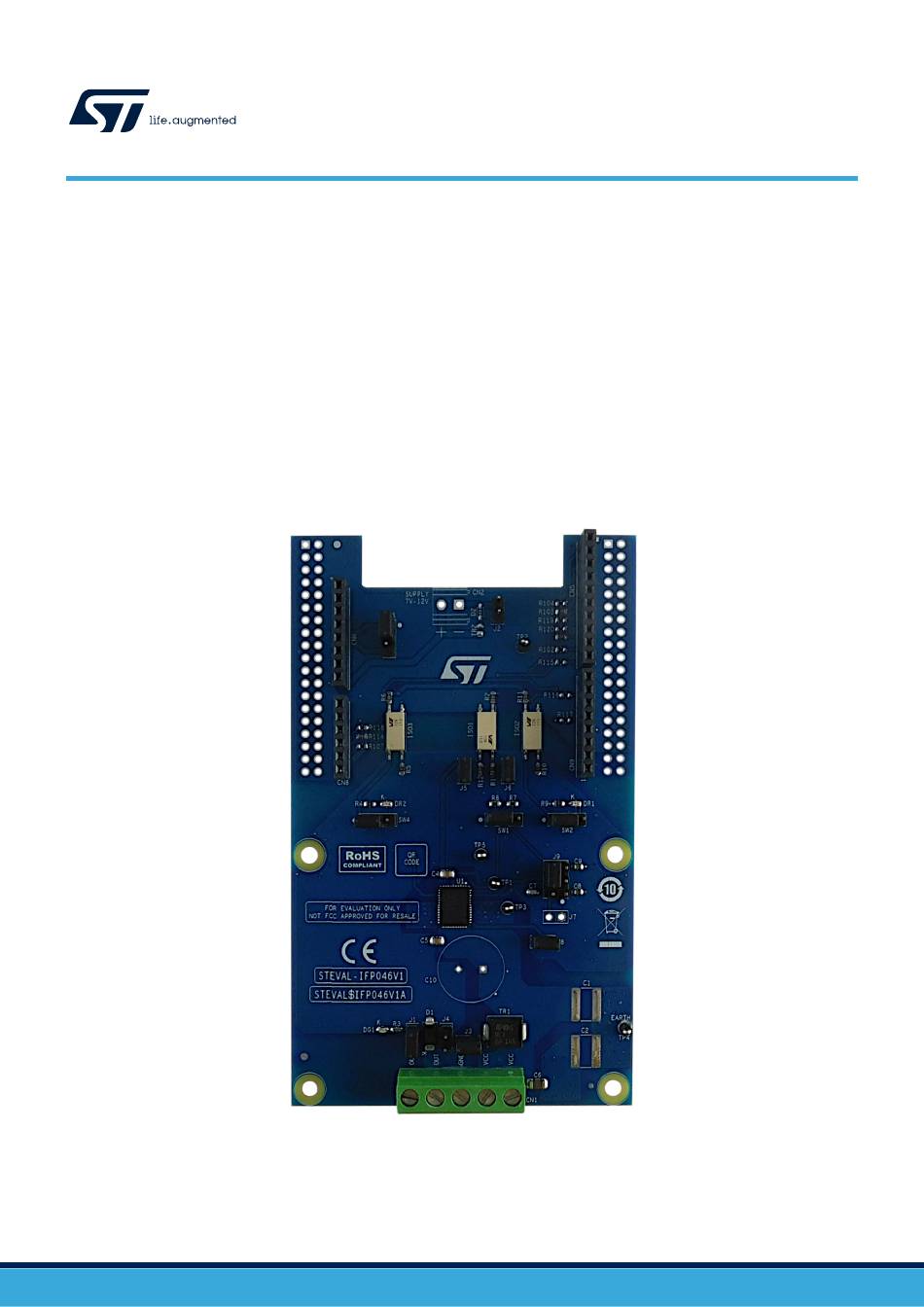

Figure 1.
STEVAL-IFP046V1 expansion board
single high-side smart power solid state relay, in a
STM32 Nucleo
via 5 kV optocouplers driven by GPIO pins
or a
NUCLEO-G431RB
development board.
STEVAL-IFP046V1
expansion boards.
UM3058
User manual
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-IFP046V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST STEVAL-IFP046V1

  • Page 1: Figure 1. Steval-Ifp046V1 Expansion Board

    UM3058 User manual Getting started with STEVAL-IFP046V1 industrial digital output expansion board Introduction STEVAL-IFP046V1 is an industrial digital output expansion board. It provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS1025HQ-32 single high-side smart power solid state relay, in a digital output module connected to 5.7 A industrial loads.
  • Page 2: Getting Started

    UM3058 Getting started Getting started Overview STEVAL-IFP046V1 embeds the IPS1025HQ-32 intelligent power switch (IPS), featuring overcurrent and overtemperature protection for safe output load control. The board is designed to meet application requirements in terms of galvanic isolation between user and power interfaces.
  • Page 3: Figure 2. Steval-Ifp046V1 Expansion Board: Digital Interface Section

    UM3058 Overview Figure 2. STEVAL-IFP046V1 expansion board: digital interface section Dotted green line indicates the whole digital interface section. Pink rectangles identify Arduino UNO R3 connectors The four Arduino UNO R3 connectors: • allow expansion board communication with the STM32 Nucleo development board microcontroller accessing STM32 peripheral and GPIO resources;...
  • Page 4: Power Section

    (a load can be connected between pins CN1.1 and CN1.3 or CN1.2, and CN1.3; both output pins are connected to the single output channel as shown in Schematic diagrams) and electromagnetic compatibility (EMC) protection. Figure 3. STEVAL-IFP046V1 expansion board: power section components Overtemperature red LED Overload red LED IPS1025HQ-32...
  • Page 5: Hardware Requirements

    STEVAL-IFP046V1 must be plugged onto the matching Arduino UNO R3 connector pins on the STM32 Nucleo board as shown below. Figure 4. STEVAL-IFP046V1 and STM32 Nucleo stack System requirements To use the STM32 Nucleo development boards with the STEVAL-IFP046V1 expansion board, you need: •...
  • Page 6: Multiple Board Configuration

    UM3058 Multiple board configuration Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through STM32 ST-LINK utility, STM32CubeProgrammer and according to your IDE environment as detailed in the table below. Table 1. NUCLEO-F401RE development board supported IDEs - bin files...
  • Page 7: Schematic Diagrams

    Schematic diagrams Figure 5. STEVAL-IFP046V1 circuit schematic (1 of 2) CN10 N.M. N.M. Analog supply 8V - 60 V OUT1 5001 4700pF 100uF 2.2uF N.M. N.M. EARTH 691137710005 4700pF default open N.M. default closed Morpho Connectors D1 STPS1H100A SSQ-119-04-L-D (N.M.)
  • Page 8: Figure 6. Steval-Ifp046V1 Circuit Schematic (2 Of 2)

    Figure 6. STEVAL-IFP046V1 circuit schematic (2 of 2) default closed ISO1 5001 default closed 5001 default: closed con3-strip-male R710k IPS1025HQ-32 con3-strip-male FLT1 default: CLOSE 1-2 default: CLOSE 1-2 OUT1 Exp-VCC con6-2x3-strip-male ISO2 0.1uF 0.1uF 2.2K default: closed 5001 con3-strip-male 2.2K...
  • Page 9: Bill Of Materials

    UM3058 Bill of materials Bill of materials Table 4. STEVAL-IFP046V1 bill of materials Manufacture Item Q.ty Ref. Part/Value Description Order code CAP CER 4700pF 300 V 10%1825 4700PF 3KV Vishay C1 C2 HV1825Y472KXHATHV (4564 Metric) X7R 1825 Vitramon (not mounted) CAP CER 0.1uF 100 V 10%0805 (2012...
  • Page 10 UM3058 Bill of materials Manufacture Item Q.ty Ref. Part/Value Description Order code 40 V, 350 mA axial general purpose BAT48JFILM, SOD323 signal BAT48JFILM Schottky diode (not mounted) LED GREEN Wurth 150060GS75000 20 mA 0603 CLEAR 0603 Electronics 150060GS75000 (1608 Metric) Inc.
  • Page 11 UM3058 Bill of materials Manufacture Item Q.ty Ref. Part/Value Description Order code CONN Wurth SW1 SW2 con3-strip-male TH 2.54mm HEADER .10 Electronics 61300311121 SW3 SW4 0 STR 3POS Inc. TEST POINT TP1 TP2 TP3 50010.100" Dia x 0.180" L Keystone 5001 TP4 TP5 (2.54mm x 4.57mm)
  • Page 12: References

    UM3058 References References Freely available on www.st.com: IPS1025H-32 datasheet UM3035: "Getting started with X-CUBE-IPS industrial digital output software for STM32 Nucleo" NUCLEO-F401RE data brief NUCLEO-G431RB data brief UM3058 - Rev 1 page 12/19...
  • Page 13: Board Versions

    STEVAL-IFP046V1 versions PCB version Schematic diagrams Bill of materials STEVAL$IFP046V1A STEVAL$IFP046V1A schematic diagrams STEVAL$IFP046V1A bill of materials 1. This code identifies the STEVAL-IFP046V1 evaluation board first version. It is printed on the board PCB. UM3058 - Rev 1 page 13/19...
  • Page 14: Regulatory Compliance Information

    UM3058 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product.
  • Page 15: Revision History

    UM3058 Revision history Table 6. Document revision history Date Revision Changes 29-Aug-2022 Initial release. UM3058 - Rev 1 page 15/19...
  • Page 16: Table Of Contents

    UM3058 Contents Contents Getting started ..............2 Overview .
  • Page 17: List Of Tables

    STEVAL-IFP046V1 bill of materials ........
  • Page 18: List Of Figures

    STEVAL-IFP046V1 expansion board: power section components ....... . . 4...
  • Page 19 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
