Getting started with the STEVAL-IFP043V1 industrial digital output expansion
Introduction
The
STEVAL-IFP043V1
is an industrial digital output expansion board. It provides a powerful and flexible environment for the
evaluation of the driving and diagnostic capabilities of the
output module connected to 2.5 A (max.) industrial loads.
The
STEVAL-IFP043V1
can interface with the microcontroller on the
Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
The expansion board can be connected to either a
It is also possible to evaluate a system composed by up to four stacked
As an example, a system with four
module with 2.5 A (max.) capability each.
UM3049 - Rev 1 - August 2022
For further information contact your local STMicroelectronics sales office.
IPS2050HQ
NUCLEO-F401RE
STEVAL-IFP043V1
expansion boards allows you to evaluate an eight-channel digital output

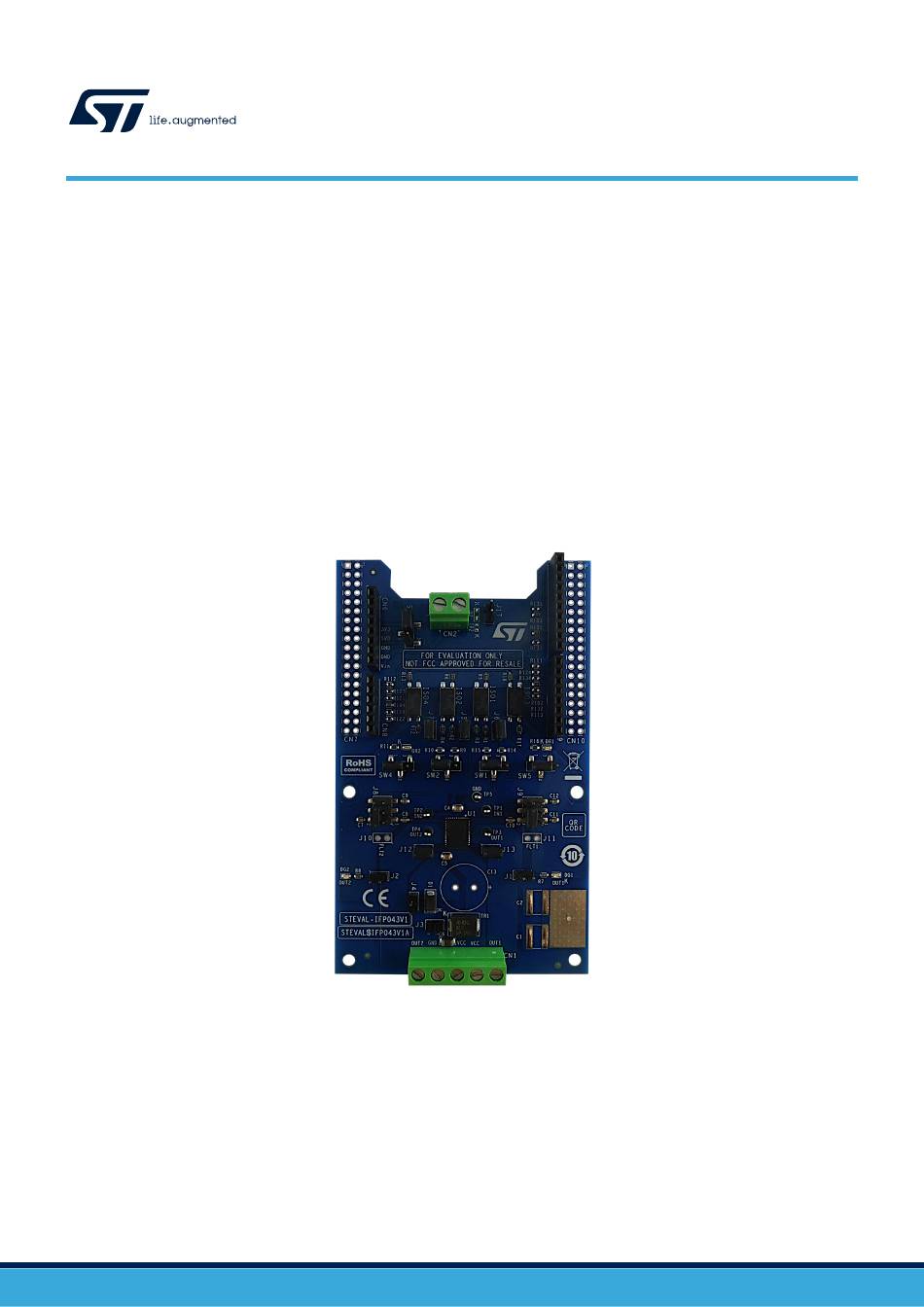

Figure 1.
STEVAL-IFP043V1 expansion board
(dual high-side smart power solid state relay) in a digital
STM32 Nucleo
via 5 kV optocouplers driven by GPIO pins,
or
NUCLEO-G431RB
development board.
STEVAL-IFP043V1
expansion boards.
UM3049
User manual
board
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST STEVAL-IFP043V1
Summary of Contents for ST STEVAL-IFP043V1
-
Page 1: Figure 1. Steval-Ifp043V1 Expansion Board
STM32 Nucleo via 5 kV optocouplers driven by GPIO pins, Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors. The expansion board can be connected to either a NUCLEO-F401RE NUCLEO-G431RB development board. -
Page 2: Getting Started
UM3049 Getting started Getting started Overview STEVAL-IFP043V1 embeds the IPS2050HQ intelligent power switch (IPS), featuring overcurrent and overtemperature protection for safe output load control. The board is designed to meet application requirements in terms of galvanic isolation between user and power interfaces. -
Page 3: Digital Section
The digital section is associated with the STM32 interface and digital supply voltage to and from the STEVAL- IFP043V1 expansion board. Figure 2. STEVAL-IFP043V1 expansion board: digital interface components The four Arduino UNO R3 connectors: • allow expansion board communication with the STM32 Nucleo development board microcontroller accessing STM32 peripheral and GPIO resources;... -
Page 4: Power Section
, pin 4 for GND), load connection (between CN1 pins 1-4 and CN1 pins 5-4) and electromagnetic compatibility (EMC) protection. Figure 3. STEVAL-IFP043V1 expansion board: power stage components Output channel 1 - fault red LED Output channel 2 - fault red LED... -
Page 5: Hardware Requirements
STEVAL-IFP043V1 must be plugged onto the matching Arduino UNO R3 connector pins on the STM32 Nucleo board as shown below. Figure 4. STEVAL-IFP043V1 and STM32 Nucleo stack System requirements To use the STM32 Nucleo development boards with the STEVAL-IFP043V1 expansion board, you need: •... -
Page 6: Multiple Board Configuration
Multiple board configuration Step 2. Download the firmware (.bin or .hex) onto the STM32 Nucleo development board microcontroller through STM32 ST-LINK utility, STM32CubeProgrammer and according to your IDE environment as detailed in the table below. Table 1. NUCLEO-F401RE development board supported IDEs - bin files... -
Page 7: Schematic Diagrams
Schematic diagrams Figure 5. STEVAL-IFP043V1 circuit schematic (1 of 2) Analog supply CN10 8V - 60 V OUT1 OUT1 5001 OUT2 4.7nF/3kV(N.M) N.M.(100uF) 2.2uF/100V EARTH CON5 4.7nF/3kV(N.M) OUT2 J4 1 default open default open CON38 Morpho Connectors CON38 STPS1H100A (N.M.) -
Page 8: Figure 6. Steval-Ifp043V1 Circuit Schematic (2 Of 2)
Figure 6. STEVAL-IFP043V1 circuit schematic (2 of 2) J5 1 default: closed DG1 GREEN LED 100nF/100V 100nF/100V default: open OUT1 OUT1 default: closed ISO1 default: closed IPS2050HQ Exp-VCC FLT1 default: CLOSE 1-2 2.2k default: CLOSE 1-2 ISO3 default: closed OUT2... -
Page 9: Bill Of Materials
UM3049 Bill of materials Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code IPS2050HQ, QFN48L 8x6 Dual HS IPS IPS2050HQ 5 ways, 1 row, TH 5mm, 24 A Terminal block WURTH 691137710005 C1,C2 N.A. 4.7nF, 1825, 3k V MLCC capacitors Vishay HV1825Y472KXHATHV... - Page 10 UM3049 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code BAT48JFILM, SOD-323, 40 V, VDD reverse D2 N.A. BAT48JFILM 0.35 A polarity protection High-power TR2 N.A. ESDA15P60-1U1M, QFN-2L transient voltage ESDA15P60-1U1M suppressor SAMTEC TH 2.54mm 10 ways, 1 row ESQ-110-14-T-S 17896 4UCON SAMTEC...
-
Page 11: Board Versions
STEVAL-IFP043V1 versions PCB version Schematic diagrams Bill of materials STEVAL$IFP043V1A STEVAL$IFP043V1A schematic diagrams STEVAL$IFP043V1A bill of materials 1. This code identifies the STEVAL-IFP043V1 evaluation board first version. It is printed on the board PCB. UM3049 - Rev 1 page 11/17... -
Page 12: Regulatory Compliance Information
UM3049 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 13: Revision History
UM3049 Revision history Table 5. Document revision history Date Revision Changes 29-Aug-2022 Initial release. UM3049 - Rev 1 page 13/17... -
Page 14: Table Of Contents
UM3049 Contents Contents Getting started ..............2 Overview . -
Page 15: List Of Tables
STEVAL-IFP043V1 versions ........ -
Page 16: List Of Figures
Figure 2. STEVAL-IFP043V1 expansion board: digital interface components ....... . 3 Figure 3. - Page 17 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
