INSTALLER'S & OWNER'S MANUAL
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER
E nergy Star efficient
n
High capacity effective dehumidification:
n
up to 65 pints of water a day
M ERV-11 filtration standard; MERV-14 optional
n
C ompact design
n
5 year warranty
n
P/N 4027170 • Serial No.________________________ Install Date:___________
Sold by:
P.O. Box 8680 Madison, WI 53708
TOLL-FREE 1-800-533-7533
•
www.thermastor.com
sales@thermastor.com
•
•
TS-422c
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor Ultra-Aire 65H
Summary of Contents for Therma-Stor Ultra-Aire 65H

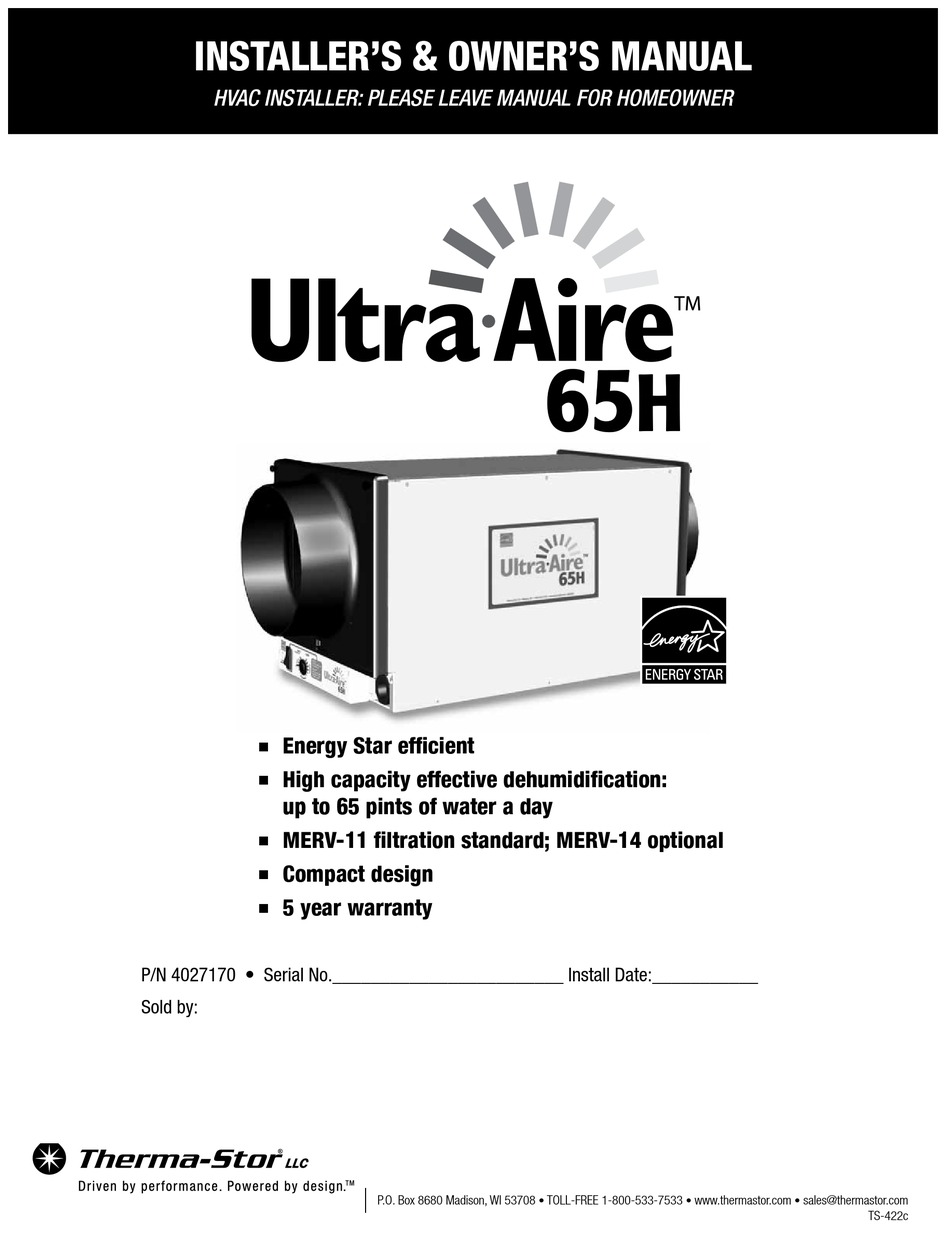

- Page 1 INSTALLER’S & OWNER’S MANUAL HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER E nergy Star efficient High capacity effective dehumidification: up to 65 pints of water a day M ERV-11 filtration standard; MERV-14 optional C ompact design 5 year warranty P/N 4027170 • Serial No.________________________ Install Date:___________ Sold by: P.O. Box 8680 Madison, WI 53708 TOLL-FREE 1-800-533-7533 www.thermastor.com sales@thermastor.com • • • TS-422c...
-
Page 2: Table Of Contents
5. Control Package Diagram Sheet........8 6. Maintenance ...............9 6.1 High Efficiency Air Filter ........9 6.2 Optional Fresh Air Intake ........9 7. Wiring Diagrams ............10 8. Optional Parts List .............10 9. Service Parts List .............11 Routine Maintenance ..........11 Ultra-Aire 65H Installer’s & Owner’s Manual... -
Page 3: Introduction
(ASHRAE, fire, etc). Please address all of these issues before you select the location of the device. 2. Registrations The Ultra-Aire 65H conforms to UL STD 474 and CSA 4.1A Power Accessibility Standard C22.2 No.92. Unit should be located in an area where the cord’s length (8') should easily reach a 110-120 VAC electrical outlet with a minimum of a 15 A circuit capacity. -
Page 4: B Space
4.1E Support Structure and Suspension accurately sense the relative humidity such as near Place the Ultra-Aire 65H on supports to raise the base of the HVAC supply registers, near exterior doors, on an outside unit. Do not place the Ultra-Aire 65H directly on structural wall, near a window, or near a water source. -
Page 5: A Lifting Condensate
Ultra-Aire 65H. If the 4.4 Ducting Ultra-Aire 65H is ducted to the supply of an air handler, the CAUTION check damper should be placed in the Ultra-Aire 65H supply duct. -
Page 6: B Ducting For Fresh Air - Option
Ultra-Aire 65H in a central area of the structure. Optional: Ultra-Aire Duct the supply of the Ultra-Aire 65H to a 8" x 8" x 8" tee/ Indoor Air Return damper that is 20% open to the crawlspace if desired. Duct... -
Page 7: E Installation In A Structure With
Ultra-Aire 65H in a central area of the structure. All control panels should be mounted in a central area of the Duct the supply of the Ultra-Aire 65H to the air supply of the 4. Controls existing HVAC system. -
Page 8: Control Package Diagram Sheet
ATTENTION INSTALLER Ultra-Aire 65H Installer’s & Owner’s Manual... -
Page 9: Maintenance
6.1 High Efficiency Air Filter The Ultra-Aire 65H is equipped with a MERV 11 media filter. This filter should be checked every three months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency and may cause the compressor to cycle off and on unnecessarily on the defrost control. -
Page 10: Wiring Diagrams
Ultra-Aire 65H WIRING DIAGRAM 7. Wiring Diagram 8. Optional Parts List: Ultra-Aire 65H Indoor Air Quality System Part No. Description 4027158 Filter MERV 11 4028085 Pump Kit 4028111 Hang Kit 4023647 8" Gravity Damper 4020646 8" Butterfly Damper 4027415 8" Flex Duct 4020177 8"... -
Page 11: Service Parts List
4027427 12 Pack The Ultra-Aire 65H is equipped with a MERV 11 media filter. This filter should be checked every three months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency and may cause the compressor to cycle off and on unnecessarily on the defrost control. -
Page 12: Service
5. Defective control transformer. 10.1 Technical Description Compressor is not running. Dehumidification is being The Ultra-Aire 65H uses a refrigeration system similar to an called for. No fan call. air conditioner’s to remove heat and moisture from incoming 1. Defective compressor run capacitor (Sec. 7.6). -
Page 13: Refrigerant Charging
This compressor is equipped with a two terminal external overload and a run capacitor, but no start capacitor or relay. CAUTION CAUTION-ELECTRICAL SHOCK HAZARD: Electrical power must be present to perform some tests. These tests Ultra-Aire 65H Installer’s & Owner’s Manual... -
Page 14: Deh 3000/Deh 3000R Digital Controller
To order call Therma-Stor at DMP, COMP, FAN: 1 AMP each ± Humidity Range/Accuracy: 10 – 95% RH, 1-800-533-7533 Auxillary Relay Capacity: 5 Amps, 24VAC Temp Range/Accuracy: 30°-90°F, 2% Size: 4.95"L x 1.06"W x 4.19"H Ultra-Aire 65H Installer’s & Owner’s Manual... -
Page 15: Warranty
ANY SUCH PROCEEDING. of nature or other causes not arising out of defects in Therma-Stor’s workmanship or material. If a Product or Component is replaced Miscellaneous. If any term or condition of this Limited Warranty... - Page 16 Phone: 608-222-5301 • Fax: 608-222-1447 electronic or mechanical, for any purpose, without the express written permission Web: www.thermastor.com • Email: sales@thermastor.com of Therma-Stor LLC. © 2008 Therma-Stor LLC. All rights reserved. Ultra-Aire 65H Installer’s & Owner’s Manual...
