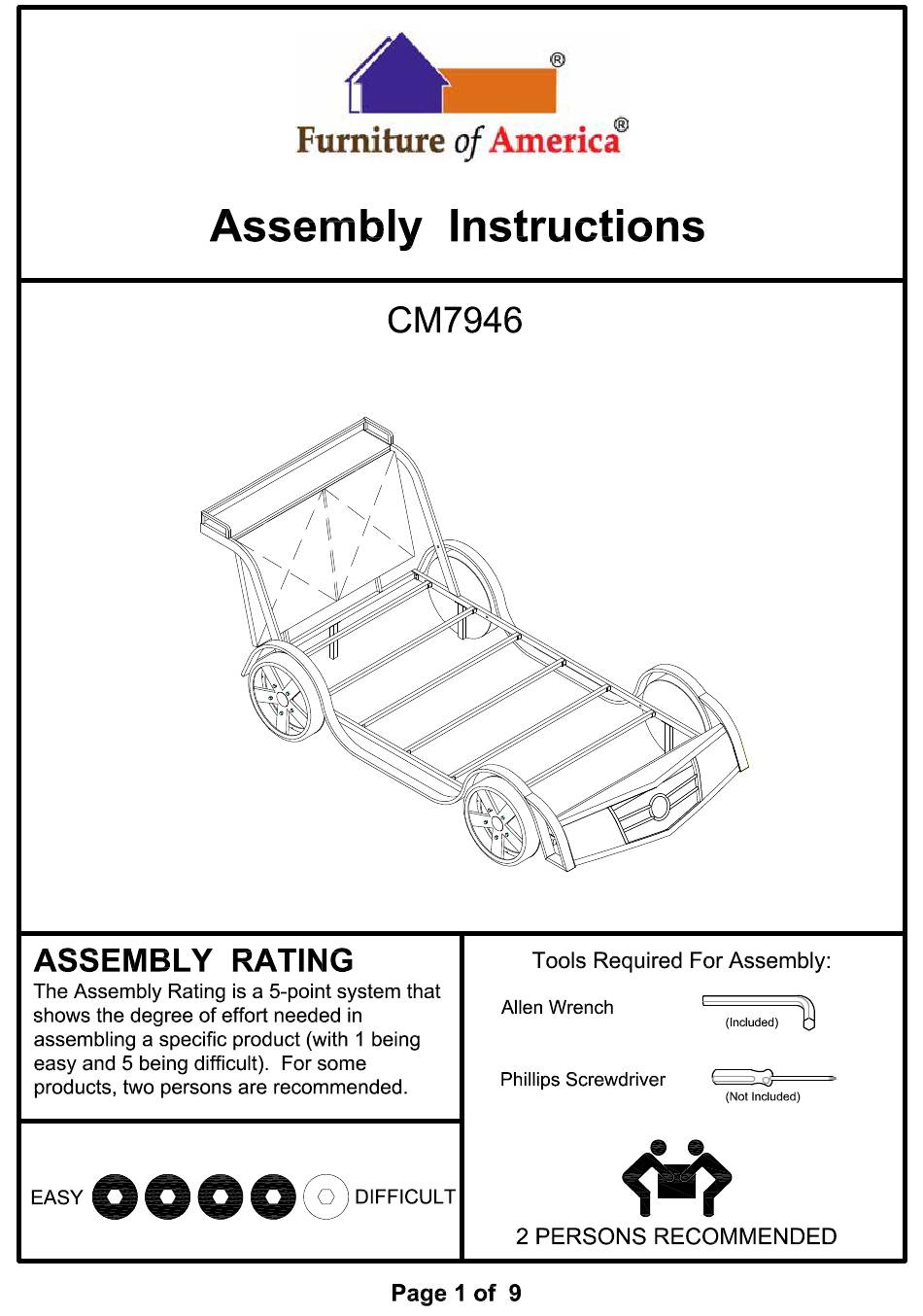

- Page 1 Rev.15-04-02...
- Page 5 I. Carefully place the left side rail (#1) on a protected surface. Align the headboard support A (#7) to the pre-drilled hole on the left side rail (#1). Insert bolt (#C) and secure using the Allen wrench (#F). II. Align a support leg (#14) to the other side of the left side rail (#1).
- Page 6 Align a support leg (#14) to the pre- drilled holes on the headboard connect (#3). Insert 2 bolts (#D) and secure using the Allen wrench (#F). I. Align the headboard connect (#3) to the right/left side rails (#1,2). II. Insert 2 bolts (#D) into each corner and secure using the Allen wrench (#F).
- Page 7 I. Align the headboard up connect (#9) and headboard tube frame (#10) in between the headboard supports A/B. II. Insert 2 bolts (#C) to lock the headboard up connect (#9) and use 4 bolts (#D) to lock the headboard tube frame (#10). Secure using the Allen wrench (#F).
- Page 8 I. Align the panel (#13) to the headboard up tube frame (#10) and the headboard (#12) to the headboard frame (#11). II. Prepare 6 bolt assemblies by inserting a washer (#H) onto the screw (#G). Insert connect the panel (#13) and secure using the Phillips screwdriver.
- Page 9 I. Align the wheels (#15) to the left/right side rails. II. On the other side insert 2 bolts (#B) into each wheel and secure using the Allen wrench (#F). Make sure all bolts are firmly secured. ASSSEMBLY IS COMPLETED...
