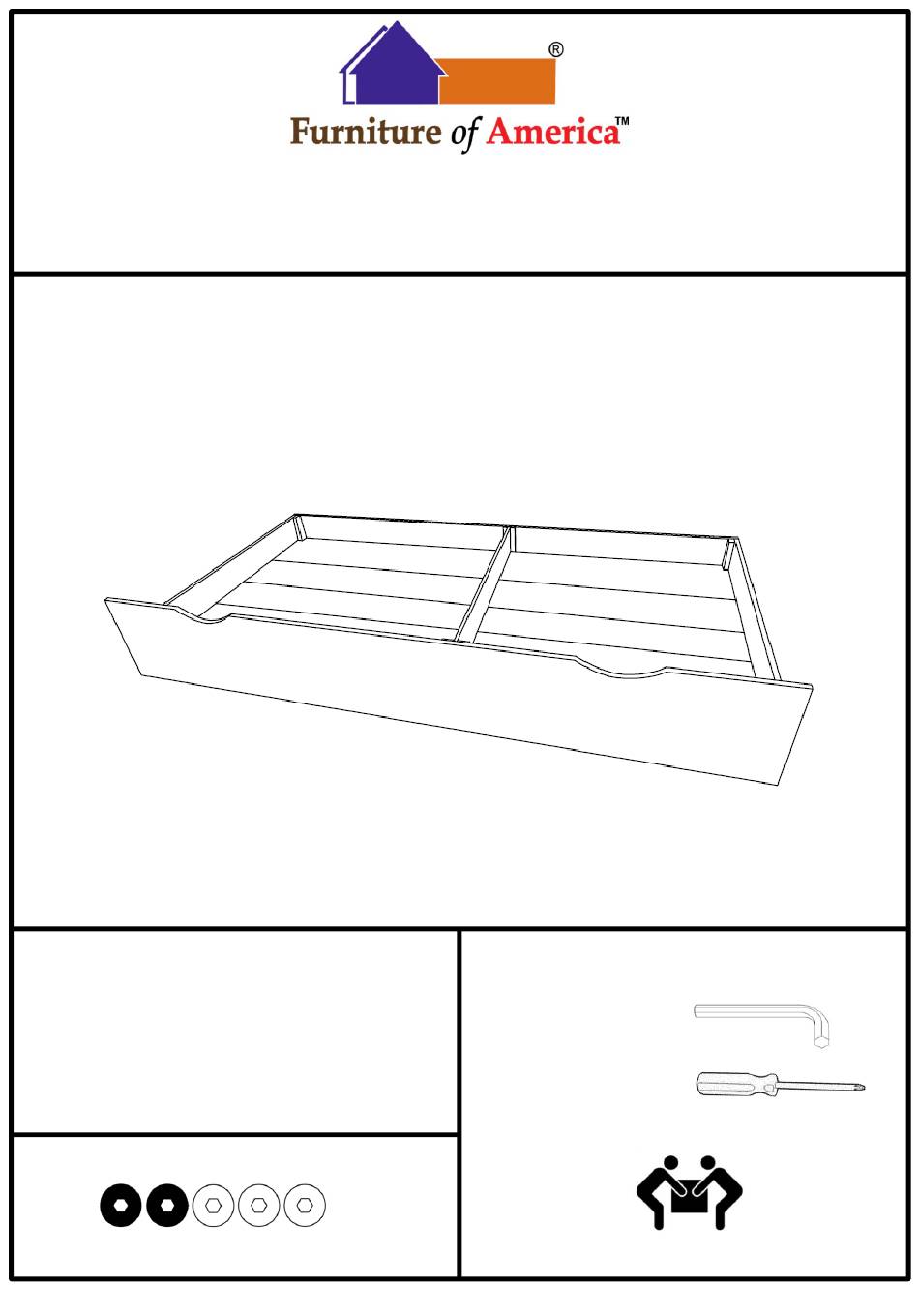

Furniture of America CM7941TR Assembly Instructions

CM7941TR TRUNDLE IS COMPATIBLE WITH CM7941T

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

CM7941TR

OR CM7941F BED SET (SOLD SEPARATELY).

DIFFICULT

Allen Wrench

Phillips Screwdriver

2 PERSONS RECOMMENDED

Page 1 of 5

(Included)

(not Included)

Rev.14-07-03

Table of Contents

Do you have a question about the CM7941TR and is the answer not in the manual?

Page 1 Assembly Instructions CM7941TR CM7941TR TRUNDLE IS COMPATIBLE WITH CM7941T OR CM7941F BED SET (SOLD SEPARATELY). ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 Page 2 of 5...
Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Front Panel Bolt 5/16”x1-3/8” #B x 8 pcs #2 x 2 pcs Flat Washer...
Page 4 #A x 8 pcs #B x 8 pcs #C x 8 pcs Align the two side panels (#2) with the pre-drilled holes on the back of the front panel (#1). Prepare 4 bolt assemblies by inserting FIRST the lock washer (#C) onto the bolt (#A) and then the flat washer (#B) onto the Turn right (clockwise) to tighten...
Page 5 Place the bottom panel (#6) over the assembled slats (#4). Insert the center panel (#5) between the space of the front panel (#1) AND the rear panel (#3). ASSEMBLY IS COMPLETED Page 5 of 5...
