Summary of Contents for Furniture of America CM7949F

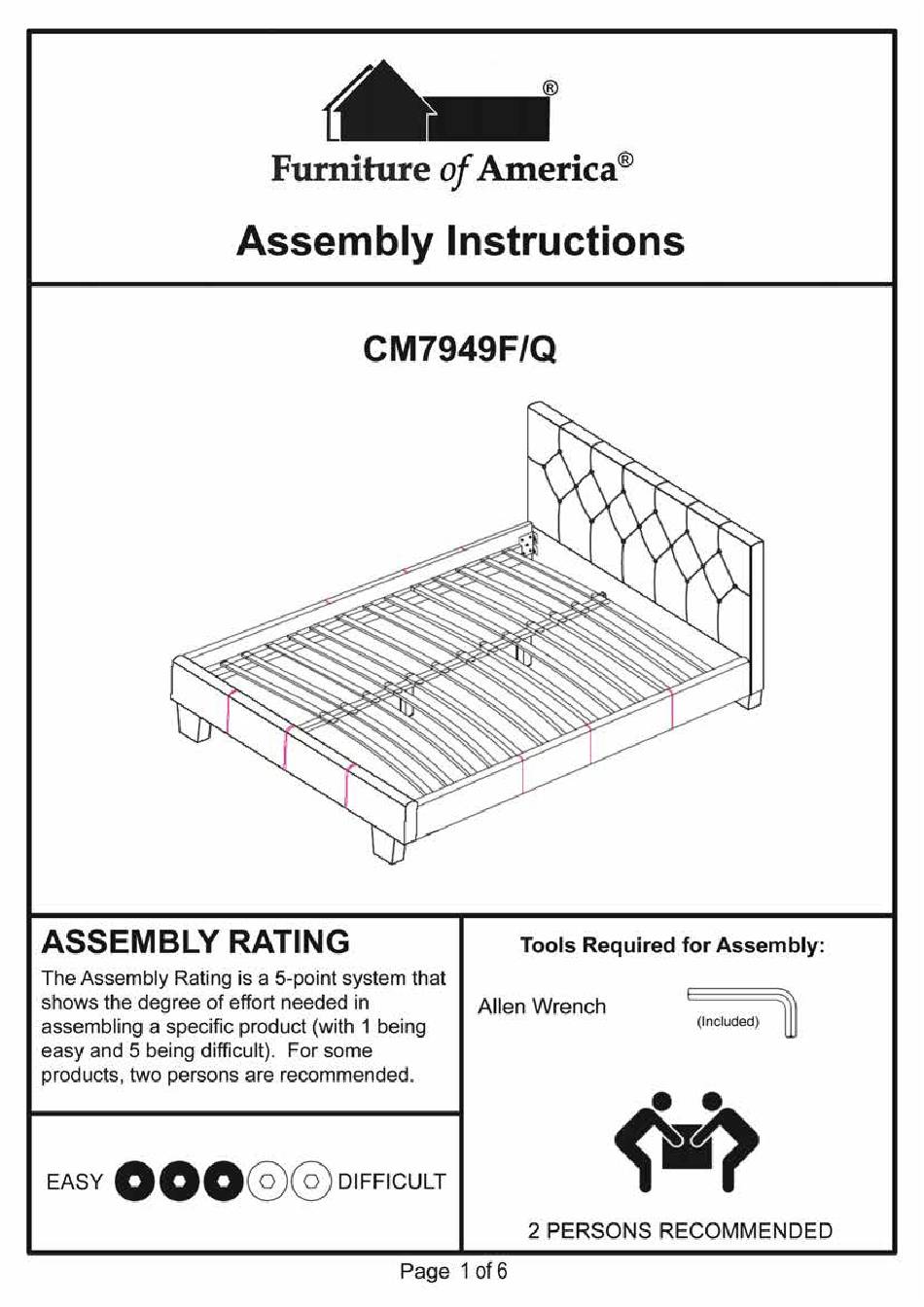

- Page 1 Rev:16-06-24...
- Page 7 Rev:16-06-24...
- Page 10 Due to the size and/or weight of this product, it is highly recommended that the assembly should be done near the area of its intended location. Make sure you have enough space to move around during the assembly. ALWAYS have at least two people to help with transporting and assembling the product to avoid any potential injury and/or damage.
- Page 11 Turn right (clockwise) to tighten #B x 6 pcs #D x 6 pcs #E x 6 pcs Align the 3 support rail legs (#7) with the pre-drilled holes of the support rail (#4). Prepare 3 bolt assemblies by inserting FIRST the lock washer (#D) onto the bolt (#B) and then the flat washer (#E) onto the SAME bolt (#B), in that order.
- Page 12 #B x 8 pcs Align the two assembled #D x 8 pcs support rails (#4) with the #E x 8 pcs pre-drilled holes on the headboard (#1) and the footboard (#3). Prepare 8 bolt assemblies by inserting FIRST the lock washer (#D) onto the bolt (#B) and then the flat Turn right (clockwise) to tighten...
