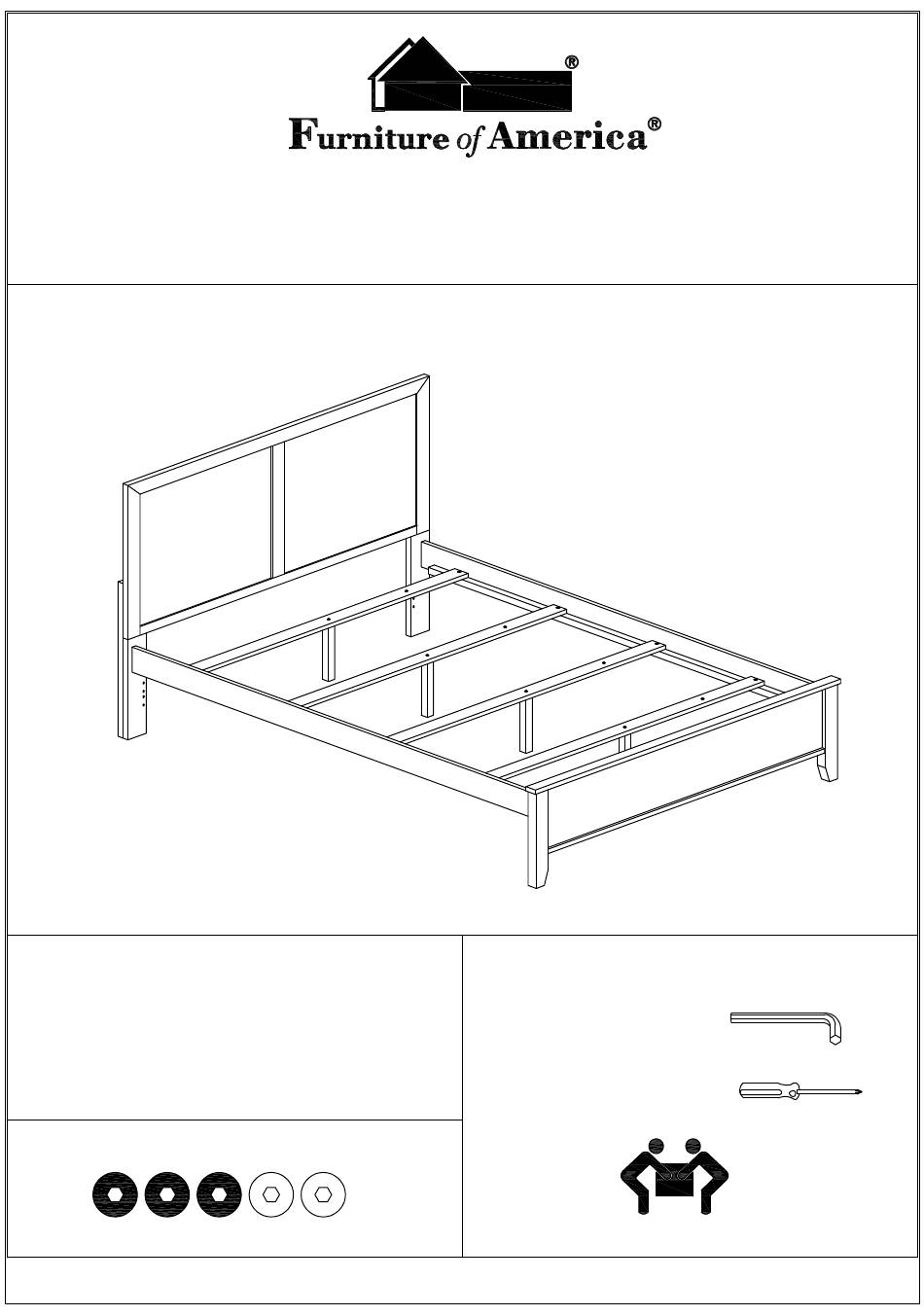

Furniture of America CM7941F Assembly Instructions

CM7941F

ASSEMBLY RATING

Tools Required For Assembly:

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

Allen Wrench

assembling a specific product (with 1 being

(Included)

easy and 5 being difficult). For some products,

two persons are recommended.

Phillips Screwdriver

(Not Included)

DIFFICULT

EASY

2 PERSONS RECOMMENDED

Page 1 of 5

REV: 16 -10 -27

Table of Contents

Do you have a question about the CM7941F and is the answer not in the manual?

Page 1 Assembly Instructions CM7941F ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult). For some products, two persons are recommended.
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1pc #A x 6pcs Headboard Bolt 5/16 x 1-3/8" #2 x 1pc #B x 6pcs Left H/Board Leg Look Washer...
Page 4 #A x 6pcs #B x 6pcs #C x 6pcs I. Align the left HB leg (#2) with the pre-drilled holes of the headboard (#1). II. Prepare 3 bolt assemblies by inserting FIRST the lock washer (#C) onto the bolt (#A) and then the flat washer (#B) onto the SAME bolt (#A), in that order.
Page 5 Align the threaded end of the slat support leg (#7) with the pre-drilled hole of the slat (#6) and tighten by hand until secured. Repeat the process to assemble the remaining 3 slat support legs (#7) onto the 3 slats (#6) Adjust the leveler according to the ground level on Step 4.
