Summary of Contents for DAPAudio CA-3150

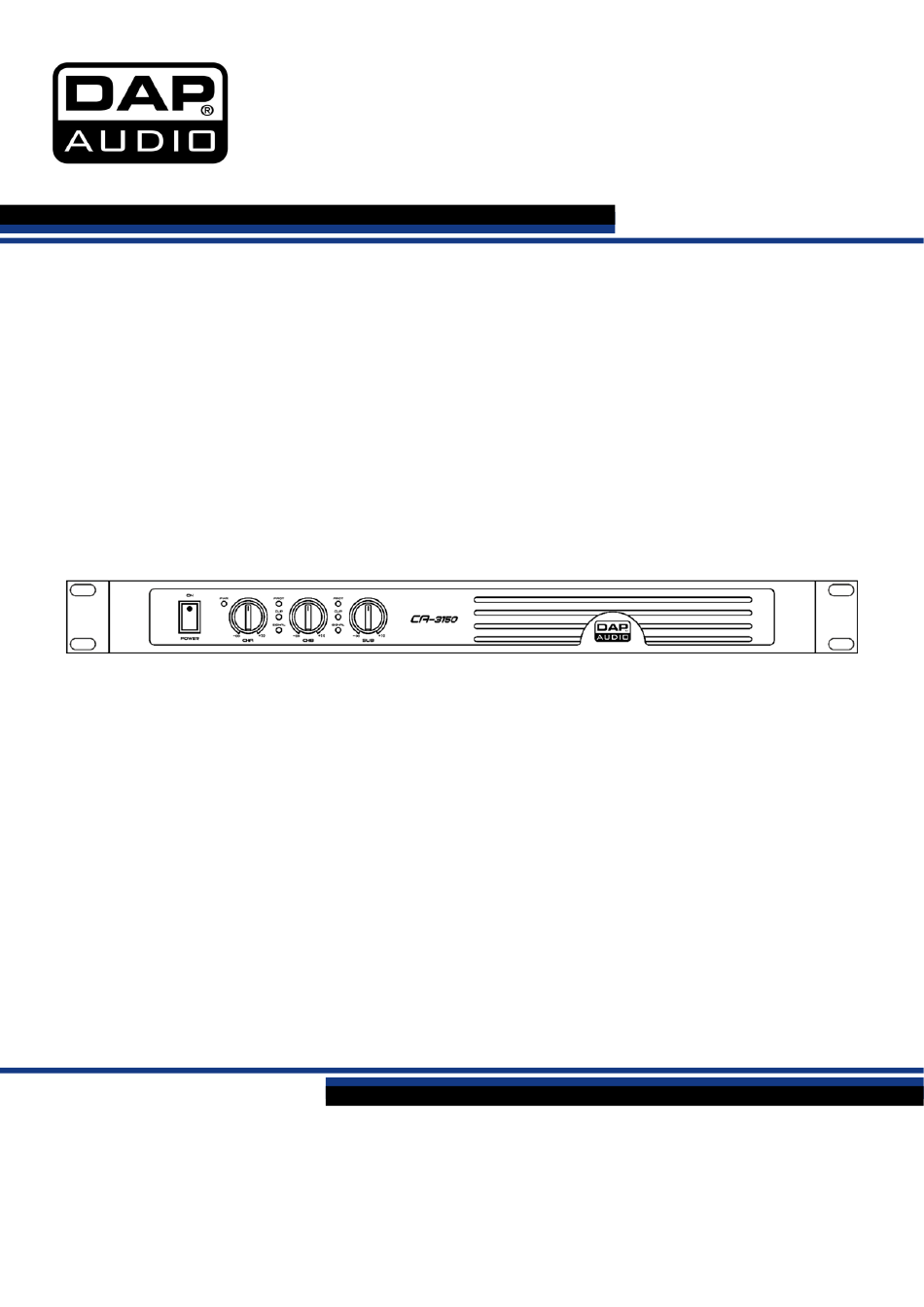

- Page 1 MANUAL ENGLISH CA-3150 Ordercode: D4511 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
CA-3150 Table of contents Warning ................................... 2 Safety Instructions ..............................2 Operating Determinations ............................4 Return Procedure ..............................4 Claims ..................................4 Description of the device ............................. 5 Frontside ..................................5 Backside ..................................6 ... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio CA-3150 Schuko power cable (1,5 m) ... - Page 4 CA-3150 Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same electrical circuit to ensure the same phase! Before changing the ground, always turn off your amplifier. Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in bridge mode, may damage both, the amplifier and test equipment.
-
Page 5: Operating Determinations
CA-3150 Operating Determinations This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 6: Description Of The Device
CA-3150 Description of the device The CA series is a family of powerful amplifiers which guarantee high output level. There are 4 available versions: CA-2150, CA-2300, CA-3150 and CA-4150. Features Output Power Stereo 2Ohm: 2 x 230W RMS ... -
Page 7: Backside
CA-3150 Power Switch ON/OFF Flick the switch to turn the device on/off. Power LED The LED will light in green when the CA is switched on. PROT, CLIP, SIGNAL LEDs PROT: The LED will light in red when the amplifier is in protection mode. Switch off the device and find out what the problem is. -
Page 8: Installation
CA-3150 Installation Remove all packing materials from the CA-3150. Check if all foam and plastic padding is removed. Fit the equipment to a 19" rack. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 9: Troubleshooting
CA-3150 Troubleshooting CA-3150 This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. If the unit operates properly, do not carry out following steps. -
Page 10: Dimensions
CA-3150 Dimensions Ordercode: D4511... - Page 11 CA-3150 Ordercode: D4511...
- Page 12 ©2017 DAP Audio...
