IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
A.
Back
1 pc.
C.
Frame
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
home
6700-83

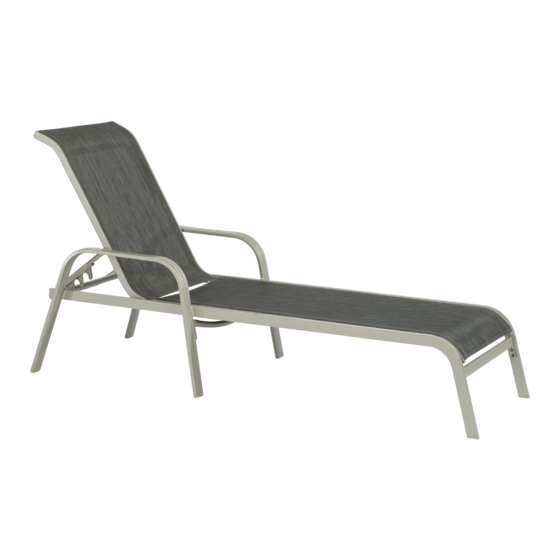

Chaise
Wrench
1 pc.
M6x20
Head Cap Bolt
8 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Seat
1 pc.
D.
Frame
1 pc.
Spring Washer
12 pcs. (+1 extra)
M6x35
Bolt
12 pcs. (+1 extra)
E.
Stretcher
1 pc.
F .
Stretcher
1 pc.
G.
Stretcher
1 pc.
Flat Washer
12 pcs. (+1 extra)
Cap
12 pcs. (+1 extra)
888-680-7460
Plastic
Washer
2 pcs. (+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 6700-83
Summary of Contents for Homestyles 6700-83
- Page 1 6700-83 Chaise IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. This product is made of aluminum. Do not use power tools above 8 volts to assemble and only tighten bolts until snug.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench and Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 STEP 3 Attach Frame (D) to unit with Flat Washers, Spring Washers, Bolts and Head Cap Bolts, tightening bolts only halfway. Flat Washer Spring Washer Head Cap Bolt Bolt Bolt Spring Washer Flat Washer Plastic Washer Plastic Washer STEP 4 Figure 3 Turn unit to its upright position.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
