IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.

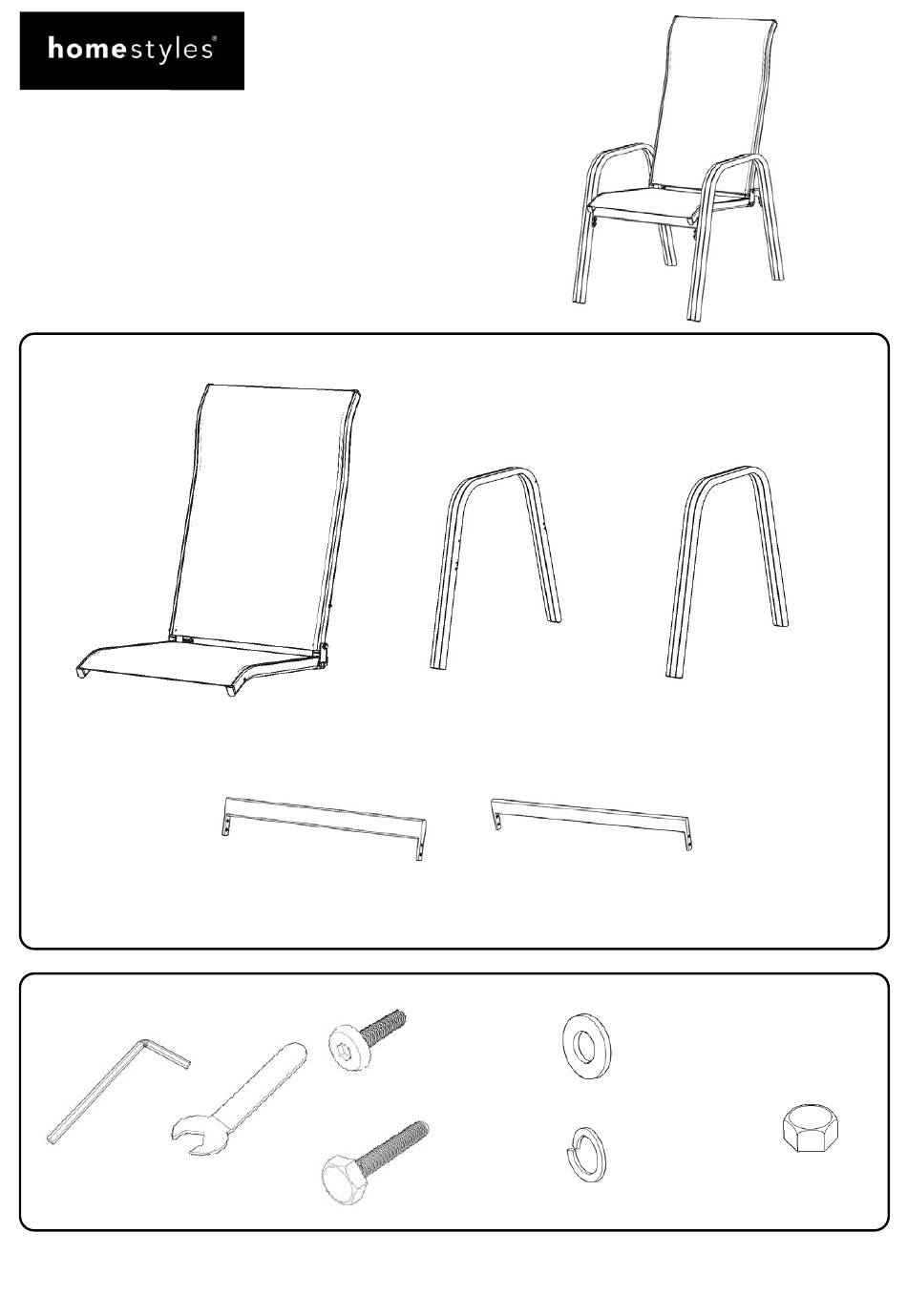

Part List
A.
Seat
1 pc.
Hardware List
Hex Wrench
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05700 0081

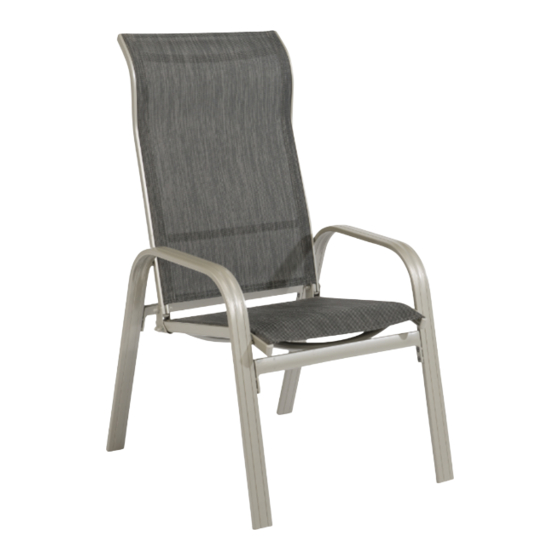

Arm Chair
D.
Front Stretcher
1 pc.
Wrench
1 pc.
B.
Frame
1 pc.
E.
Back Stretcher
1 pc.
M6x18
Head Cap Bolt
8 pcs. (+1 extra)
M6x40
Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
Frame
1 pc.
Flat Washer
4 pcs. (+1 extra)
Spring Washer
Cap
12 pcs. (+1 extra)
18 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 05700 0081
Summary of Contents for Homestyles 20 05700 0081
- Page 1 Flat Washer 4 pcs. (+1 extra) 8 pcs. (+1 extra) M6x40 Hex Wrench Wrench Bolt Spring Washer 1 pc. 1 pc. 4 pcs. (+1 extra) 12 pcs. (+1 extra) 18 pcs. (+1 extra) Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench and Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 STEP 3 Attach Frame (C) to unit with Flat Washers, Spring Washers, Head Cap Bolts and Bolts, tightening bolts only halfway. Tighten all bolts used in all steps. Spring Washer Head Cap Bolt Flat Washer Spring Washer Bolt STEP 4 Turn unit to its’...
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
