IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
A.
Side
1 pc.
D.
Seat
1 pc.
Hardware List
Rotating Ratchet
1 pc.
Tool(s) required for assembly: Level
home
6730-102

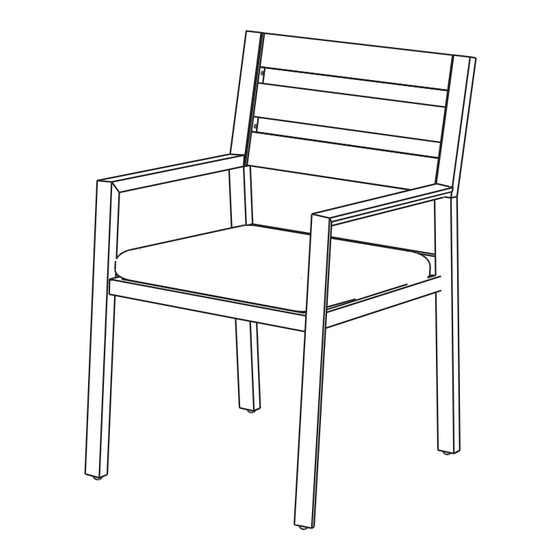

Chair
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Side
1 pc.
01
Head Cap Bolt (tapered)
4 pcs. (+1 extra)
02
Head Cap Bolt
4 pcs. (+1 extra)
C.
Back
1 pc.
E.
Cushion
1 pc.
03
Spring Washer
4 pcs. (+1 extra)
04
Flat Washer
4 pcs. (+1 extra)
888-680-7460
05
Cap
4 pcs. (+1 extra)
