IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.
Part List
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
home
6730-21

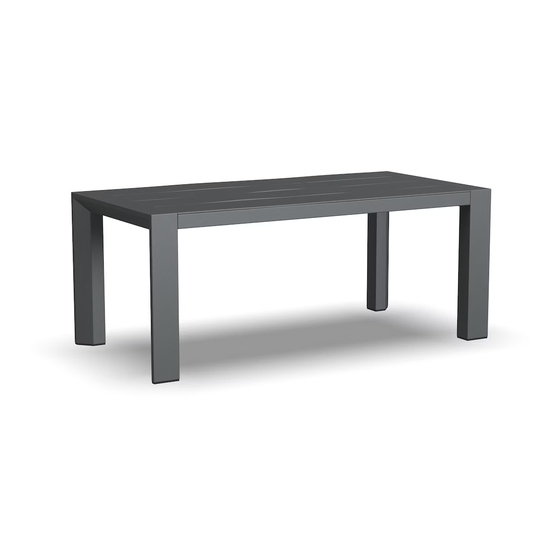

Coffee Table
A.
Top
1 pc.
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
Spring Washer
8 pcs. (+1 extra)
M6x35
Head Cap Bolt
8 pcs. (+1 extra)
888-680-7460
B.
Side
2 pcs.
Cap
8 pcs. (+1 extra)
Flat Washer
8 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles Grayton 6730-21
Summary of Contents for Homestyles Grayton 6730-21
- Page 1 6730-21 Coffee Table IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. This product is made of aluminum.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions / 3 3 Flat Washer Spring Washer Head Cap Bolt STEP 2 Attach Side (B) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. Tighten all bolts used in Steps 1 and 2. Cover all Head Cap Bolts with Caps.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
