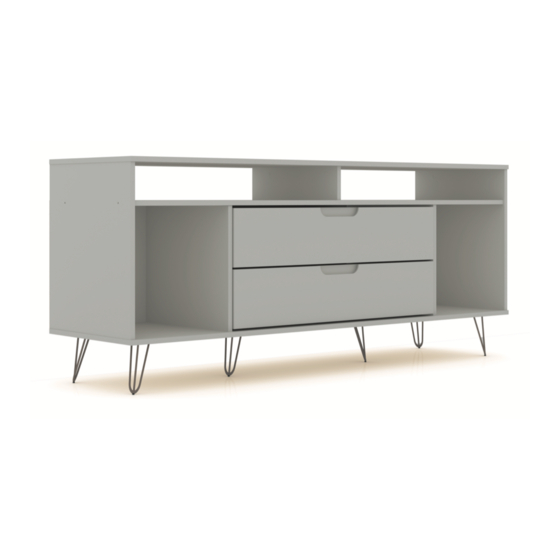

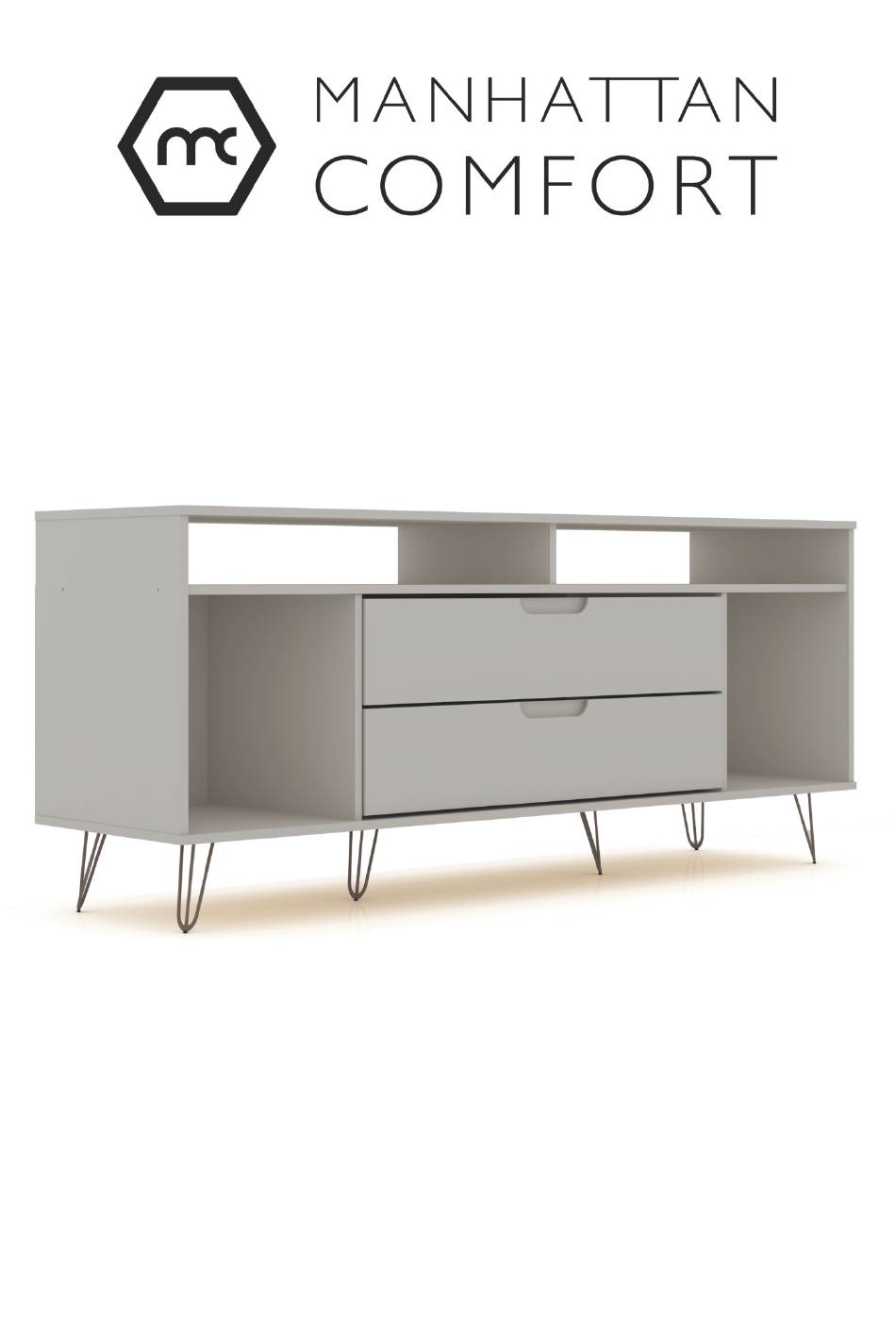

- Page 1 888-230-2225 help@manhattancomfort.com Rockefeller TV Stand 62.99"...
-
Page 2: Included In The Package
A = 24x B = 22x C = 18x D = 18x E = 18x F = 14x G = 26x H = 18x I = 08x Tools needed Phillips screw driver (not included) Screw driver Rockefeller 02/08 TV Stand... -
Page 3: Front View
Front View Rear View 66 lb 11 lb Step 01 Connect the part (01), onto the parts (02), (03), (04) and (05), using the hardware (B + C). Rockefeller 03/08 TV Stand... - Page 4 Connect the parts (12) onto the part (01) with the hardware (A). Step 02 Connect the part (13) onto the parts (03) and (04) using the hardware (C) and the hardware (D + E). Apply the hardware (H) on the hardware (E). Rockefeller 04/08 TV Stand...
- Page 5 Step 03 Connect the part (13) onto the parts (02) and (03) with the hardware (B). Step 04 Connect the part (14) onto the parts (13) with the hardware (B). Rockefeller 05/08 TV Stand...
-
Page 6: Rear View
Connect the part (15) onto the parts (02), (14) and (05) using the hardware (C) and the hardware (D + E). Apply the hardware (H) on the hardware (E). Step 05 Rear View Connect the part (16) with the hardware (G). Rockefeller 06/08 TV Stand... - Page 7 (06) with the hardware (F). Step 08 Connect the parts (07), (08) and (09) with the hardware (B). Apply the part (10) in the groove of the parts (07) and (08) until the groove of the part (09). Rockefeller 07/08 TV Stand...
- Page 8 (E). Step 09 Use the hardware (I) with the hardware (F) as shown on detail. Step 09 Install the drawer fitting it into the slides fixed on the side of parts (03) and (04). Rockefeller 08/08 TV Stand...
