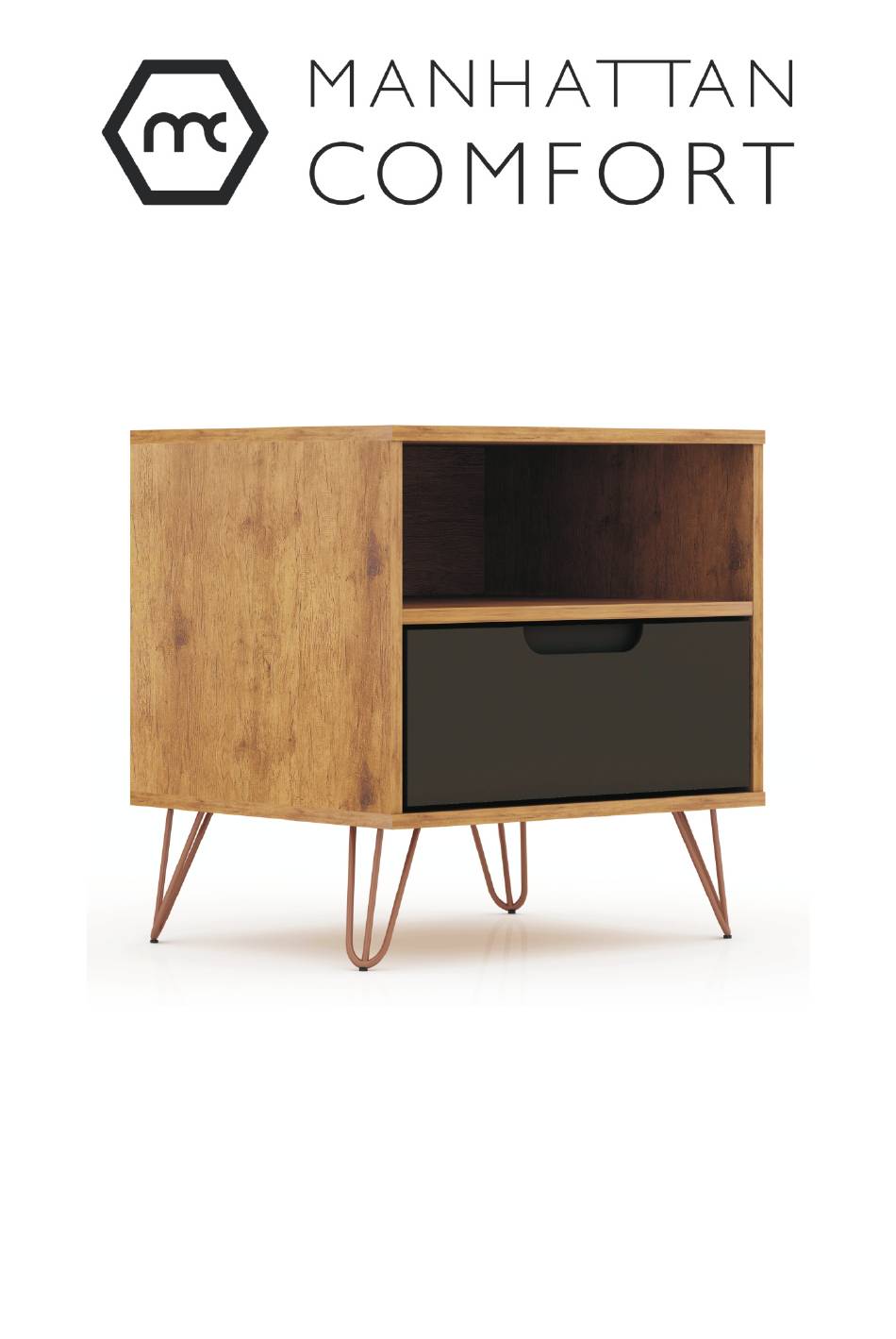

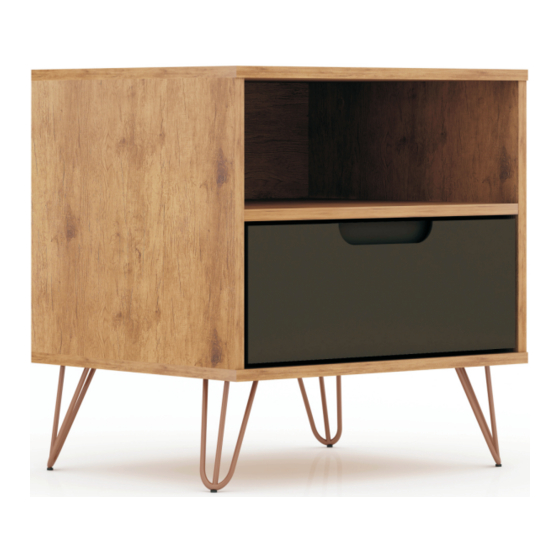

- Page 1 888-230-2225 help@manhattancomfort.com Rockefeller nightstand 01 drawer...
-
Page 2: Included In The Package
Included in the package 01 - Base = 01 piece 02 - Left side panel = 01 piece 03 - Right side panel = 01 piece 04 - Top panel= 01 piece 05 - Back panel = 01 piece 06 - Front of the drawer = 01 piece 07 - Left side panel of the drawer = 01 piece 08 - Right side panel of the drawer = 01 piece 09 - Rear panel of the drawer = 01 piece... -
Page 3: Front View
11 lb 11 lb 11 lb 11 lb Front View Rear View Step 01 Fix the parts (12) under the part (01) with the hardware (A). Rockefeller 03/07 nightstand 01 drawer... - Page 4 Step 02 Connect the part (13) onto the parts (02) and (03) with the hardware (D + E). Apply the hardware (H) on the hardware (E). Step 03 Connect the parts (02) and (03) onto the part (01) with the hardware (C ) and (B). Connect the part (04) onto the parts (02) and (03) using the hardware (C ) and the hardware (D + E).
- Page 5 Step 04 Connect the part (05) with the hardware (G). Step 05 Connect the part (11) onto the part (06) with the hardware (F). Rockefeller 05/07 nightstand 01 drawer...
- Page 6 Step 06 Connect the parts (07), (08) and (09) with the hardware (B). Apply the part (10) in the groove of the parts (07) and (08) until the groove of the part (09). Step 03 Step 07 Connect the parts (07), (08) and (06) using the hardware (D + E).
- Page 7 Step 08 Install the drawer fitting it into the slides fixed on the side of parts (02) and (03). Rockefeller 07/07 nightstand 01 drawer...
