Summary of Contents for Manhattan Comfort Rockefeller

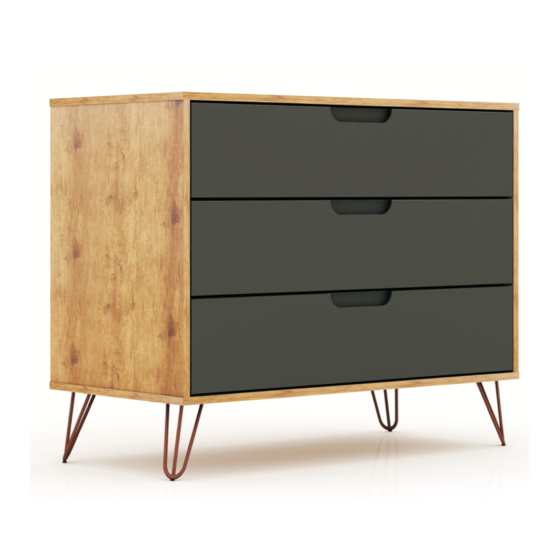

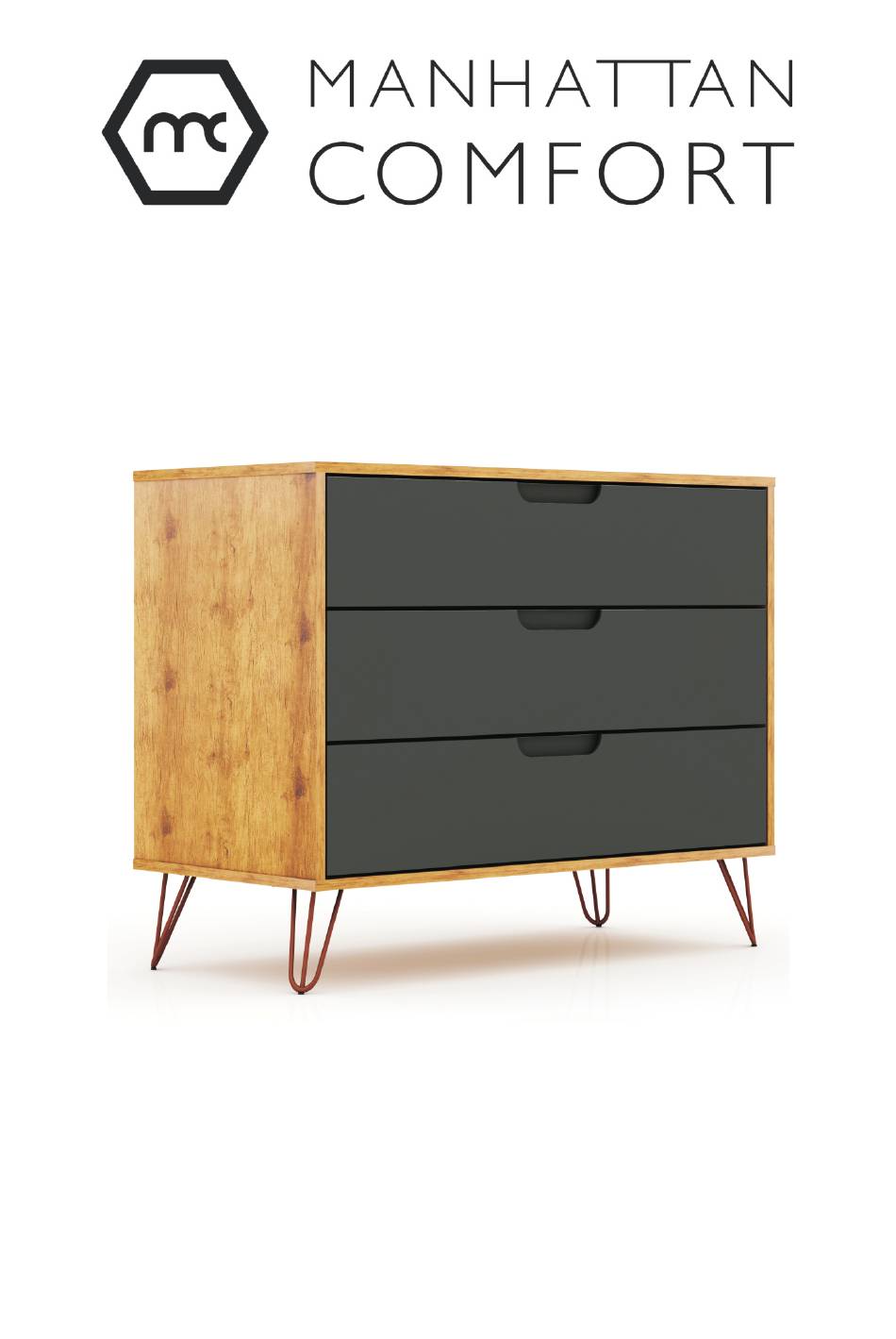

- Page 1 888-230-2225 help@manhattancomfort.com Rockefeller dresser...
-
Page 2: Included In The Package
C = 08x D = 16x E = 16x F = 23x G = 28x J = 01x H = 01x I = 12x K = 01x L = 16x Tools needed Phillips screw driver (not included) Screw driver Rockefeller 02/08 dresser... -
Page 3: Front View
11 lb 11 lb 11 lb 11 lb Front View Rear View Step 01 Fix the parts (12) under the part (01) with the hardware (A). Rockefeller 03/08 dresser... - Page 4 (01) with the hardware (C ) and the hardware (B). Step 03 Connect the part (04) onto the parts (02) and (03) using the hardware (C ) and the hardware (D + E) Apply the hardware (L) on the hardware (E). Rockefeller 04/08 dresser...
- Page 5 Step 04 Connect the part (05) and the part (13) joining with the part (14) and the hardware (G). Step 05 Connect the part (11) onto the part (06) with the hardware (F). Rockefeller 05/08 dresser...
- Page 6 (07) and (08) until the groove of the part (09). Step 03 Step 07 Connect parts (07), (08) and (06) using the hardware (D + E). Apply hardware (L) on the hardware (E). Rockefeller 06/08 dresser...
- Page 7 Step 08 Use the hardware (I) with the hardware (F) as shown on detail. Step 03 Step 09 Install the drawer fitting it into the slides fixed on the side of parts (02) and (03). Rockefeller 07/08 dresser...
- Page 8 *press the hardware wings (J) to put in the hole that you drilled in the wall. wings wings Hardware (J), plugged in the wall. Then fasten with the hardware (F) the hardware (K) on the part (04) Rockefeller 08/08 dresser...
