Manhattan Comfort Rockefeller Quick Start Manual

Manhattan Comfort Rockefeller Quick Start Manual

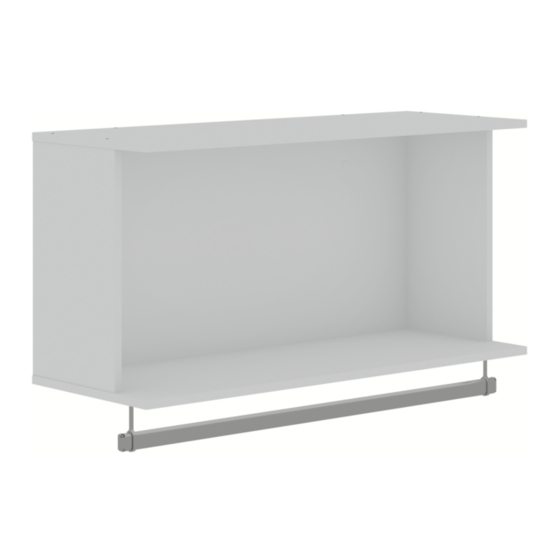

35.24" floating open hanging closet

Advertisement

Quick Links

888-230-2225
help@manhattancomfort.com
319 Ridge Rd. Dayton, NJ 08810, New Jersey - United States
Rockefeller
35.24" Floating Open Hanging Closet

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rockefeller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan Comfort Rockefeller

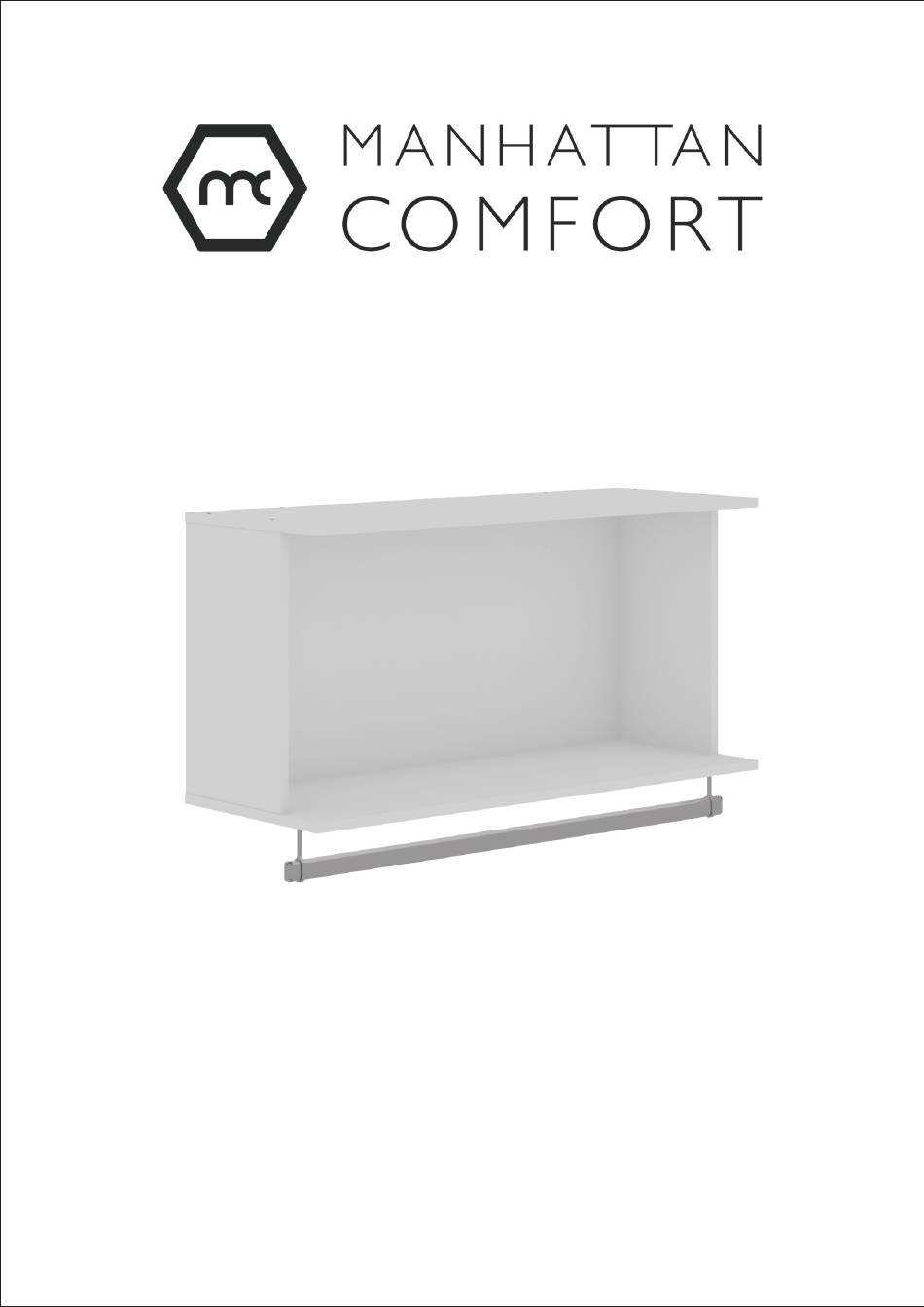

  • Page 1 888-230-2225 help@manhattancomfort.com 319 Ridge Rd. Dayton, NJ 08810, New Jersey - United States Rockefeller 35.24" Floating Open Hanging Closet...
  • Page 2: Included In The Package

    Hanger Bar Hardware A = 08x B = 12x C = 04x D = 02x E = 02x F = 02x G = 01x H = 02x I = 02x Tools needed (not included) 35.24" Floating Open Hanging Closet Rockefeller...
  • Page 3 11 lb 11 lb A = 04x B = 04x Connect the part (01) onto the parts (03) with the hardware (A + B). 35.24" Floating Open Hanging Closet Rockefeller...
  • Page 4 Observe the correct position of the part (04) before connect onto the part (01) with the hardware (B). A = 04x B = 06x Connect the part (02) onto the parts (03, 04) with the hardware (B) and the hardware (A). 35.24" Floating Open Hanging Closet Rockefeller...
  • Page 5 Connect the hardware (F) onto the part (01) using the hardware (C). Connect the hardware (I) into the part (05). G = 01x Pass the part (05) through the hardware (F) and use the hardware (G) to tight the screw as shown on detail. 35.24" Floating Open Hanging Closet Rockefeller...
  • Page 6 You will need a pencil to mark where you should drill the wall with a 1 /2" drill bit to put in the hardware (H). You will need apply the hardware (H) into the hole that you drilled on the wall. 35.24" Floating Open Hanging Closet Rockefeller...
  • Page 7 D = 02x E = 02x Connect the Floating Open Hanging Closet on the wall with the hardware (E + D) 35.24" Floating Open Hanging Closet Rockefeller...
