Table 16. GBAS voltage vs. setpoint
Unit Type
VAV CV
X X
X
X X
X
X S/A Heating Setpoint (VAV Hydro Only)
X X
X Supply Duct Static Pressure Setpoint
Notes:
1. Voltage inputs less than 0.5 will be interpreted as 0.5 vdc.
2. Voltage inputs higher than 4.5 will be interpreted as 4.5 vdc.
(a) The actual inputted value will be displayed on the Human Interface.

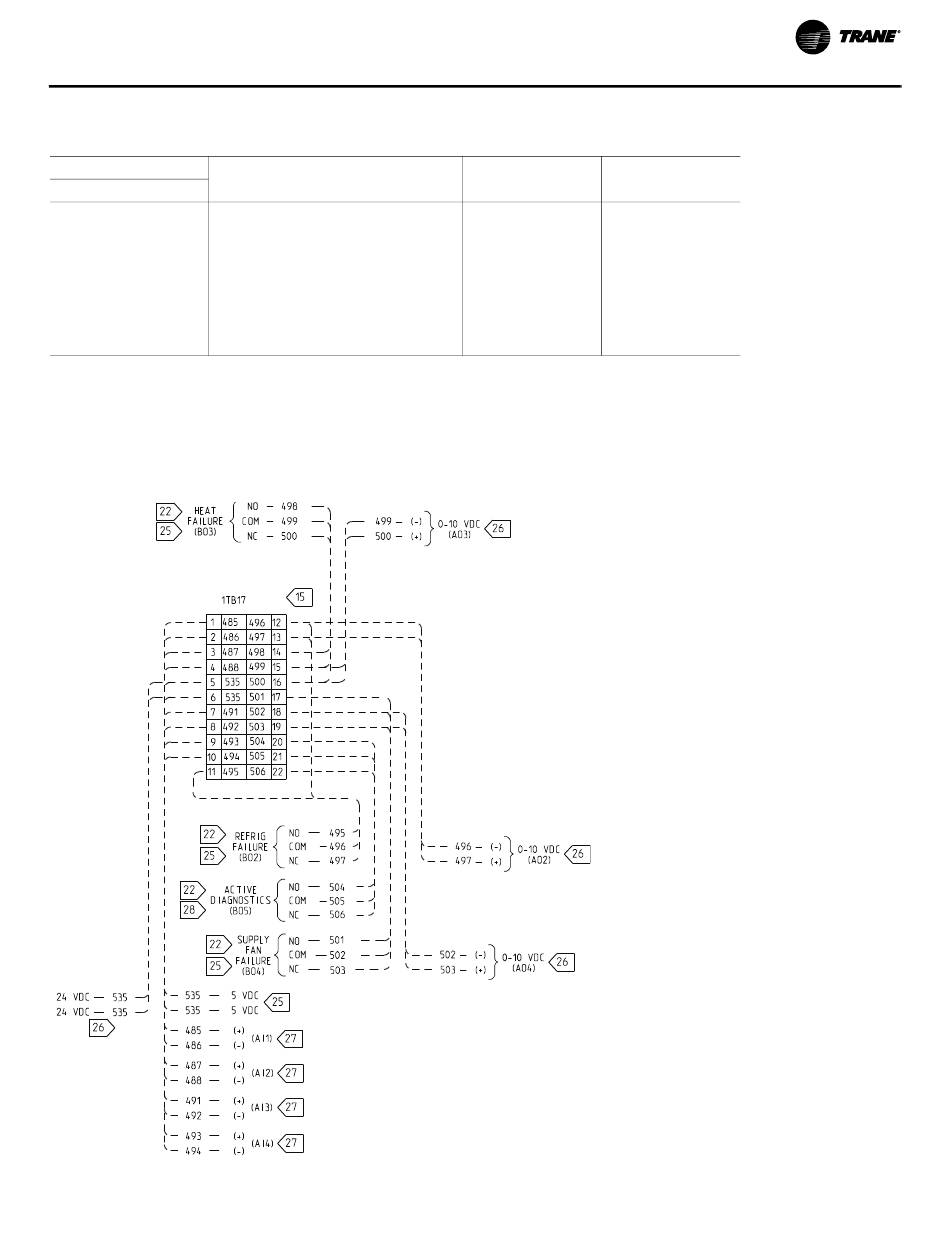

Figure 36. Typical GBAS analog input wiring schematic for W_HE casings 2-9 CV or VAV control options.
Refer to wiring notes on
RT-SVX35H-EN
Setpoint
Unoccupied Zone Cooling Setpoint
Occupied Zone Cooling Setpoint
Occupied Zone Heating Setpoint
S/A Cooling Setpoint
Space Static Pressure Setpoint
Figure 32, p. 56.
(a)
Input Voltage Setpoint Range
0.5 to 4.5 vdc 50°F to 90°F
0.5 to 4.5 vdc 50°F to 90°F
0.5 to 4.5 vdc 50°F to 90°F
0.5 to 4.5 vdc 40° to 90°F
0.5 to 4.5 vdc 40° to 180°F
0.5 to 4.5 vdc 0.03 to 0.3 IWC
0.5 to 4.5 vdc 0.00 to 5.0 IWC
Installation
