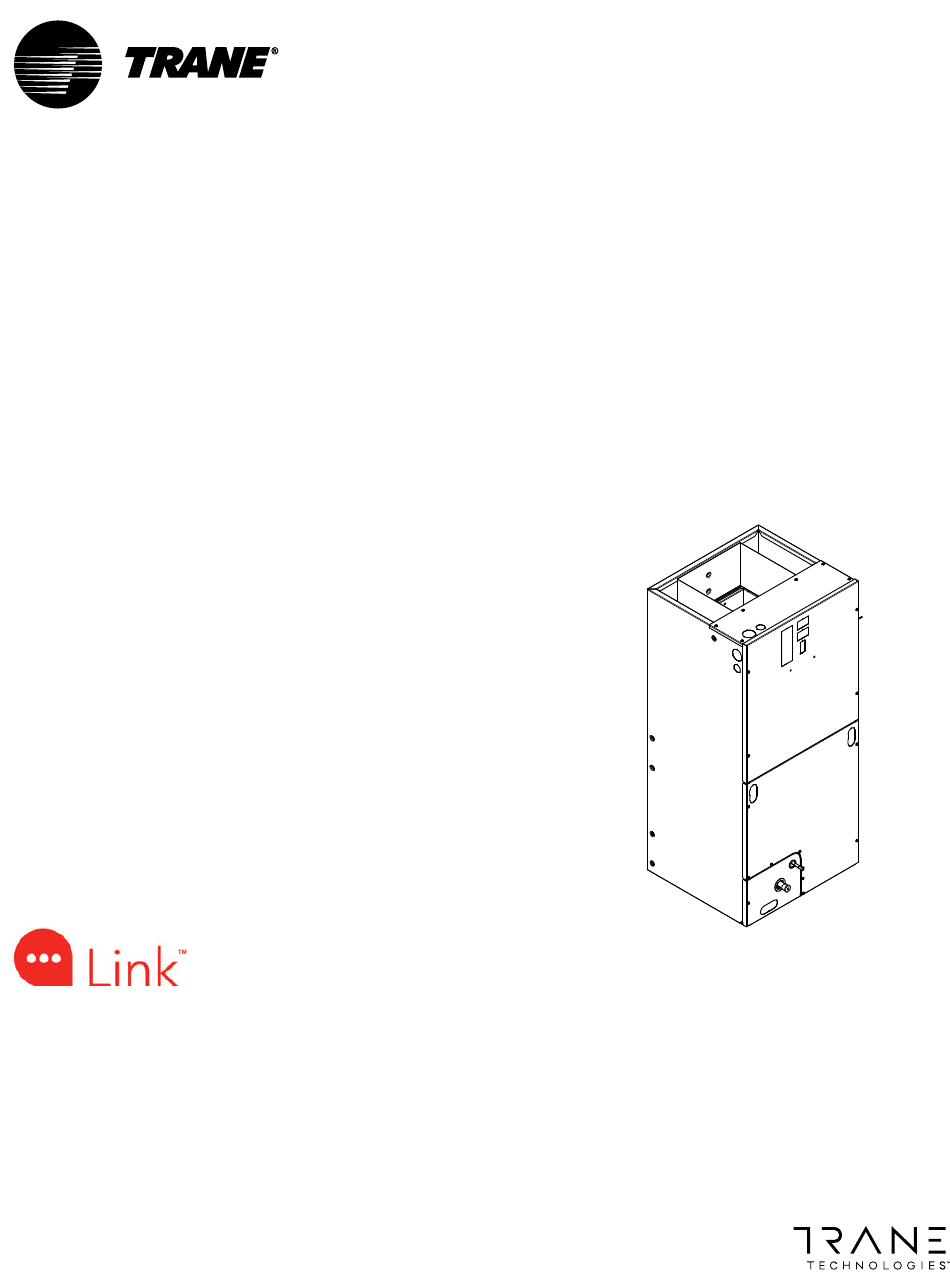

Product Data

Variable Speed Convertible Air Handlers

2 – 5 Ton

5TEMCB02AV21DA

5TEMCB03AV31DA

5TEMCD04AV31DA

5TEMCD05AV41DA

5TEMCD06AV41DA

5TEMCD07AV51DA

The Diagnostics Mobile App is available by scanning a QR

code located inside this unit or by searching for the Link

Diagnostics App in your App Store.

December 2024

2 2 2 2 - - 2 2 0 0 0 0 7 7 - - 1 1 A A - - E E N N

N N o o t t e e : : The 5TEMC series air handler is designed for

installation in a closet, utility room, alcove,

basement, crawlspace or attic. These versatile

units are applicable to air conditioning and heat

pump applications. Several models are available to

meet the specific requirements of the outdoor

equipment. Field installed electric resistance

heaters are available.

N N o o t t e e : : This unit can be used in Link Communicating mode

or 24 volt mode.

N N o o t t e e : : Use Diagnostics App to configure blower delays,

accessories, ect. in 24 volt mode.

Table of Contents

Need help?

Do you have a question about the 5TEMCB02AV21DA and is the answer not in the manual?

Questions and answers

Summary of Contents for Trane 5TEMCB02AV21DA

Page 1 Product Data Variable Speed Convertible Air Handlers 2 – 5 Ton 5TEMCB02AV21DA 5TEMCB03AV31DA 5TEMCD04AV31DA 5TEMCD05AV41DA 5TEMCD06AV41DA 5TEMCD07AV51DA N N o o t t e e : : The 5TEMC series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic.
Page 2: Table Of Contents
Table of Contents Features and Benefits............3 Optional Equipment.
Page 3: Features And Benefits
Features and Benefits • Link™ Communicating or 24V control • Painted metal cabinet with captured foil face insulation • 2% or less air leakage • R-4.2 Insulating Value • Multi-Position UP/Down Flow, Horizontal Left /Right • ALL Aluminum Coil • Electric Heaters with polarized plug connections (sold as accessory) •...
Page 4: Optional Equipment
F F e e a a t t u u r r e e s s a a n n d d B B e e n n e e f f i i t t s s Optional Equipment Accessory Number Description Fits Cabinet Size...
Page 5: Product Specifications
Product Specifications MODEL 5TEMCB02AV21DA 5TEMCB03AV31DA 5TEMCD04AV31DA R-454B Variable Speed Air R-454B Variable Speed Air R-454B Variable Speed Air Family Description Handler Handler Handler R-454B Variable Speed Air R-454B Variable Speed Air R-454B Variable Speed Air Handler, All-Aluminum Plate Fin Handler, All-Aluminum Plate Fin...
Page 6 P P r r o o d d u u c c t t S S p p e e c c i i f f i i c c a a t t i i o o n n s s MODEL 5TEMCD05AV41DA 5TEMCD06AV41DA...
Page 7: Heater Pressure Drop Table
Heater Pressure Drop Table Number of Racks Heater Racks Airflow Heater Model No. of Racks Air Pressure Drop — Inches W.G. BAYHTR1504 1800 0.02 0.04 0.06 0.14 BAYHTR1505 1700 0.02 0.04 0.06 0.14 BAYHTR1508 1600 0.02 0.04 0.06 0.13 BAYHTR1510 1500 0.02 0.04...
Page 8: Performance Data
Performance Data 22-2007-1A-EN...
Page 9 P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a 22-2007-1A-EN...
Page 10 P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a 22-2007-1A-EN...
Page 11 P P e e r r f f o o r r m m a a n n c c e e D D a a t t a a 22-2007-1A-EN...
Page 12: Electrical Data
Electrical Data Note: Heater size needs to be set in Configuration Menu. Table 1. Electrical Data 5TEMCB02AV21DA HEATER DATA 240 Volt 208 Volt No. of Minimum Minimum Heater Maximum Heater Maximum Capacity Capacity Heater Model No. Circuits/ Circuit Circuit Amps per...
Page 13 E E l l e e c c t t r r i i c c a a l l D D a a t t a a Table 3. Electrical Data 5TEMCD04AV31DA HEATER DATA 5TEMCD05AV41DA HEATER DATA 240 Volt 208 Volt No.
Page 14: Minimum Airflow Cfm
Minimum Airflow CFM 5TEMCB02AV21DA, 5TEMCB03AV31DA Heater Minimum Heater Airflow CFM With Heat Pump Without Heat Pump BAYHTR1504+++, BAYHTR1505+++ BAYHTR1508+++, BAYHTR1510+++ BAYHTR1517BRK, BAYHTR3517LUG 1000 BAYHTR3510LUG 5TEMCD04AV31DA, 5TEMCD05AV41DA Heater Minimum Heater Airflow CFM With Heat Pump Without Heat Pump BAYHTR1504+++, BAYHTR1505+++ BAYHTR1508+++, BAYHTR1510+++, BAYHTR1517BRK, BAYHTR3510LUG...
Page 15: Wiring Diagram
Wiring Diagram 22-2007-1A-EN...
Page 16: Field Wiring
Field Wiring 5TEMC can be used in either Link Communicating mode or 24 volt mode. In Link Communicating mode, all configurations are made by using the configuration menu in the User Interface (UX360) or from the Diagnostic Mobile App. In 24 volt mode, basic operation is configured from the factory with no defaults for accessories.
Page 17 3rd party condensate switch should break the Y1-in circuit between the thermostat and AHC. Y2-out connections at outdoor unit only required for two stage units and should be capped off when not in use. Only needed for heat pump operation. X2 is necessary if not using select Trane or American Standard thermostats. 22-2007-1A-EN...
Page 18 3rd party condensate switch should break the Y1-in circuit between the thermostat and AHC. X2 is necessary if not using select Trane or American Standard thermostats. For single speed operation, use Y1-out and cap off Y2-out wire.
Page 19 F F i i e e l l d d W W i i r r i i n n g g Table 7. External Switches and Accessories Use stripped wire connections in control box when connecting a humidifier, external switch, or other accessory to the air handler. Ext Switch 1 Black Wires External condensate, Smoke Detector...
Page 20 F F i i e e l l d d W W i i r r i i n n g g Figure 3. Accessories Diagram Electronic Air Cleaner, typical Thermostat Air Handler 24 VAC HOT ACC1a ACCESSORY INTERLOCK 1A ACCESSORY INTERLOCK 1B ACC1b AUDIBLE ALARM OUT A...
Page 21: Tem Convertibility
TEM Convertibility Figure 4. Multi-Position Air Handler * = No Internal Modifications Required. Refrigerant Downflow Connections Condensate Drains Upflow Condensate Drains Vertical Upflow* Vertical Downflow Airflow Airflow Horizontal Left Horizontal Right Refrigerant Condensate Condensate Connections Drains Drains Horizontal Left* Horizontal Right 22-2007-1A-EN...
Page 22: Air Handler Dimensional Data
Air Handler Dimensional Data Model No. 5TEMCB02AV21DA 46.77 18.50 21.08 5TEMCB03AV31DA 46.77 18.50 21.08 5TEMCD04AV31DA 51.27 23.50 21.08 5TEMCD05AV41DA 51.27 23.50 21.08 5TEMCD06AV41DA 57.40 23.50 21.08 5TEMCD07AV51DA 57.40 23.50 21.08 22-2007-1A-EN...
Page 23: Outline Drawing
Outline Drawing Minimum Unit Clearance Table Service Clearance Recommended Sides 2" Front 21" Back 0" Inlet Duct 1" Outlet Duct Note This unit is approved for installation clearances to combustible material as stated on the unit rating nameplate. Dwg No. D808390 Rev A PRODUCT DIMENSIONS Flow Gas Line...
Page 24 For more information, please visit trane. com or tranetechnologies.com. Trane has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
