Trane IntelliPak WEHE Series Installation, Operation And Maintenance Manual page 40

Commercial rooftop air handlers with cv, vav, or szvav controls
Hide thumbs
Table of Contents

Advertisement

Installation

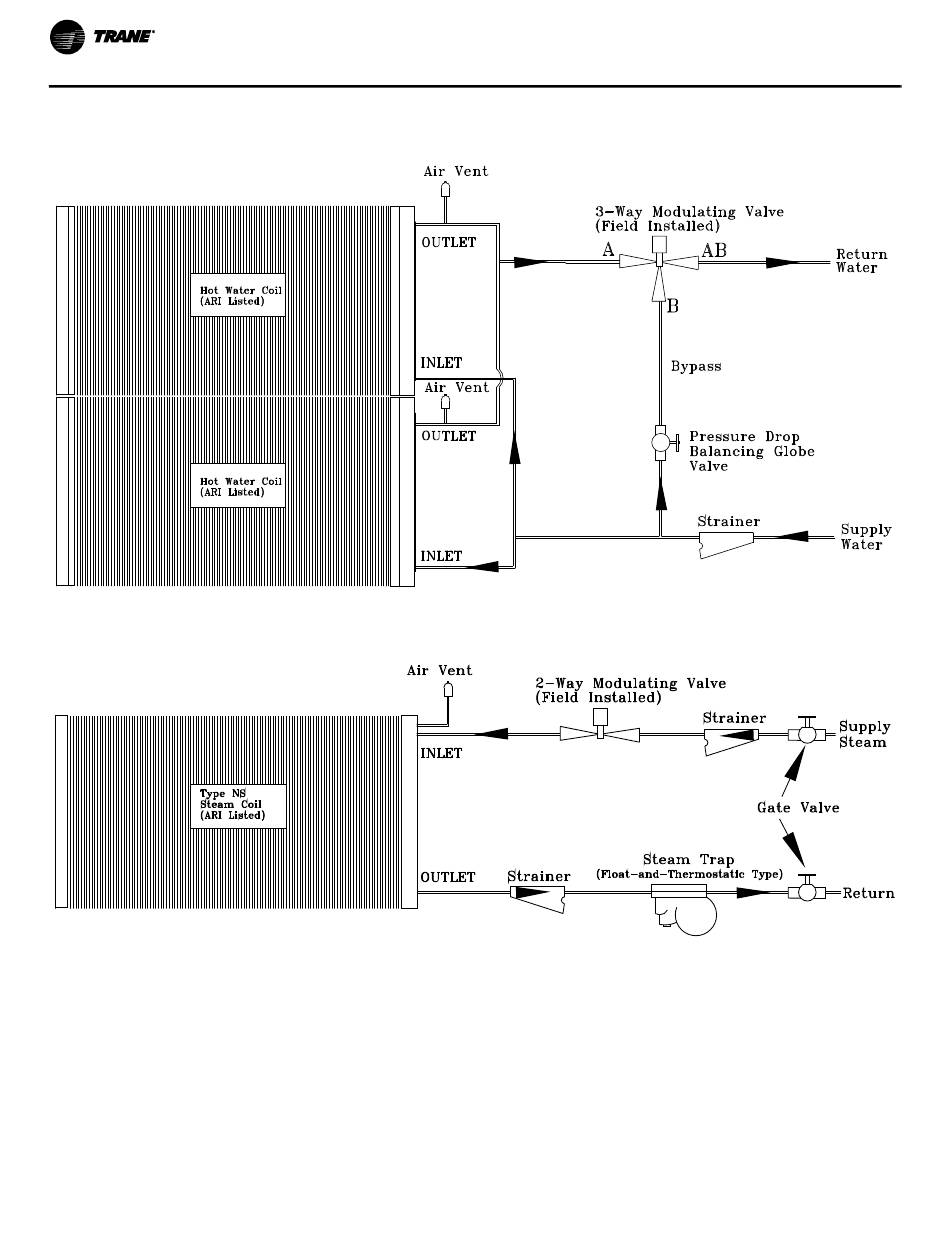

Figure 23. Hot water piping configuration for W_HE casing 9
Figure 24. Steam coil piping configuration for W_HE casings 2&3
40
RT-SVX35H-EN
