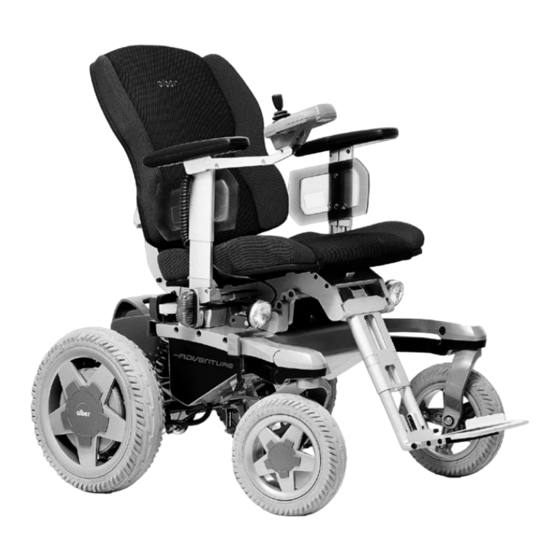

Alber Adventure A10 Technical Documentation Manual

Hide thumbs Also See for Adventure A10:
Table of Contents

Advertisement

Quick Links

Ulrich Alber GmbH
Vor dem Weißen Stein 21
D-72461 Albstadt-Tailfingen
Telefon (07432) 2006-0
Telefax (07432) 2006-279
eMail
info@alber.de
home
www.alber.de
All manuals and user guides at all-guides.com
50.0025.2.99.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adventure A10 and is the answer not in the manual?

Questions and answers

Related Manuals for Alber Adventure A10

Summary of Contents for Alber Adventure A10

  • Page 1 All manuals and user guides at all-guides.com Ulrich Alber GmbH Vor dem Weißen Stein 21 D-72461 Albstadt-Tailfingen Telefon (07432) 2006-0 Telefax (07432) 2006-279 eMail info@alber.de home www.alber.de 50.0025.2.99.01...
  • Page 2 All manuals and user guides at all-guides.com Technische Dokumentation Technical Documentation Adventure A10...
  • Page 3 All manuals and user guides at all-guides.com...

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com Inhaltsverzeichnis Content Adventure A10 Werkzeuge Tools Bediengerät Control unit Akku-Pack Battery 7-11 Beleuchtung Lighting equipment 12-17 Radauswurf Wheel ejector 18-19 Akkuverriegelung Battery locking mechanism 20-21 Schnittstelle Interface 22-23 Federung Suspension 24-28 Schwinge Rocker...

  • Page 5: Werkzeuge Tools

    All manuals and user guides at all-guides.com Werkzeuge Tools Adventure A10 Bei allen Arbeiten an elektronischen Teilen ESD-Schutzmaßnahmen beachten When working at electronic components, the ESD-protective measures must be observed Pos. Benennung naming Kapitel chapter Art. Nr. order no. Endmontageplatz...

  • Page 6: Bediengerät Control Unit

    All manuals and user guides at all-guides.com Bediengerät Control unit Adventure A10 Bei allen Arbeiten an elektronischen Teilen ESD-Schutzmaßnahmen beachten When working at electronic components, the ESD-protective measures must be observed Bei Montage mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2)
  • Page 7 All manuals and user guides at all-guides.com Bediengerät Control unit Adventure A10 Anbau des externen E/A Schalters Mounting of the external On/Off switch...

  • Page 8: Akku-Pack Battery

    All manuals and user guides at all-guides.com Akku-Pack Battery Adventure A10 Vor Beginn der Montagearbeiten Sicherungen am Akku-Pack entfernen Remove battery fuses before mounting Bei Demontage abschneiden Cut when dismounting...
  • Page 9 All manuals and user guides at all-guides.com Akku-Pack Battery Adventure A10 Kabel vorsichtig in Stützblech einlegen Insert the cables carefully into the support plate Schwarz Black Sicherung 2 V / , A Fuse 2 V / . A Schwarz Black...
  • Page 10 All manuals and user guides at all-guides.com Akku-Pack Battery Adventure A10...
  • Page 11 All manuals and user guides at all-guides.com Akku-Pack Battery Adventure A10 Sicherung 2 V / 0 A Fuse 2 V / 0 A...
  • Page 12 All manuals and user guides at all-guides.com Akku-Pack Battery Adventure A10 Sofern notwendig If necessary...
  • Page 13 All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Vorderlicht Front light Austauschen Change Wiederverwenden Use again...
  • Page 14 All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Blinker Direction indicator light Die Kabellitzen dürfen die Glühlampen nicht berühren Do not permit contact between the lacing of the cables and the bulbs Bei Montage mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2)
  • Page 15 All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Rücklicht Rear light Austauschen Change Wiederverwenden Use again Wiederverwenden Use again...

  • Page 16: Beleuchtung Lighting Equipment

    All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Rückstrahler Reflector...
  • Page 17 All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Verkabelung Wiring Bei Montage mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Mounting: Fix with adhesive (WEICON AN 02- / LOCTITE 2)
  • Page 18 All manuals and user guides at all-guides.com Beleuchtung Lighting equipment Adventure A10 Kabelanschlüsse Connecting of the cables Vorderlicht: Kabel weiß und braun Front light: cables white and brown Rücklicht: Kabel grün und gelb Rear light: cables green and yellow Blinker: Kabel rosa und grau (Kabel verbinden)

  • Page 19: Radauswurf Wheel Ejector

    All manuals and user guides at all-guides.com Radauswurf Wheel ejector Adventure A10 Zur Montage die Alber-Vorrichtungen verwenden! Use the Alber device when mounting! Schwarz Black Schwarz Black...
  • Page 20 All manuals and user guides at all-guides.com Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2) Teil einfetten Lubricate with grease Montagevorrichtung verwenden Use mounting fixture...

  • Page 21: Akkuverriegelung Battery Locking Mechanism

    All manuals and user guides at all-guides.com Akkuverriegelung Battery locking mechanism Adventure A10 Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2)
  • Page 22 All manuals and user guides at all-guides.com...

  • Page 23: Schnittstelle Interface

    All manuals and user guides at all-guides.com Schnittstelle Interface Adventure A10...
  • Page 24 All manuals and user guides at all-guides.com Langes Kabel nach Long cable to Kurzes Kabel nach Short cable to...

  • Page 25: Federung Suspension

    All manuals and user guides at all-guides.com Federung Suspension Adventure A10 Austausch einzelner Elemente Change of single parts...
  • Page 26 All manuals and user guides at all-guides.com Federung Suspension Adventure A10 Austausch der gesamten Feder Change of the whole spring...
  • Page 27 All manuals and user guides at all-guides.com Federung Suspension Adventure A10 Austausch der vorderen Elemente Change of the front suspension...
  • Page 28 All manuals and user guides at all-guides.com Federung Suspension Adventure A10 Die Justierung der Feder erfolgt ohne angebautes Rad in entlastetem Zustand Adjusting the springing with removed wheel, spring unstressed Justierung der hinteren Federn bei Adventure-Rollstühlen mit langer und kurzer Wheelbase...
  • Page 29 All manuals and user guides at all-guides.com Federung Suspension Adventure A10 Justierung der vorderen Federn bei Adventure-Rollstühlen mit langer und kurzer Wheelbase Adjusting the front springing, Adventure wheelchairs with long and short wheelbase Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) vor Einstellen der Federn auftragen...

  • Page 30: Schwinge Rocker

    All manuals and user guides at all-guides.com Schwinge Rocker Adventure A10...
  • Page 31 All manuals and user guides at all-guides.com Schwinge Rocker Adventure A10...
  • Page 32 All manuals and user guides at all-guides.com Schwinge Rocker Adventure A10...
  • Page 33 All manuals and user guides at all-guides.com Bremse Brake Adventure A10 Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2) Teil einfetten Lubricae with grease...

  • Page 34: Bremse Brake

    All manuals and user guides at all-guides.com Bremse Brake Adventure A10...
  • Page 35 All manuals and user guides at all-guides.com Bremse Brake Adventure A10 Austausch Bowdenzug Change of the bowden wire...
  • Page 36 All manuals and user guides at all-guides.com Bremse Brake Adventure A10 Austausch Bowdenzug Change of the bowden wire...
  • Page 37 All manuals and user guides at all-guides.com Bremse Brake Adventure A10 Austausch Bowdenzug Change of the bowden wire Justierungen bei Montage Adjustments when mounting fluchtend zu aligned with...

  • Page 38: Lenkrad Steering Wheel

    All manuals and user guides at all-guides.com Lenkrad Steering wheel Adventure A10 Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2) Luftdruck: 2, bar Air pressure: 2. bar...

  • Page 39: Radfelge Wheel Rim

    All manuals and user guides at all-guides.com Radfelge Wheel rim Adventure A10 Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2)
  • Page 40 All manuals and user guides at all-guides.com Radfelge Wheel rim Adventure A10 Luftdruck: 2, bar Air pressure: 2. bar...

  • Page 41: Beinstütze Leg Support

    All manuals and user guides at all-guides.com Beinstütze Leg support Adventure A10...
  • Page 42 All manuals and user guides at all-guides.com Sitz Seat Adventure A10...
  • Page 43 All manuals and user guides at all-guides.com Sitz Seat Adventure A10 Übersicht Overview...

  • Page 44: Sitz Seat

    All manuals and user guides at all-guides.com Sitz Seat Adventure A10...
  • Page 45 All manuals and user guides at all-guides.com Sitz Seat Adventure A10...
  • Page 46 All manuals and user guides at all-guides.com...

  • Page 47: Schwenkarm Swivel Arm

    All manuals and user guides at all-guides.com Schwenkarm Swivel arm Adventure A10 Mit Klebstoff sichern (WEICON AN 02- / LOCTITE 2) Fix with adhesive (WEICON AN 02- / LOCTITE 2)
  • Page 48 All manuals and user guides at all-guides.com Schwenkarm Swivel arm Adventure A10...
