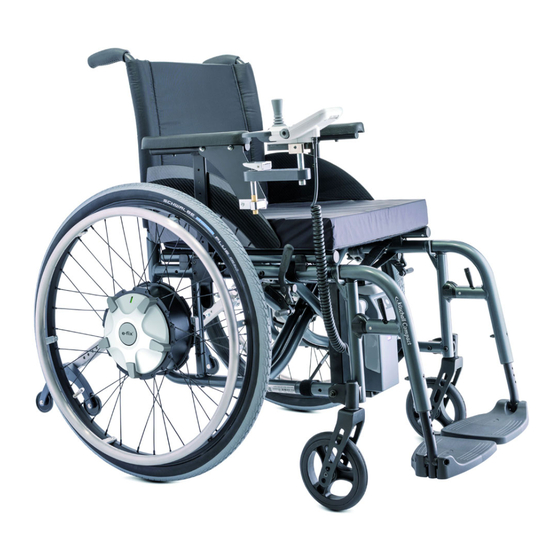

Summary of Contents for Alber e-fix
- Page 1 KLEIN. LEICHT. WENDIG. Elektrischer Zusatzantrieb Gebrauchsanweisung User manual GB/US Instructions d’utilisation Manual de instrucciones Istruzioni per l‘uso Brugsvejledning Gebruiksaanwijzing Bruksanvisning Instruktionsbok...
- Page 2 Service Center (Deutschland) Montag bis Donnerstag von 8.00 – 18.00 Uhr Freitags von 8.00 – 16.00 Uhr erreichbar unter Telefon (0800) 9096-250 (gebührenfrei) Der e-fix ist klassifiziert als Gerät der Anwendungsklasse B nach EN 12184...
-
Page 4: Table Of Contents
Overview of coupling ring Overview of the most important elements Please open the overview diagram in the front cover) Wheel/Plates Release cover Coupling ring Quick release axle Plug Wheel mount Torque plug Battery pack Release cover in the middle of the wheel Battery pack Battery bag is pressed in and “X”... - Page 5 6.4 Dangerous ground and dangerous situations 6.5 Hazard warnings Driving 7.1 Driving with manual wheelchair wheels 7.2 Driving with e-fix wheels in manual operation 7.3 Driving with e-fix wheels in electrically powered operation 7.4 Range 7.5 Storage and transport Care, maintenance and disposal 8.1 Cleaning 8.2 Maintenance...
-
Page 6: Introduction
As a matter of fact, you will instantly realize just how easy and effortless it is to use the e-fix when your Alber distributor teaches you step by step the practical handling of it. This instruction session is part of the Alber service and free of charge. -
Page 7: Quick Release Axle
Important safety instructions - Please observe them closely! In the interest of your safety, the e-fix may only be operated by people who: · have been taught how to use the e-fix · are physically and mentally capable to use the e-fix in all possible situations of employment The instruction session is part of the delivery package. -
Page 8: Technical Data
1.2 Technical data - e-fix (version max. 120 kg) Range with 12 Ah battery pack: approx. 16 km (***) Range with 22 Ah battery pack (*): approx. 30 km (***) Max. speed: 6 km/h Max. climbing capability: 20 % with 120 kg load (observe the... -
Page 9: Wheel Mount
· Repeat all steps for mounting the e-fix wheel on the right side. As both e-fix wheels are identical, they can be used not only on the left but also on the right side of your wheelchair. -
Page 10: Battery Pack
2.2 Remove wheels The e-fix wheels can be removed for transportation and the wheelchair can be folded. Proceed as follows: · Switch off the e-fix on the control unit. · Press the release cover [1] of the wheel and simultaneously turn the coupling ring [2] counter clockwise as far as it will go. -
Page 11: Interface
· Fold the velcro fastener of the battery pack as illustrated in the drawing, inserting the interface [15] into it. Never use a battery pack other than the one checked and provided by Alber. The use of other battery packs can cause damage to the electronics or result in the mal-... -
Page 12: Plug
3.3 Charge battery pack on wheelchair Recharge the battery pack after using the e-fix for a longer period of time. It is un- necessary to remove the battery pack for this purpose. · Insert the charger plug [17] into the charging socket [11]. -
Page 13: Control Unit
4.2 Removal of the control unit for transport · Deactivate the e-fix by pressing the power button [19] - the display is no longer illuminated [20]. · Remove the plug [21] from the control unit. Pull the plug and not the cable! ·... -
Page 14: Power Button
· The backlight of the display goes off 30 seconds after switching on the e-fix. · If the control unit is switched on but the e-fix is not being used, it switches off auto- matically after 1 hour. The shut-off period can be adjusted according to your requirements by a dealer for medical accessories (see Chapter 4.2.6). -
Page 15: Adjusting Dial Switch
1.5 km/h and 6 km/h. The set value (maximum 99) is indicated as a percentage via a 2-digit display. Wheelchair drivers who use the e-fix for the first time, should begin at a low speed (see also Chapter 6.2). 4.4.4 Horn In order to signalize a dangerous situation, the horn can be activated via the button [24]. -
Page 16: Joystick
Basically all of the wheelchair driver‘s control commands are directed to the e-fix wheels by the joystick. That‘s why driving the e-fix takes some practice. Please use the lowest speed when you drive the e-fix the first couple of times. -
Page 17: Adjustments
The middle position of the joystick remains without function, i.e. the wheels do not move and are blocked by the integrated brakes. However, if the e-fix is at a standstill on slopes of more than 10 % you have to tighten the parking brakes of your wheelchair. These must additionally be mounted to the frame of the wheelchair by an authorized dealer. -
Page 18: Mount
· Swivel the control unit to one side (see chapter 4.7). · Insert the plug [21] into the control unit [18] (see chapter 4.3). The swivel arm can be attached to virtually all wheelchair models. Contact your dealer or Alber representative for further details. -
Page 19: Anti-Tippers
As most standard wheelchairs are already equipped with anti-tippers, Alber anti-tippers are offered as accessories. Should your e-fix also include the Alber anti-tippers , these have already been adjusted to your wheelchair before leaving the factory and only have to be attached as described below. -
Page 20: Operation
Your Alber representative assists you with a free of charge training session when you use the e-fix for the first time. He helps you until you feel secure using your e-fix. -
Page 21: Further Suggestions On Driving With The E-Fix
Taking into account his driving skills and physical abilities, the e-fix driver decides for himself which routes he will travel. Prior to setting off he must check the e-fix for worn or damaged tires, as well as the state of charge of the battery pack. These safety checks, as... -
Page 22: Hazard Warnings
Gradients or slopes of max. 20 % can be negotiated with the e-fix without an attendant. The basic prerequisites being, excellent tire profiles, correct air pressure in the tires, safe terrain and a maximum person’s weight of 120 kg. With a maximum person’s weight of 160 kg (optional reinforced drive wheels) gradients or slopes of... -
Page 23: Driving
7. Driving 7.1 Driving with manual wheelchair wheels In chapter 2 you learned how to mount the e-fix wheels to and remove them from your wheelchair. So you have the choice to use the conventional wheels that are manually propelled or the electrically powered e-fix wheels. -
Page 24: Range
7.4 Range For every user of the e-fix, one of the most interesting questions is the range of the system. It can generally be assumed that a range of approx. 16 km can be reached with the standard battery pack (12 Ah), and a range of approx. 30 km with the 17 Ah battery pack. -
Page 25: Maintenance
For this purpose, contact directly your authorized Alber dealer. Service and repairs on the e-fix may only be carried out by authorized dealers. In case of defects, please contact your dealer. 8.3 Recycling This device, its battery pack and accessories are long-lasting products. - Page 26 CAUSE DISPLAY DESCRIPTION REMEDY No communication with the special control. Exclamation mark symbol flashes Contact your special dealer or Alber Letter “E” flashes representative. Exclamation mark symbol flashes No communication with the intuitive attendant Contact your special dealer or Alber Letter “S”...
-
Page 27: Wheelchair
· If the e-fix is ready for operation, deactivate the system by pressing the power button on the control unit (see Chapter 4.2). -
Page 28: Warranty And Liability
11. Warranty and liability 11.1 Warranty The time of warranty for the e-fix amounts to 24 months (12 months for the batteries) from the date of purchase, and covers faulty material and processing defects. The warranty does not include: · natural wear and tear ·... -
Page 29: Ce-Conformity
In addition, the following points have to be taken into consideration: · Assembly and repairs as well as any other work done on the e-fix must be carried out by Ulrich Alber GmbH or any other personnel authorized by Ulrich Alber GmbH. -
Page 30: User Manual Intuitive Attendant Controller
13. User manual Intuitive Attendant Controller The intuitive attendant controller takes over the entire control of the e-fix and may only be used by the person accompanying the wheelchair user. Under no circumstances should the wheelchair user operate the attendant controller by himself or herself. Installation of the individual components is to be done either by Alber or a specialist dealer. - Page 31 13.5. Information on the panic stop If it is necessary to stop the e-fix at once in hazardous situations, just pull the control lever [9] firmly beyond the detent that can be clearly felt. This immediately switches off the e-fix and an acoustic warning signal is given in addition.
-
Page 32: User Manual Opti-Box
Speed-Stop-Limit switch is pressed for the first time, the speed is reduced to 50% of the maximum speed. If the switch is closed, the e-fix continues to travel at the maximum speed. Your specialist dealer can make a change in the reduced speed. - Page 33 Ihre Alber-Vertretung / Your Alber representative / Votre représentation Alber / Vostra rappresentanza Alber / Su representación Alber / Din Alber representant / Din Alber-agenturene / Uw distributeur Alber / Deres Alber-repræsentation Ulrich Alber GmbH Vor dem Weißen Stein 21...
