Homestyles 5523-88 Assembly Instructions

Homestyles 5523-88 Assembly Instructions

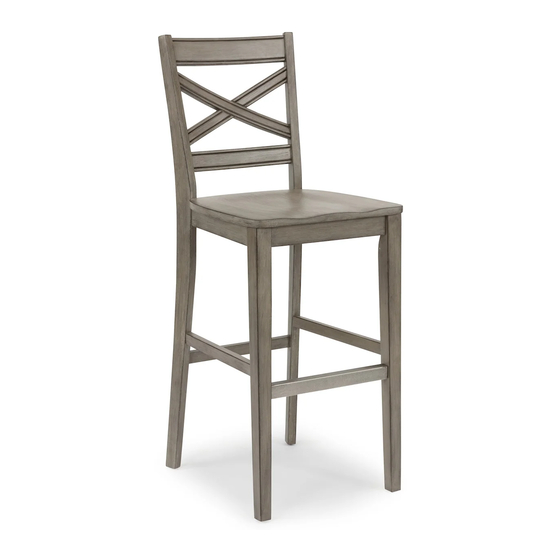

Bar stool

Advertisement

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

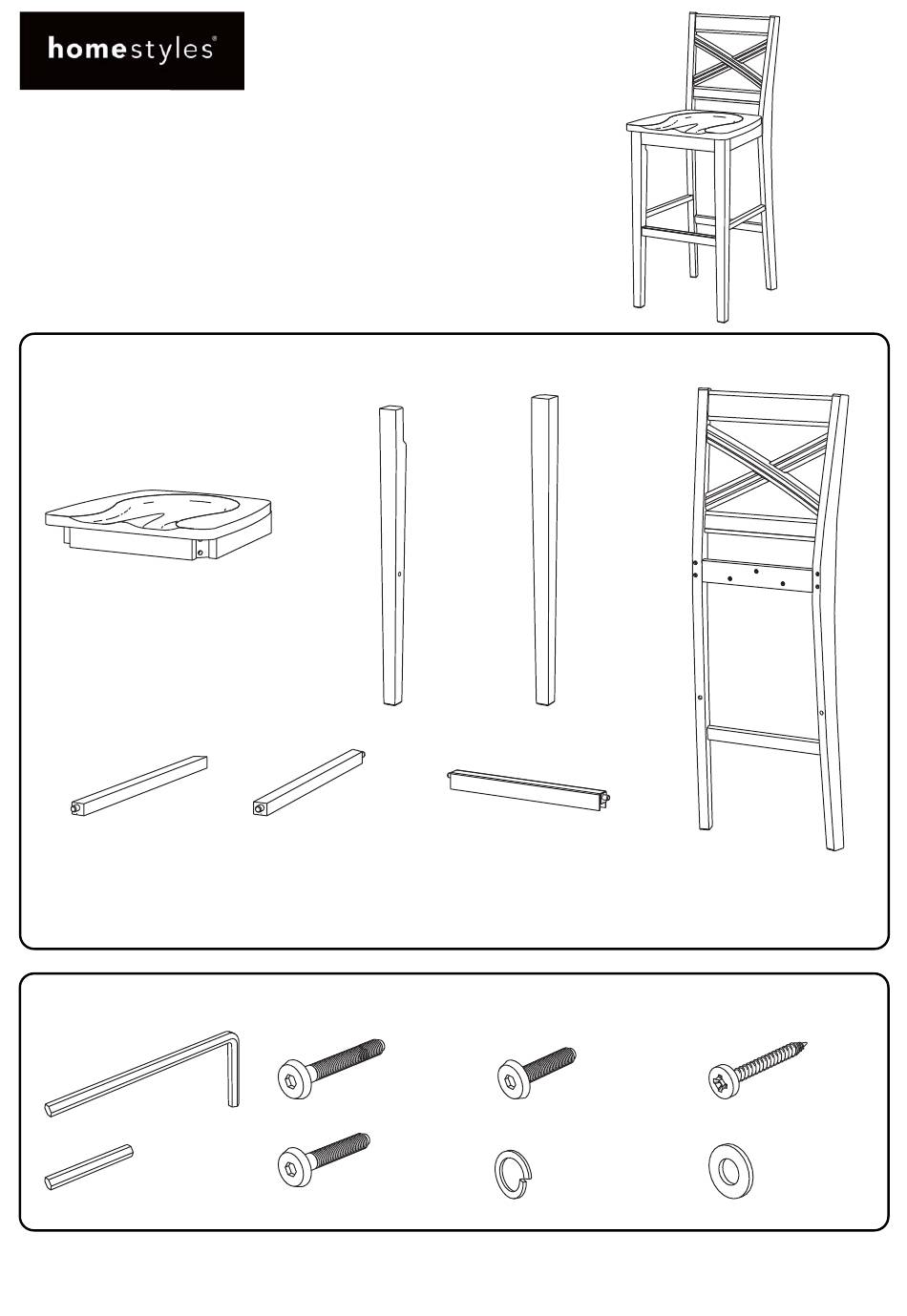

Part List

A.
Seat
1 pc.
E.
Side Stretcher
1 pc.

Hardware List

Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
5523-88
Bar Stool
F.
Side Stretcher
1 pc.
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
C.
Leg
Leg
1 pc.
1 pc.
G.
Front Stretcher
1 pc.
M6x35
Head Cap Bolt (short)
3 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
888-680-7460
D.
Back Frame
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
Flat Washer
11 pcs. (+1 extra)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5523-88 and is the answer not in the manual?

Questions and answers

Summary of Contents for Homestyles 5523-88

  • Page 1 5523-88 Bar Stool IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
  • Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench in a safe place as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/3 Wood Screw Head Cap Bolt (short) Head Cap Bolt (long) Spring Washer Spring Washer Flat Washer Flat Washer STEP 2 Attach Back Frame (D) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short), Head Cap Bolts (long) and Wood Screws, tightening bolts only halfway. (See Figures 4 and 5) Tighten all Head Cap Bolts used in Steps 1 and 2.
  • Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
