Homestyles 5530-49 Assembly Instructions Manual

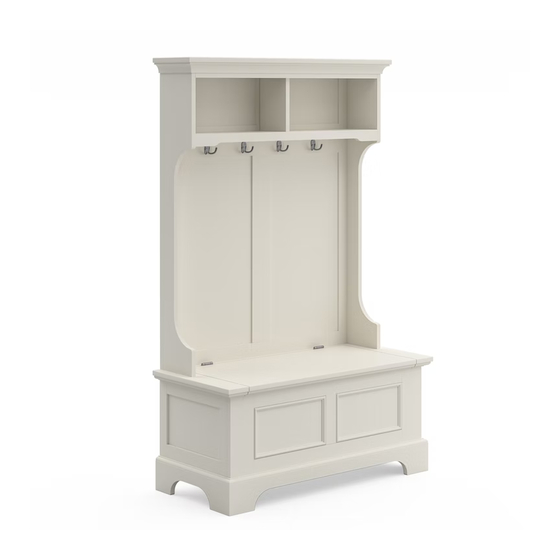

Hall tree stand
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
I.
Base
1 pc.
J.
Shelf
1 pc.
N.
Front Rail
1 pc.
P.
Arm
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
home
5530-49
Hall Tree Stand
B.
Side Panel
1 pc.
S.
Side Panel
1 pc.
Q.
Arm
1 pc.
M6x25
M6x28
Head Cap Bolt
Head Cap Bolt (long)
6 pcs. (+1 extra)
8 pcs. (+1 extra)
M3x16
M3x16
Wood Screw
Wood Screw for Hook
34 pcs. (+1 extra)
8 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
D.
Side Panel
Front Panel
1 pc.
1 pc.
E.
Plinth
1 pc.
K.
Top
1 pc.
T.
O.
Side Panel
Back Rail
1 pc.
2 pcs.
R.
Divider
1 pc.
Dowel
2 pcs. (+1 extra)
M5x32
Wood Screw for Arm
4 pcs. (+1 extra)
X.
Back Panel
1 pc.
L.
Upright
1 pc.
V.
Upright
1 pc.
Cam Lock Screw
24 pcs. (+1 extra)
Cam Lock
24 pcs. (+6 extra)
888-680-7460
M.
Back Panel
2 pcs.
W.
Back Panel
2 pcs.
U.
Back Rail
1 pc.
Hook
4 pcs.
Spring Support
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5530-49 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles 5530-49

Summary of Contents for Homestyles 5530-49

  • Page 1 5530-49 Hall Tree Stand IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
  • Page 2 Assembly Instructions 2/11 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/11 STEP 2 Head Cap Bolt Attach Front Panel (D) to Plinth (E) with Head Cap Bolts. (See Figure 2) Figure 2 Head Cap Bolt Cam Lock STEP 3 Attach Front Panel (D) and Back Panel (X) to Side Panel (B) with Cam Locks and Head Cap Bolt.
  • Page 4 Assembly Instructions 4/11 STEP 4 Attach Side Panel (C) to unit with Head Cap Bolt (short) Cam Locks and Head Cap Bolt (short). Cam Lock Wood Screw Figure 4 STEP 5 Insert Base (I) into unit, then attach Base (I) to unit with Wood Screws.
  • Page 5 Assembly Instructions / 5 11 STEP 6 Wood Screw Attach Spring Supports to Seat (A) by inserting Wood Screws into Spring Support pre-drilled holes, then tighten. (See Figure 5) Figure 5 Head Cap Bolt (long) STEP 7 Attach Seat (A) to unit with Head Cap Bolts (long), tightening bolts only halfway.
  • Page 6 Assembly Instructions / 6 11 STEP 8 Attach Hooks to Back Rail (U) with Wood Screws for Hook. (See Figure 6) Wood Screw for Hook Hook Figure 6 Cam Lock STEP 9 Attach Back Rail (U) to Side Panel (S) with Cam Lock. Slide Back Panels (M) and (W) into position.
  • Page 7 Assembly Instructions / 7 11 STEP 10 Upright Attach s (L) and (V) to unit. Attach Back Rails (O) to unit with Cam Locks. Cam Lock Cam Lock STEP 11 Attach Shelf (J) and Front Rail (N) to unit with Cam Locks. Slide Back Panels (M) and (W) into position.
  • Page 8 Assembly Instructions / 8 11 Cam Lock STEP 12 Attach Side Panel (T) to unit with Cam Locks. Wood Screw for Arm Dowel STEP 13 Attach Arms (P) and (Q) to unit with Dowels and Wood Screws for Arm.
  • Page 9 Assembly Instructions / 9 11 Cam Lock Head Cap Bolt (long) STEP 14 Attach unit from Step 13 to unit from Step 7 with Head Cap Bolts (long). Attach Divider (R) to unit. Attach Top (K) to unit with Cam Locks.
  • Page 10 Assembly Instructions 10 11 STEP 15 Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 7) Insert Wood Screws into pre-drilled holes in unit, then tighten. Note: Unit must be level before tightening these screws. Figure 7 Wood Screw STEP 16 Align Seat (A) so that Seat (A) is...

  • Page 11: Hardware List

    Assembly Instructions 11 11 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 17 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
  • Page 12 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
