IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
B.
Side Stretcher
2 pcs.
C.
Center Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
551 -80
9

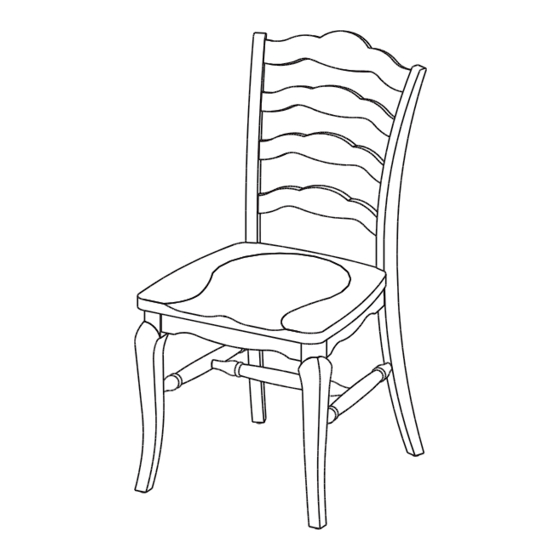

Chair
D.
Leg
1 pc.
Flat Washer
11 pcs. (+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
E.
Leg
1 pc.
Spring Washer
11 pcs. (+1 extra)
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460
F.
Back Frame
1 pc.
M3.5x 0
3
Wood Screw
4 pcs. (+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 551 -80 9
Summary of Contents for Homestyles 551 -80 9
- Page 1 551 -80 Chair IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 Head Cap Bolt (long) Spring Washer Wood Screw Flat Washer Head Cap Bolt (short) Spring Washer Flat Washer STEP 2 Attach Back Frame ( ) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short) and Head Cap Bolts (long), tightening bolts only halfway.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
