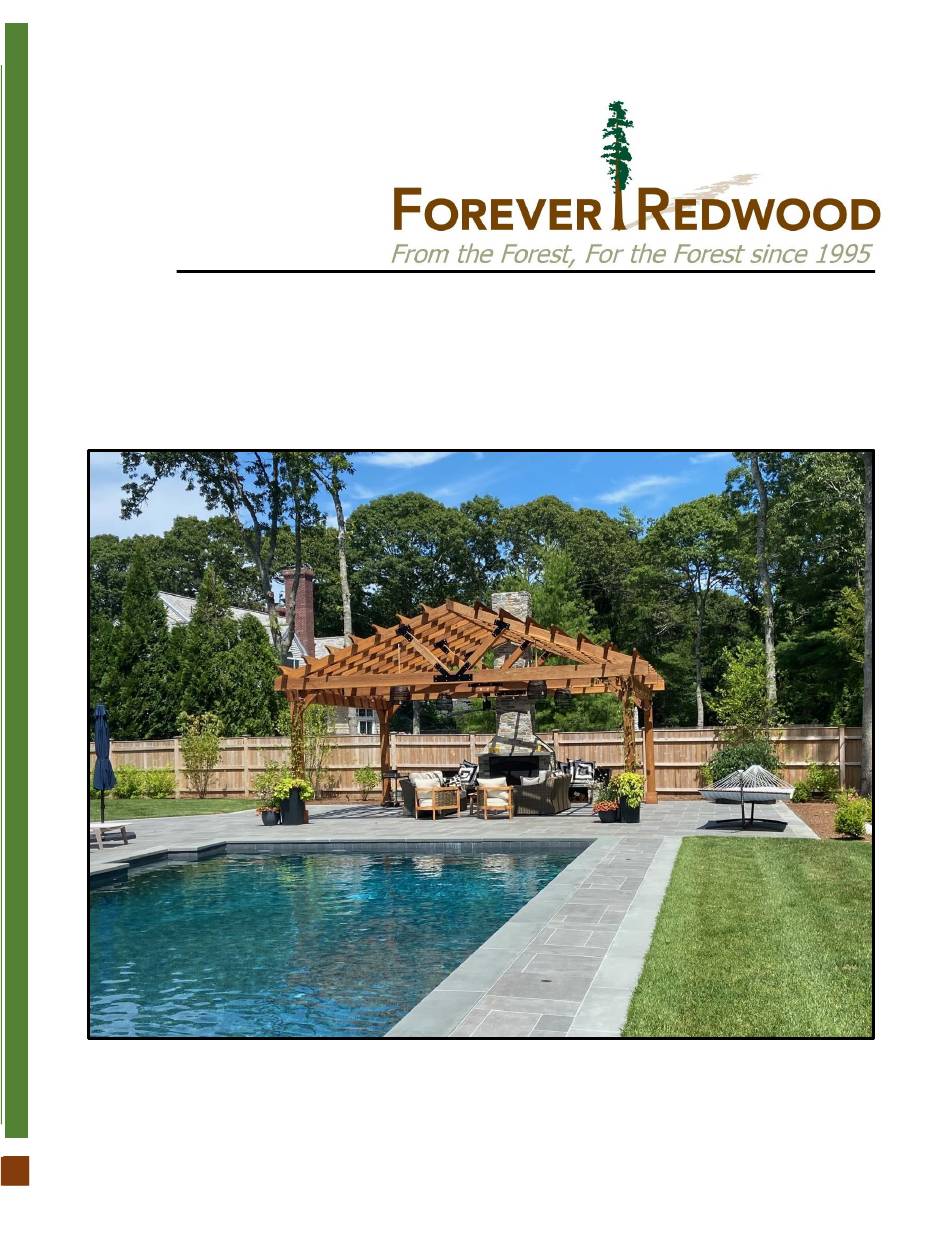

- Page 1 866.332.2403 (TOLL FREE) (707) 640.29.05 (Option 4) Direct Line for the Design Department; 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE THE GABLE PERGOLA P| 0 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 2 Insert the carriage bolts into the holes and lightly tap with a hammer until the square neck fit in the wood piece and the bolt head must flush with the wood piece. Finally, place the washer and the nut and carefully tighten it using a ratchet with the necessary socket or a wrench. P| 1 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 3 Place the washers in their lag bolts. After that, insert the lag bolts into the holes and carefully tighten it using a ratchet with the necessary socket. Use the washers only for the Wood Pieces. To install the deck screws. Insert the deck screws into the holes and carefully tighten it using a drill. P| 2 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 4 Qty. Posts Single Supports Support In-Between Blocking Main Knee Braces Top In-Between Blocking Roof Trusses Tie Beam Strus Secondary Knee Braces Ridge Beam. Rafter Supports Rafters Secondary Rafters Purlins Ceiling Fan Boots Anchor Bases P| 3 THE GABLE PERGOLA www.ForeverRedwood.com...
-
Page 5: Hardware List
3/8” x 1 ½” Lag Bolts 3/8” x 8” Bolts 3/8” x 12” Bolts 3/8” x 7” Bolts 3/8” x 11” Bolts 3” Deck Screws 4” Deck Screws Note: Dimensions of your hardware will vary depending on size. P| 4 THE GABLE PERGOLA www.ForeverRedwood.com... - Page 6 Support In-Between Blockings Main Knee Braces Top In-Between Blocking Roof Trusses Tie Beam Struts Secondary Knee Braces Ridge Beam Support Rafters Rafters Secondary Rafters Purlins Ceiling Fan Boots Anchor Bases Metal Plaque -A Metal Plaque -B P| 5 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 7 Note: Part numbers in the Drawing are for reference only. These do not match to the numbers marked on the parts sent. P| 6 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 8 Step 2: Attach the single supports (2) to the posts (1) with 3/8” x 8” bolts (BL1). Check the marked numbers on each single support and place as drawings shown. Note: Don’t completely tighten yet the bolts – you will need the install the supports with in between blocking first. Must be flush with the posts. P| 7 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 9 2 and tighten fully. Check the marked numbers on each support with in-between blocking and place as drawings shown. Note: put silicone in joints of the supports with in-between blocking. Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8” x 8” bolts (BL1). P| 8 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 10 (BL2). Check the marked numbers on each main knee brace and place as drawings shown. Step 6: Attach the top in-between blocking (5) to the supports in-between blocking (2,3) with 3” deck screws (DS1). Check the marked numbers on each top and place as drawings shown P| 9 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 11 Step 7: Attach the Plaques in the Flower (16) to the lateral tie beams (6.1) with 3/8” x 1 ½” lag bolts (LB4) and to the struts (6.2). Step 8: Attach the Plaques in the Flower (16) to the central tie beam (6.1) with 3/8” x 1 ½” lag bolts (LB4) and to the struts (6.2). P| 10 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 12 Step 10: Attach the secondary knee brace (7) to the roof truss (6) with 3/8” x 7” bolts (BL3) and use 3/8” x 12” bolts (BL2) to attach the secondary knee brace (7) to the posts (1). Check the marked numbers on each secondary knee brace and place as drawings shown. P| 11 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 13 Step 12: Use 3/8” x 3” lag bolts (LB2) to attach the roof truss (6) to the metal plaques -B (17). Check the marked numbers on each roof truss and place as drawings shown. P| 12 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 14 Step 14: Attach the rafter (10) to the ridge beam (8) with 4” deck screws (DS2) and to the support rafters (9) with 3” deck screws (DS1). Check the marked numbers on each rafter and place as drawings shown P| 13 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 15 Step 16: Attach the ceiling fan (13) to the roof truss (6) with 3/8” x 11” bolts (BL4). Check the marked numbers on each ceiling fan and place as drawings shown. P| 14 THE GABLE PERGOLA www.ForeverRedwood.com...
- Page 16 This completes the Gable Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you.
