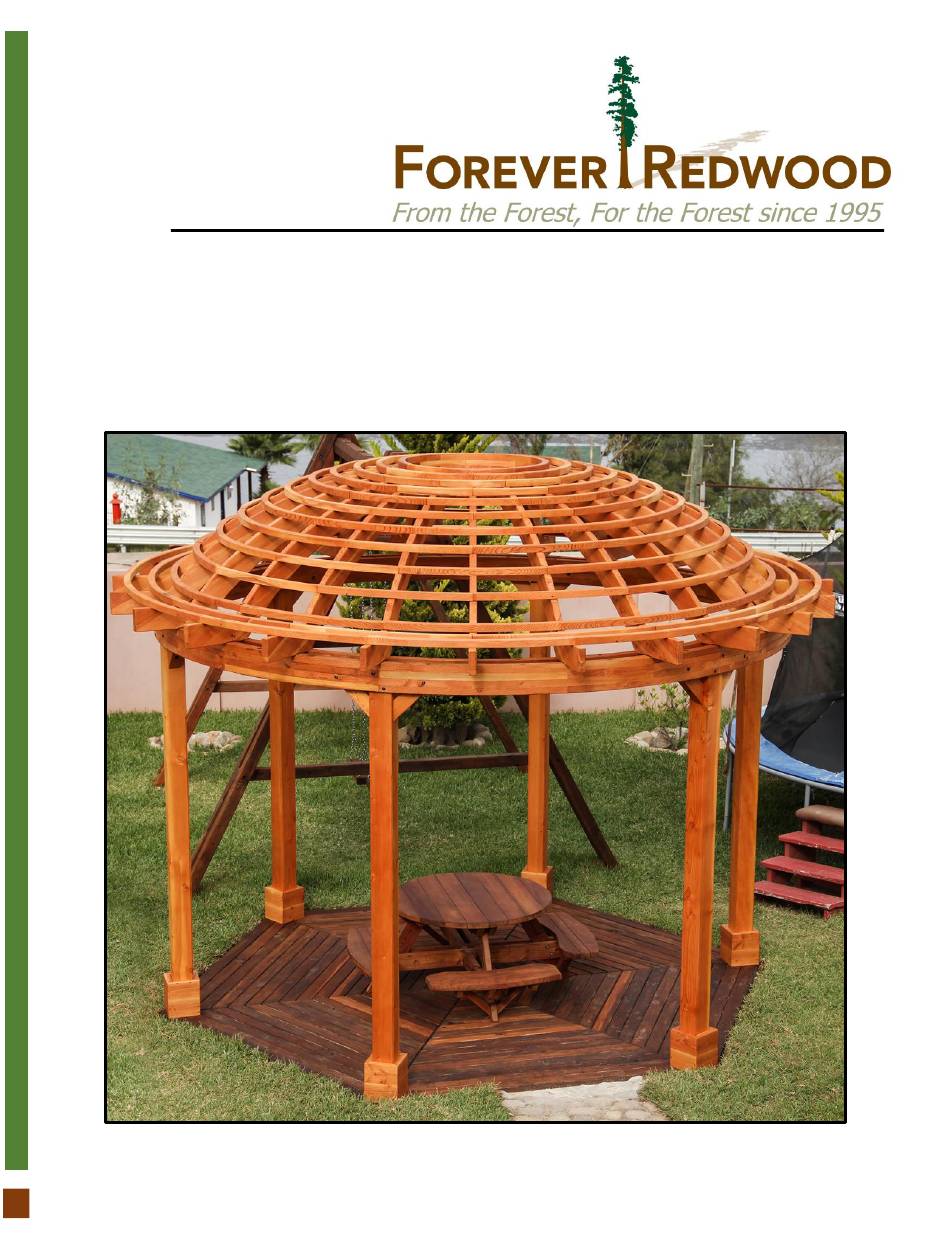

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE WOODEN DOME PERGOLA...
- Page 2 P| 1 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 3 P| 2 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 4 P| 3 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 5 After that, use a 5/16´´ X 3´´ lag bolts (B) to attach each post (1) to its respective anchor base (9). 5/16´´ X 3´´ Lag Bolts P| 4 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 6 3/8´´ X 7 ½´´ bolts (D) (with washers and nuts). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ½´´ Bolts 3/8´´ X 8 ½´´ Bolts P| 5 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 7 (C). The supports with in-between blocking (3), will be attached together with 3/8´´ X 7 ½´´ bolts (D) (with washers and nuts). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ½´´ Bolts P| 6 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 8 8 ½´´ bolts (C) (with washers and nuts). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 16´´ Bolts 3/8´´ X 8 ½´´ Bolts P| 7 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 9 (G) (with washers) to attach the rafters (6) to the second frame (5). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Lag Bolts 3/8´´ X 8´´ Lag Bolts P| 8 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 10 Note: Use a ladder or scaffolding, to facilitate installation of the second frame and rafters. Ladder Scaffold P| 9 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 11 Step 7: Use 3´´ deck screws (H) to attach the slats (7) to the rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 10 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 12 Step 8: Finally, attach the boots (8) to the posts with 8´´ x 3´´ deck screws (H). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 11 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 13 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 12 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 14 Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolts support. P| 13 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
- Page 15 Step 3: The bolt of the post and the brace must be flush with the post. Bolt. Step 4: Swing the brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 1 3 THE WOODEN DOME PERGOLA www.ForeverRedwood.com...
