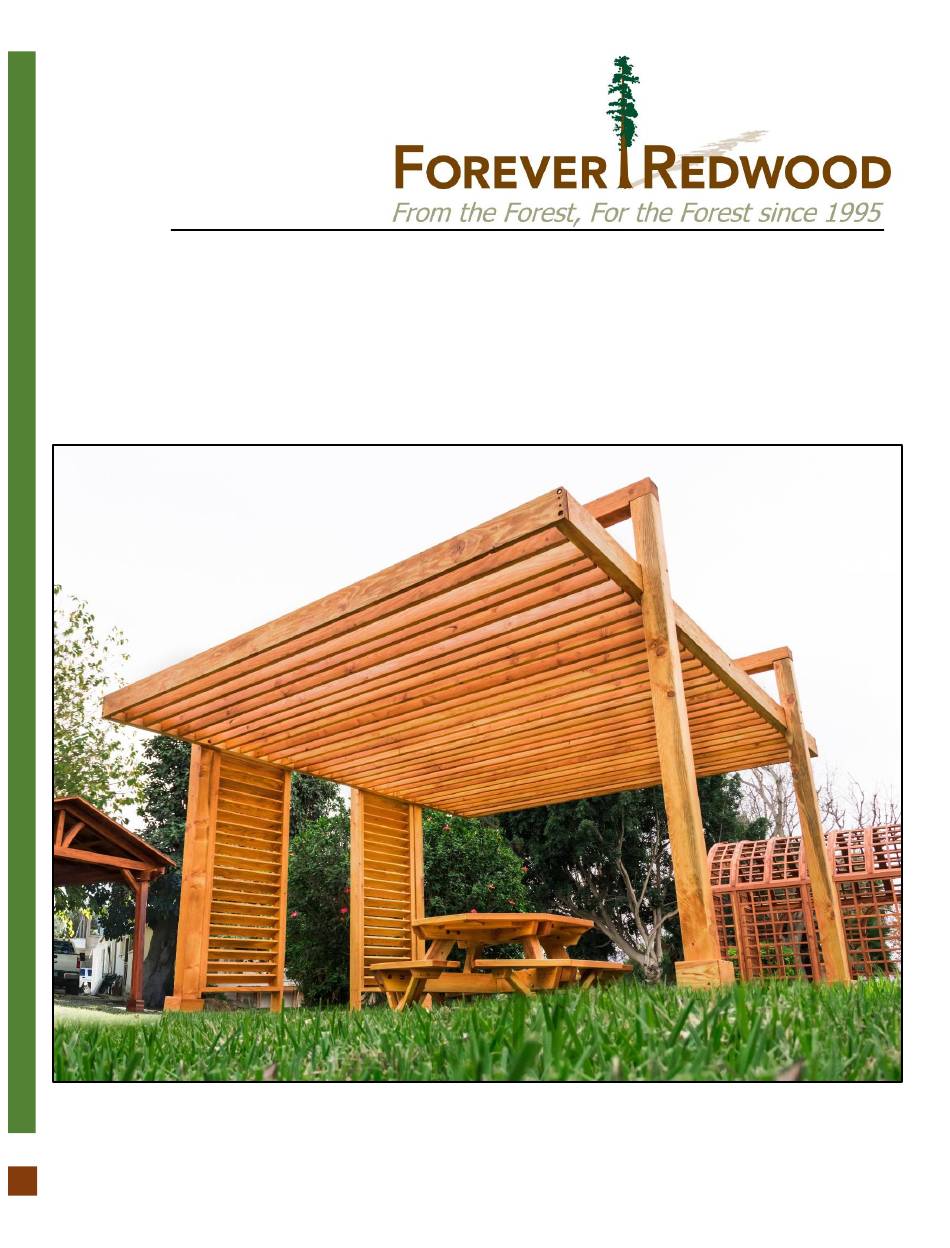

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE L.A. MODERN PERGOLA...
- Page 2 P| 1 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 3 P| 2 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 4 P| 3 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 5 P| 4 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 6 Step 2: Attach the Supports-A (2) to the posts, use 3/8´´ x 6´´ bolts (C) & 3/8´´ x 8´´ bolts (D) with washers (K) and nuts (L). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Bolt 3/8´´ X 8´´ Bolt P| 5 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 7 Step 4: Attach the rafters (5) to the Supports-A with 4´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 4´´ Deck Screws P| 6 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 8 Step 6: Attach the supports-C (4) to the posts, use 3/8´´ x 8´´ lag bolts (H) with washers (K). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´X 8´´ Lag bolts P| 7 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 9 Step 8: Attach the louvered panels (6) to the posts and to the supports-A, use 5/16´´ x 6´´ lag bolts (I) with washers (K). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ x 6´´ Lag Bolts 5/16´´ x 6´´ Lag Bolts P| 8 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 10 Step 9: Finally, use 3´´ deck screws (J) to attach the boots (7) to the post. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 9 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
- Page 11 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 10 THE L.A. MODERN PERGOLA www.ForeverRedwood.com...
