Front Runner LALD007 Quick Start Manual

Front Runner LALD007 Quick Start Manual

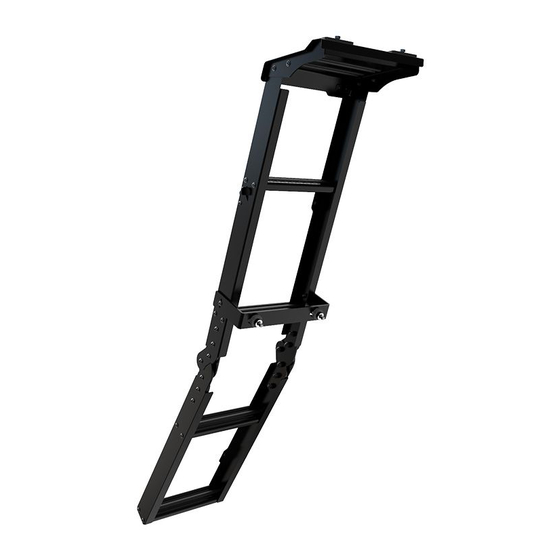

Land rover defender (2020 current) side mount ladder

Advertisement

front runner
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
LALD007_REV_A00
LAND ROVER DEFENDER (2020-CURRENT)
SIDE MOUNT LADDER
Thank you for purchasing Front Runner Land Rover Defender (2020-Current) Side Mount Ladder.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
Please call us if you have any questions about the installation of this product.
READ ME !
1
LALD007
© 2021 FRONT RUNNER VEHICLE OUTFITTERS
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LALD007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Front Runner LALD007

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 2 M10 Spring Washer M10 x 40 Hex Bolt M10 Nut Cap Plastic Spacer 6mm M8 x 25 Hex Bolt M8 x 16 x 1.6 Flat Washer M8 Nyloc Nut M8 Nut Cap FIGURE 1.1 LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 M6 x 12 x 1 Flat Washers and M6 Nyloc Nuts ( Items 7, 8 & 9 ) as shown, Fully Tighten. 10mm Place M6 Nut Caps ( Item 11 ) on all Nyloc Nuts. LALD007_REV_A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 4 From the bottom of the Plastic Trim, measure and mark to get the Centres. Markings: 1 - 20mm Drill 2 pilot holes using the marks you made ( Fig 2.4 & 2.5 ) with a 6mm Drill bitt. LALD007_REV _A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 Plastic Trim ( Fig 2.6 ) to 20mm. 20mm Hole Remove Sealing Patch that is located behind the plastic trim shown in Fig 2.7. LALD007_REV _A00 © 2021 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 6 T-Slot for adjustment. Depending on what Front Runner Rack mounting system is used the spacer position will vary Spacer Position: Front Runner Foot Rails , spacer as shown. OEM Tracks , one Spacer centered 2.12 Secure your Land Rover Defender Side...
  • Page 7 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam Share your adventures on: ©...
