Front Runner LALD006 Manual

Front Runner LALD006 Manual

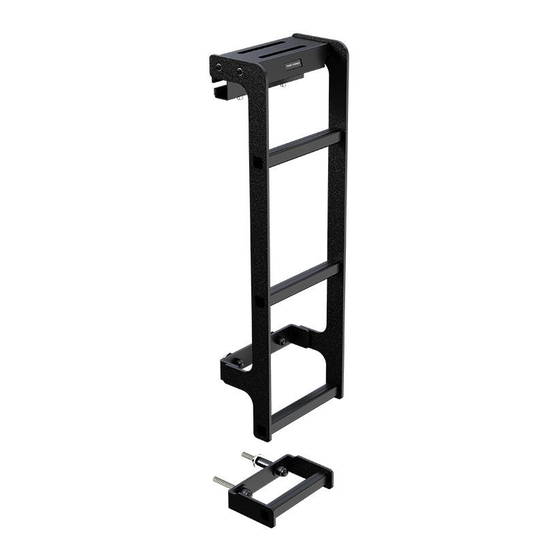

Land rover defender 90 / 110 ladder

Advertisement

Quick Links

ENG

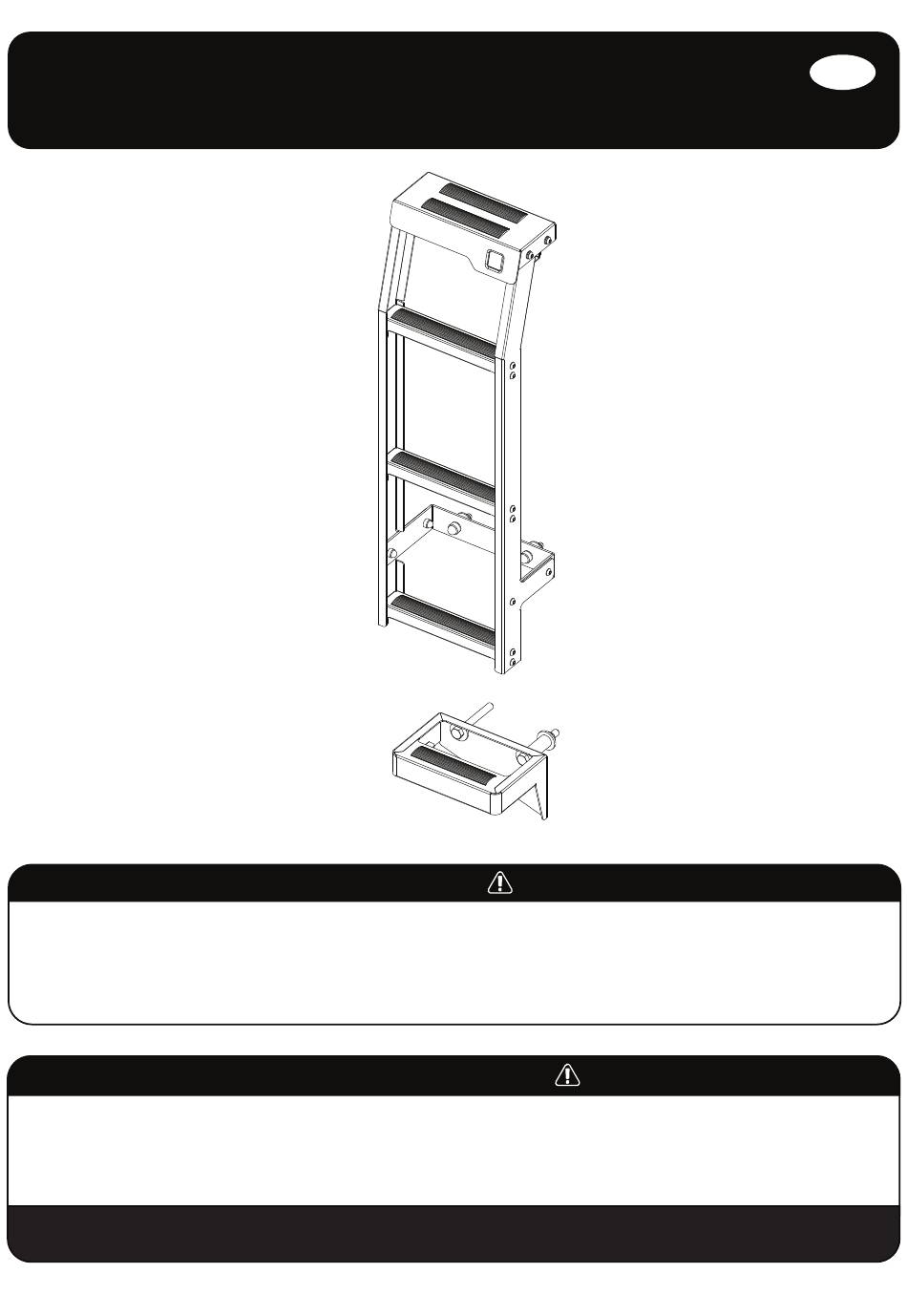

LAND ROVER DEFENDER 90 / 110
front runner
LADDER
LALD006
READ ME !
Thank you for purchasing a Front Runner Land Rover Defender 90 / 110 Ladder.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
LALD006_REV_A02
1
© 2020 FRONT RUNNER VEHICLE OUTFITTERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the LALD006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Front Runner LALD006

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 2: Tools Needed

    17mm 8.5mm M10 Nyloc Nut 24 X M6 Nut Cap M8 Nut Cap M8 x 35 Hex Head Bolt MARKER M8 x 16 x 1.6SS Flat Washer FIGURE 1.1 17 10 17 10 LALD006_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 Ladder Sides using M6 x 16 Button Head Bolts, M6 x 12 x 1SS Flat Washers and M6 Nyloc Nuts (Items 9, 10 & 26) as shown. Place M6 Nut Caps (Item 17) on all the Nyloc Nuts. 10mm LALD006_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS 0.5m...
  • Page 4 Ladder. Using a drill machine and a 6mm drill bit, drill two pilot holes on your markings. Change to a 8.5mm drill bit and drill the holes to 8.5mm. 1992 LALD006_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 M10 Flat Washer and M10 Nyloc Nut (Item 17mm 14 & 24). If the original bolt went through the chassis and the seat belt support bar, use the M10 x 100 Hex Bolt (Item 27). LALD006_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 6 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam...
