Front Runner LAMG002 Manual

Front Runner LAMG002 Manual

For mercedes gelandewagen g class (1979-2018)

Advertisement

Quick Links

front runner
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
LAMG002_REV_A02
MERCEDES GELANDEWAGEN
G CLASS (1979-2018)
READ ME !

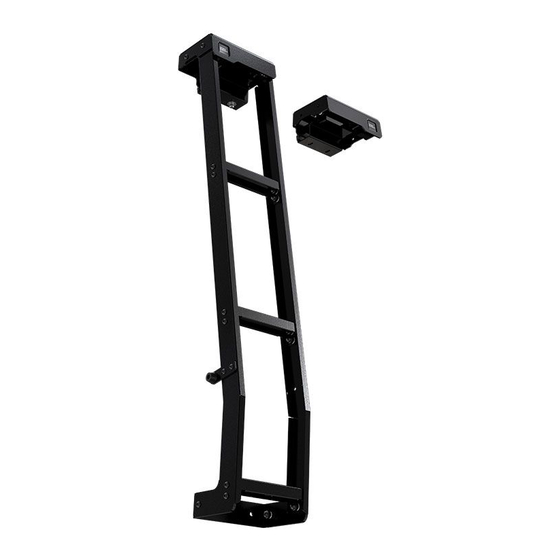

Thank you for purchasing Front Runner Mercedes Gelandewagen G Class (1979-2018) Ladder.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
Please call us if you have any questions about the installation of this product.
1
LAMG002
© 2020 FRONT RUNNER VEHICLE OUTFITTERS
ENG

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAMG002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Front Runner LAMG002

  • Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
  • Page 2: Tools Needed

    10 X M6 x 16 Button Head Screw Bottom Support Denatured 10mm Alcohol Ladder Rung - MG2 14 X M6 Nut Cap 18 X M6 Nyloc Nut 20 X M6 Flat Washer FIGURE 1.1 LAMG002_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 3 Washers and two M6 Flat Washers (Item 25, 23 & 19). Insure to insert two M6 Black Nylon Washers (Item 26) between the Gutter Clamp tabs and the holes provided in the the Ladder Top Clamp. 19 26 LAMG002_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 4 10mm Assemble the Ladder Top in 2.3 to the assembly in 2.5 using four M6x16 Button Head Screw, four M6 Flat Washers and four M6 Nyloc Nuts (Item 14, 19 & 18) 10mm LAMG002_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 5 Make sure the spacing at the top and bottom Denatured is 70mm from the Door Frame Edge. Alcohol Remove the backing tape from the Double Sided Tape and firmly push and secure the bottom of the ladder against the vehicle. LAMG002_REV_A02 © 2020 FRONT RUNNER VEHICLE OUTFITTERS...
  • Page 6 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam Share your adventures on: ©...
