INSTRUCTIONS–PARTS LIST
Evacuation System Accessories
Installation Kit for Waste Oil Receiver Evacuation System
Part No. 222–147
Receiver Evacuation Kit
Part No. 222–007
Air Supply Kit
Part No. 221–147
Suction Wand Kits
Part No. 221–146
Part No. 224–761
Part No. 224–762
Evacuation Control Valve
Part No. 220–969
Ground Clamp Part No. 103–538
Grounding Wire Part No. 208–950
Waste Oil Suction Tube
Part No. 222–178
Vacuum Gauge
Part No. 185–069
Suction Wand Holder
Part No. 185–068
IMPORTANT
Installation and use must be in accordance with the
Flammable and Combustible Liquids Code (NFPA 30)
and Automotive and Marine Service Station Code
(NFPA 30A) and must comply with all local, state and
federal codes.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
15 in. Wands
32 in. Wands
48 in. Wands
COPYRIGHT 1988, GRACO INC.
307–870
Supersedes E

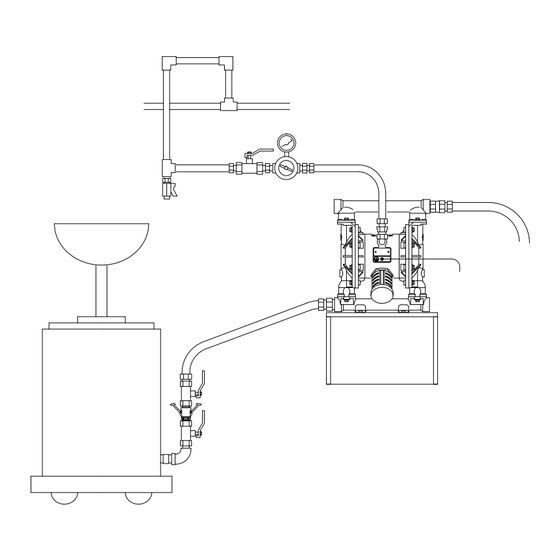

NOTE: For clarity in this
illustration, the air hose and
regulator to the pump are shown
above the level of the air inlet. For
efficient operation, these parts
must be level with the air inlet of
the pump.
Typical Evacuation
System shown
Rev. F
Advertisement
Related Manuals for Graco 222-147
Summary of Contents for Graco 222-147
- Page 1 Installation and use must be in accordance with the Flammable and Combustible Liquids Code (NFPA 30) and Automotive and Marine Service Station Code (NFPA 30A) and must comply with all local, state and federal codes. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1988, GRACO INC.
-
Page 2: Table Of Contents
......Graco Warranty ..... . . - Page 3 WARNINGS For Professional Use Only. Observe All Warnings. Read and understand all instruction manuals before operating equipment. EQUIPMENT MISUSE HAZARD General Safety Fluid Compatibility Any misuse of the equipment or accessories, such as Be sure all fluids and solvents used are chemically overpressurizing, modifying parts, using incompatible compatible with the “Wetted Parts”...
- Page 4 Starting and Adjusting the Pump waste oil from rolling waste oil receivers. The receivers Be sure the pump is properly grounded and are rolled up to a centrally mounted pump. A Graco bonded. Read and follow FIRE OR EXPLOSION Husky 1040 pump is shown.
-
Page 5: Receiver Evacuation Kit, 222-007
Parts, Kits 222–147 & 222–007 Part No. 222–147 Part No. 222–007 Installation Kit for Waste Oil Receivers Receiver Evacuation Kit Provides the necessary air controls, connecting hose to Provides an evacuation outlet for a waste oil receiver. the main outlet line, and suction line to a waste oil receiver Designed to be used with kit 222–147. -
Page 6: Typical Gear Oil Receiver Evacuation System
The system in Fig. 2 is for the fast evacuation of gear Attach an appropriate wand to the control valve. oil from vehicles. One centrally mounted Graco Husky See Suction Differential Kit 221–146. 1040 pump can have suction line drops to as many as Connect the quick coupler of the Air Supply Kit four service bays, when activated singly. -
Page 7: Air Supply Kit 221-147
Air Supply Kit 221–147 For maximum performance from your Graco Husky Installation 1040 pump, use this kit to control the maximum regu- Assemble the kit as shown below. lated pressure setting and the proper pump speed. Mount the regulator assembly for convenient ac- Ref. -
Page 8: Suction Differential Kit 221-146
Suction Kits Kit 221–146 has a 10 foot suction hose and quick cou- Suction Differential Kit 221–146 pler with four interchangeable 15 inch suction wands to Includes all items listed below. evacuate lube from most differential and transmission Ref. cases. Additional accessory wand kits in 32 in. and 48 Part No. -
Page 9: Evacuation Control Valve, 220-969
Suction Kits 32 Inch Suction Wand Kit 224–761 48 Inch Suction Wand Kit 224–762 Includes all items listed below. Includes all items listed below. Ref. Ref. Part No. Description Qty. Part No. Description Qty. 224–668 3/16” OD Suction Assembly 223–459 3/16” OD Suction Assembly 187–360 .32 In. -
Page 10: Waste Oil Suction Tube, 222-178
Waste Oil Suction Tube, 222–178 Recommended for evacuating waste oil from rolling carts. Designed to be connected to Suction Differential Kit, 221–146; See page 8. Ref. Part No. Description Qty. 183–832 Tube 187–046 Strainer 156–022 Adapter 801–568 Quick Coupler Installation Connect quick coupler (4) to the female quick dis- connect fitting on the Suction Differential Kit. - Page 11 Grounding Vacuum Gauge Part No. 103–538 Grounding Clamp Part No. 185–069 Part No. 208–950 Grounding Wire Use for Vacuum Test described in Step 10, page 6. 12 ga., 25 ft (7.6 m) long Recommended for grounding all existing and new evacuation systems.
- Page 12 Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defec- tive.
