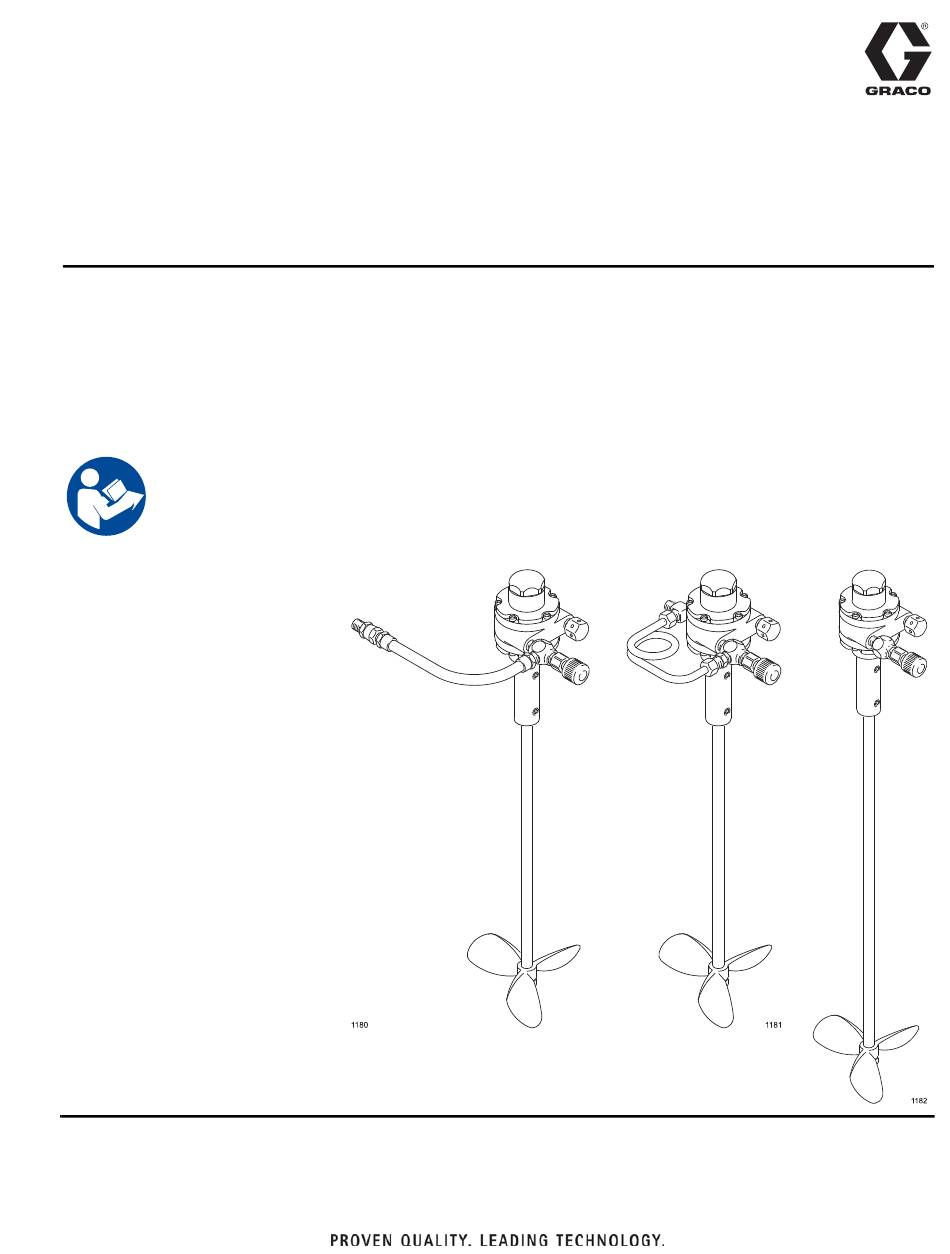

Instructions - Parts

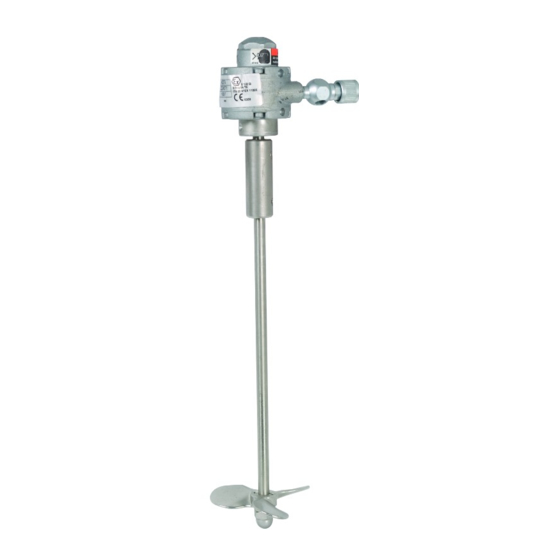

AIR-DRIVEN, STAINLESS STEEL
Agitators
For mixing and maintaining suspension of industrial coatings. For professional use only.
100 psi (0.7 MPa, 7 bar) Maximum Working Pressure
See page 2 for model information, including maximum working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Save
these instructions.
Model
222695
306565K
Model
Model
204536
224572
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 222695
Summary of Contents for Graco 222695
- Page 1 100 psi (0.7 MPa, 7 bar) Maximum Working Pressure See page 2 for model information, including maximum working pressure and approvals. Important Safety Instructions Read all warnings and instructions in this manual before using the equipment. Save these instructions. Model Model Model 222695 204536 224572...
-
Page 2: Table Of Contents
Operating the Agitator ..... 8 Graco Standard Warranty ....16... -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. - Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
-
Page 5: Installation
Installation Installation Air Requirements For continuous use, the 1/4 HP (187 W) agitator air motor typically requires 2 cfm (0.06 m3/min.) of air. To reduce the risk of fire and explosion, always maintain a minimum of 1 in. (25.4 mm) clearance Air Line Accessories between rotating agitator parts and container to prevent sparks from contact. -
Page 6: Preparing The Agitator For Use
3. Position the air motor so the air line (D) can be Model 222695 attached easily and will not obstruct any other Screw the air hose coupling (E) into the needle valve's system components. -
Page 7: Grounding
Installation Grounding The equipment must be grounded to reduce the risk of static sparking. Static sparking can cause fumes to ignite or explode. To reduce the risk of static sparking, all electrically conductive objects or devices in the spray area must be properly grounded. Check your local electrical code for detailed grounding instructions for your area and type of equipment. -
Page 8: Operation
Operation Operation 3. Reduce the speed slightly, then fill the fluid container. Use the lowest agitator speed needed for thorough agitation of the paint. Excessive agitator speed may cause the paint to foam. Moving parts, such as an impeller blade, can cut or amputate fingers. -
Page 9: Maintenance
Maintenance Maintenance Flush the Air Motor Lubricate the Air Motor NOTICE Not lubricating the air motor will cause air motor fail- ure. Do not use kerosene or other flammable solvents to flush the air motor. Flushing with flammable solvents If an air line lubricator is not installed, the air motor must could cause fire or explosion and result in serious be manually lubricated every 8 hours. -
Page 10: Service
• If the unit requires more than installation of a service kit, it is usually quickest and easiest to send the unit to the Graco distributor for repair or replacement. • If the vanes need replacing or foreign material is... - Page 11 Service 306565K...
-
Page 12: Parts
Parts Parts Models 222695, 204536, 224571, 224572 Stainless Steel Agitators Ref. 1 Agitator Assembly Includes items 2 to 12 Apply medium grade sealant to external threads. Press fit. Apply anaerobic sealant and torque to 34– 40 in-lbs (4–4.5 N•m). MODEL 204536 ONLY Ref. - Page 13 Parts Model 204536 Agitator Assembly For 5-gallon pail; includes items 1 and 14 Model 222695 Agitator Assembly For 5-gallon pail; includes items 1 and 15 Model 224572 Agitator For 10-gallon pail; includes items 2 to 11 and 13 Ref. Part Description Qty.
-
Page 14: Dimensions
Dimensions Dimensions 3.12 in. 3.12 in. (80 mm) (80 mm) 13.25 in. (337 mm) 17.25 in. (433 mm) MODELS 204536 & 222695 Agitators for 5-gallon pail MODEL 224572 Agitator for 10-gallon pail 306565K... -
Page 15: Technical Specifications
Technical Specifications Technical Specifications Air-driven, stainless steel agitators Metric Maximum working pressure 100 psi 0.7 MPa, 7 bar Agitator motor 1/4 HP (187 W) Air motor requirement 2 cfm (0.06 m /min.) Noise (dBa) *Noise level at 100 psi (0.7 MPa, 7 bar), 800 RPM, normal load Sound pressure level 65.3 dBa... -
Page 16: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
