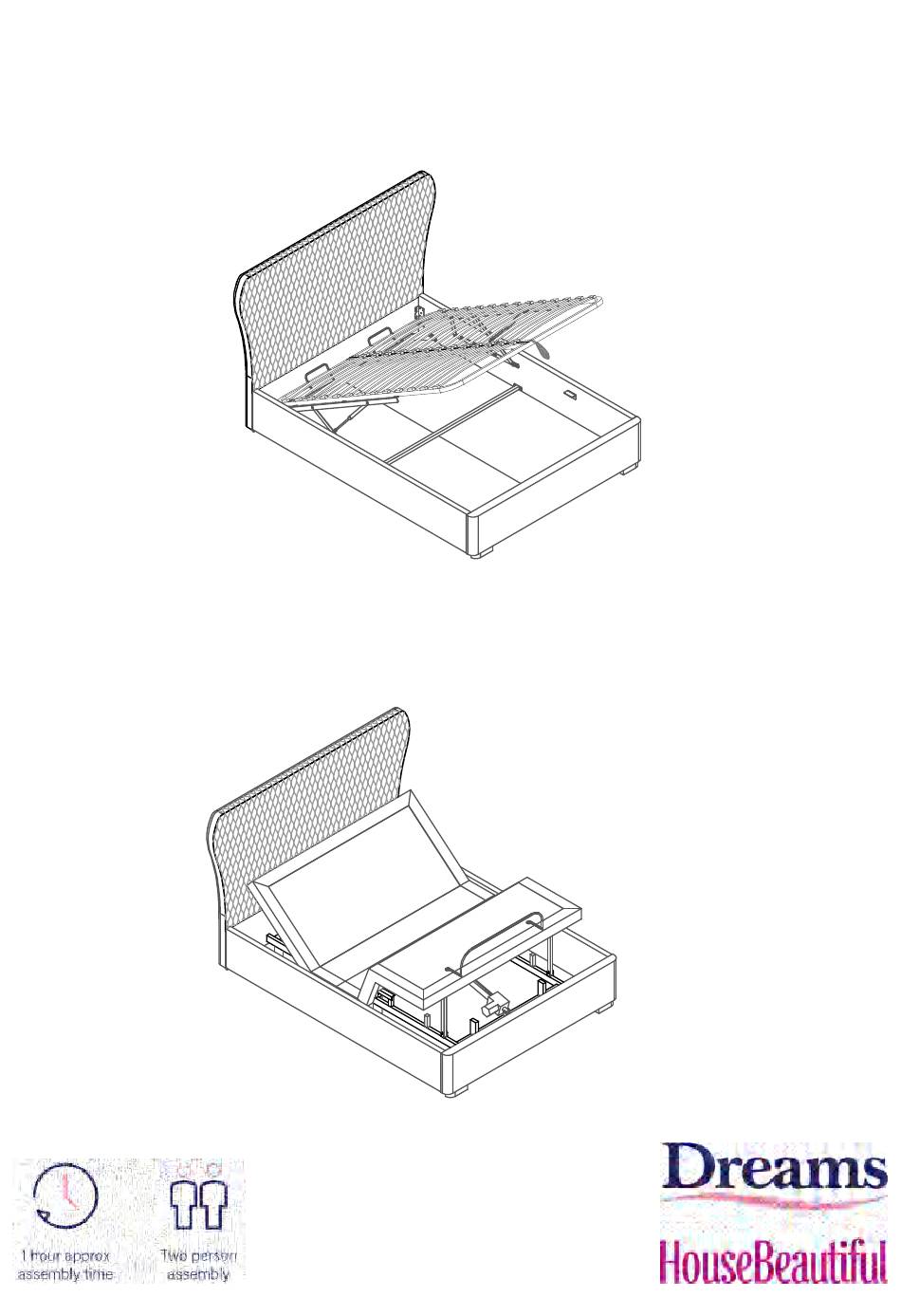

- Page 1 Grove Bed OTTOMAN SLEEPMOTION...
-
Page 2: Assembly Tips
Thank you Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best ever night's sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. - Page 3 Parts Important infomation Please identify which base you have purchased with your bed frame as the assembly method may change. Once you have identified you have all of the relevant parts and fittings, please follow the instructions for your chosen base below; Ottoman：Page (5 - 11) Sleepmotion：Page (12 -16) OTTOMAN...
-
Page 4: Tools Required
Fittings Please check you have all the parts listed below with your product; HARDWARE FOR FITTING BED FRAME (Pack 'A') x1pc Allen Key (for M8 bolt) x8pcs x20pcs Bolts (M8x40mm) Bolts (M8x35mm) Spring Washers x20pcs Flat Washers x20pcs HARDWARE FOR FITTING METAL SLAT FRAME (Pack 'B') x14pcs x32pcs x6pcs... - Page 5 Ottoman assembly Use pack 'A' Bolts (M8x40mm) for Foot of bed(D)and to x1pc for M8 bolt headboard & footboard (A & B) x8pcs M8x40mm Use pack 'A' x1pc x12pcs for M8 bolt x12pcs for M8 bolt for M8 bolt x12pcs M8x35mm i) Fit 2 sets of bolts (3),flat washers (5) to the holes in the headboard (A) as shown.
- Page 6 Ottoman assembly Use pack 'A' x1pc x8pcs for M8 bolt x8pcs for M8 bolt M8x35mm x8pcs for M8 bolt Fit the two angle brackets (G) loosely screwing the bolts(3), spring washers (4) & flat washers (5) into the threadedinserts in the corners of headboard (A) & the side rails (C). +100% Make certain the bed is squared up as shown in the diagram then tighten...
- Page 7 Ottoman assembly Use pack 'B' x14pcs x1pc for M8 bolt M8x35mm x14pcs x14pcs for M8 bolt for M8 bolt i) Fit the metal cross rail (H) loosely screwing the bolts(3), spring washers (4) & flat washers (5) into the threadedinsertsin the side rails (D). ii) Fit the 5pcs metal support ( ) looselyscrewing the bolts(3), spring washers (4) &...
- Page 8 Ottoman assembly Use pack 'B' x2pcs x6pcs x6pcs x1pc M8x20mm x6pcs for M8 bolt for M8 bolt for M8 bolt i) Fitting position for cross Bar (F) is clearly iii) Using four sets of bolts (6) , spring washer (4) labeled.
- Page 9 Ottoman assembly Use pack 'B' x1pc for M8 bolt x1pc for M8 bolt x12pcs x6pcs x6pcs for M8 bolt for M8 bolt M8x50mm Un-tie each mechanism&take out x6pcs for M8 bolt the transit protection block Tilt the arms upwards Slat Frame Support Bar iii) With help from your assistant, lift slat frame (E) onto slat frame support bars aligning first set of holes on slat frame...
- Page 10 Ottoman assembly Use pack 'B' x1pc for M8 bolt x1pc for M8 bolt Carefully lay frame down making sure there is an even gap all round as in the sketch. Hold frame securely then tighten all six bolt sets 100% using spanner(7) & Allen key (1). Use pack 'B' x2pcs for M8 bolt...
- Page 11 Ottoman assembly Use pack 'B' Push x2 Mattress Stoppers (K) into metal frame, they should go all the way through the upper & lower metal sections. NOTE: Before moving the slat frame, place the mattress on the slats. Without a mattress in place, the speed of movementis quick and may cause injury.
- Page 12 Sleepmotion assembly Please ensure you have built your sleepmotion base first (please refer to instructions in your sleepmotion box to build the base). Please construct your sleep motion with the 15cm leg and then follow the below instructions to build the bed frame. Screw in the Legs and put Bed Base in the Position inwhich it will be used Grove Bed - Assembly Guide - Page 12...
- Page 13 Sleepmotion assembly Use pack 'A' Bolts (M8x40mm) for Foot of bed(D)and to x1pc for M8 bolt headboard & footboard (A & B) x8pcs M8x40mm Use pack 'A' x1pc for M8 bolt x3pcs x3pcs for M8 bolt for M8 bolt x3pcs M8x35mm Fit 2 sets of bolts (3),flat washers (5) to the holes in the headboard (A) as shown.
- Page 14 Sleepmotion assembly Grove Bed - Assembly Guide - Page 14...
- Page 15 Sleepmotion assembly Raise the Head and Foot Ends of the Bed Base Grove Bed - Assembly Guide - Page 15...
- Page 16 Sleepmotion assembly Use pack 'A' x1pc x9pcs for M8 bolt M8x35mm x9pcs x9pcs for M8 bolt for M8 bolt i) Position Foot End and connect SideRail brackets. ii) Make sure everything is workingproperly then fit second side rail iii) Install the footbard in the same way as the headboard 10MM Fit 2 sets of bolts (3),flat washers (5) to the holes in the headboard (A) as shown.
- Page 17 Sleepmotion assembly Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%. +100% Grove Bed - Assembly Guide - Page 17...
- Page 18 Grove Bed - Assembly Guide - Page 18...
