JAMESON BED
Minimum No.of people
recommended to assemble
this product
Approx assembly time
Before you
start,here
is some
helpful advice
ASSEMBLY INSTRUCTION
2
45
minutes
We suggest you spend a short time reading through this leaflet and
1.
then follow the simple step by step instructions.
If you follow the instructions carefully the end result should be worth
2.
the effort.
Do not discard any of the packaging until you have checked that you
3.
have all the parts and the pack of fittings.
To ensure an easier assembly, we strongly advise that all fittings are
4.
only finger tightened during initial assembly. Only upon completion of
the. Assembly should all fixing points be fully tightened.
We recommend a periodic check on all fixing points to make sure they
5.
remain fully tightened.
6.
In the unlikely event that this product has missing or damaged parts,
7.
please call 0844 292 0000 to obtain spares
SMALL DOUBLE ....................(Solid slats)
DOUBLE
KING
................(Sprung slats)
................... (Solid slats)
............... (Sprung slats)
................... (Solid slats)
................(Sprung slats)
Advertisement
Related Manuals for DREAMS JAMESON BED SMALL DOUBLE
Summary of Contents for DREAMS JAMESON BED SMALL DOUBLE

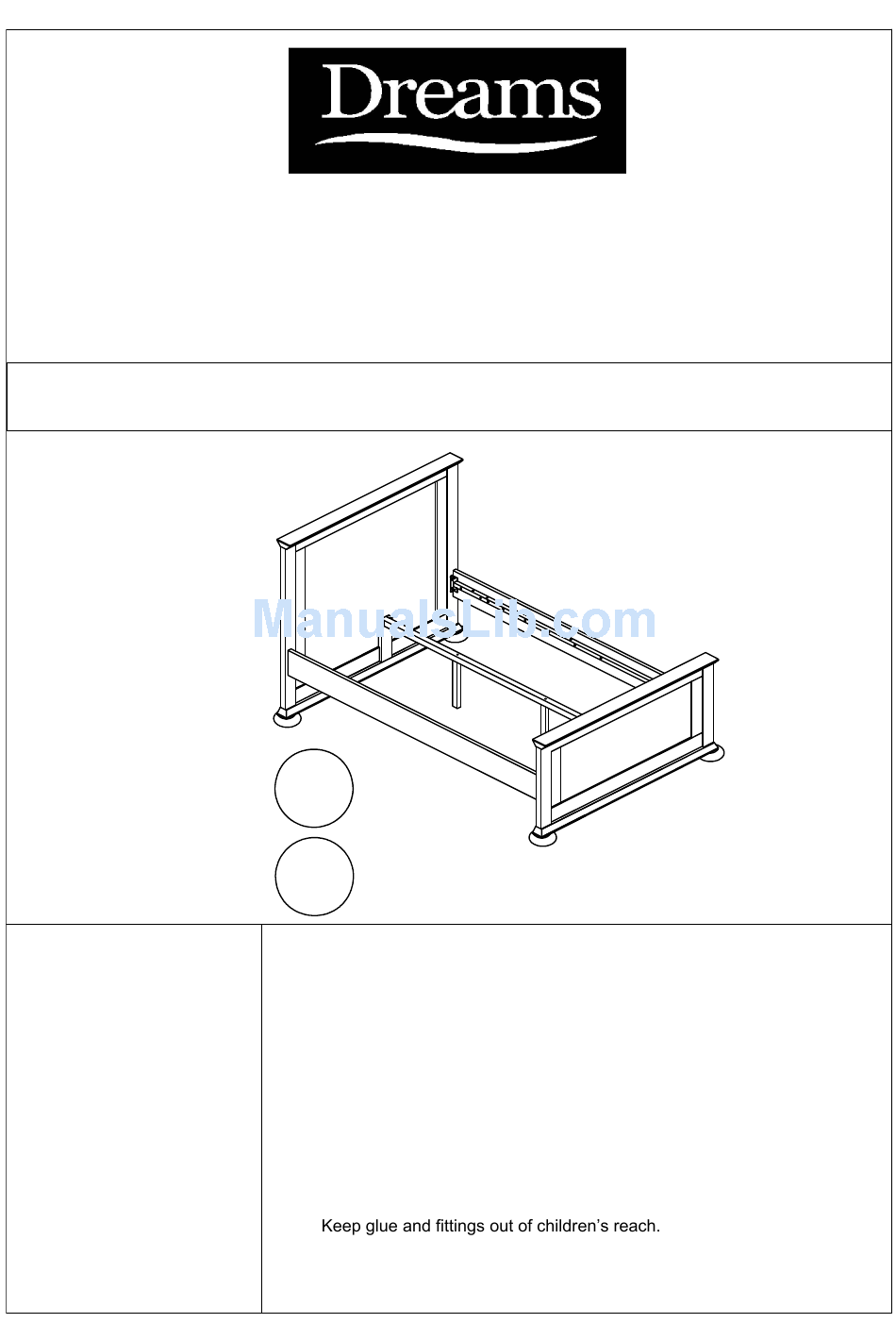

- Page 1 SMALL DOUBLE ....(Solid slats) ....(Sprung slats) DOUBLE ....(Solid slats) ....(Sprung slats) KING ....(Solid slats) ....(Sprung slats) JAMESON BED ASSEMBLY INSTRUCTION Minimum No.of people recommended to assemble this product Approx assembly time minutes Before you We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 PARTS 1(1 piece) 4(1 piece) 3(2 pieces) 5(2 pieces) 2(1 piece) 6(4 pieces) FITTINGS Flat washer ∅19 x 8pcs M6 x 20 mm x 6pcs. M6 x 45mm x 8pcs. Allen key 4mm x 2pcs. Note: The following fittings will be found in the box which contains the Sprung Frame, NOT with the bed frames Assembly Kit.
- Page 3 ASSEMBLY ITEM #: JAMESON BED Turn over both ends of bed, fix 4pcs Wooden Foot "6" into STEP 1 bottom of both ends. Fix the side rails "3" to the headboard "1" and STEP 2 footboard "2". Tighten the bolts which are pre-fitted on Head &...
- Page 4 Identify the slat system you have purchased... Standard wooden slat system Turn to step 3,4,5,6 Sprung slat system Turn to step 7,8...
- Page 5 Attach central support "4" to support feet "5". STEP 3 Use bolts "A" and flat washers "C", tighten using allen key "D". Place the fixed central support "4" onto the support STEP 4 block on headboard "1" and footboard "2".
- Page 6 IMPORTANT Once the feet have been STEP 5 assembled and attached, they should be adjusted to ensure they do not touch the floor, (10mm above the floor) to allow for movement once the mattress is placed on the bed frame. It is important to note that when moving the bed that it is not dragged into its new...
- Page 7 Sprung slat system STEP 7 Fix the center legs to the frame Use bolts "H", tighten using allen key "D". Adjust leg height to suit bed frame 10mm...
- Page 8 Please note: the center bar STEP 8 "4" and wooden support feet "5"can be probably disposed if choosing sprung slat frame Turn the metal slat frame falling upward and carefully lower the slat frame into the bed. Ensure that the frame sits on the guides located on the side rails "3".
