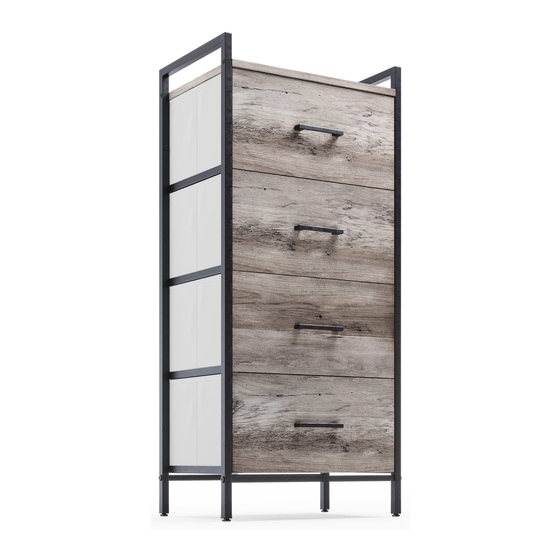

Dresser with 4 Drawers
Assembly Instructions - Please keep for future reference
Important – Please read these instructions before assembly
If you need help or have damaged or missing parts, email:
linsyhome@outlook.com
LS200E2-A
Dimensions
Width -
17.00inch
Depth -
11.30inch
Height -
37.64inch
1
