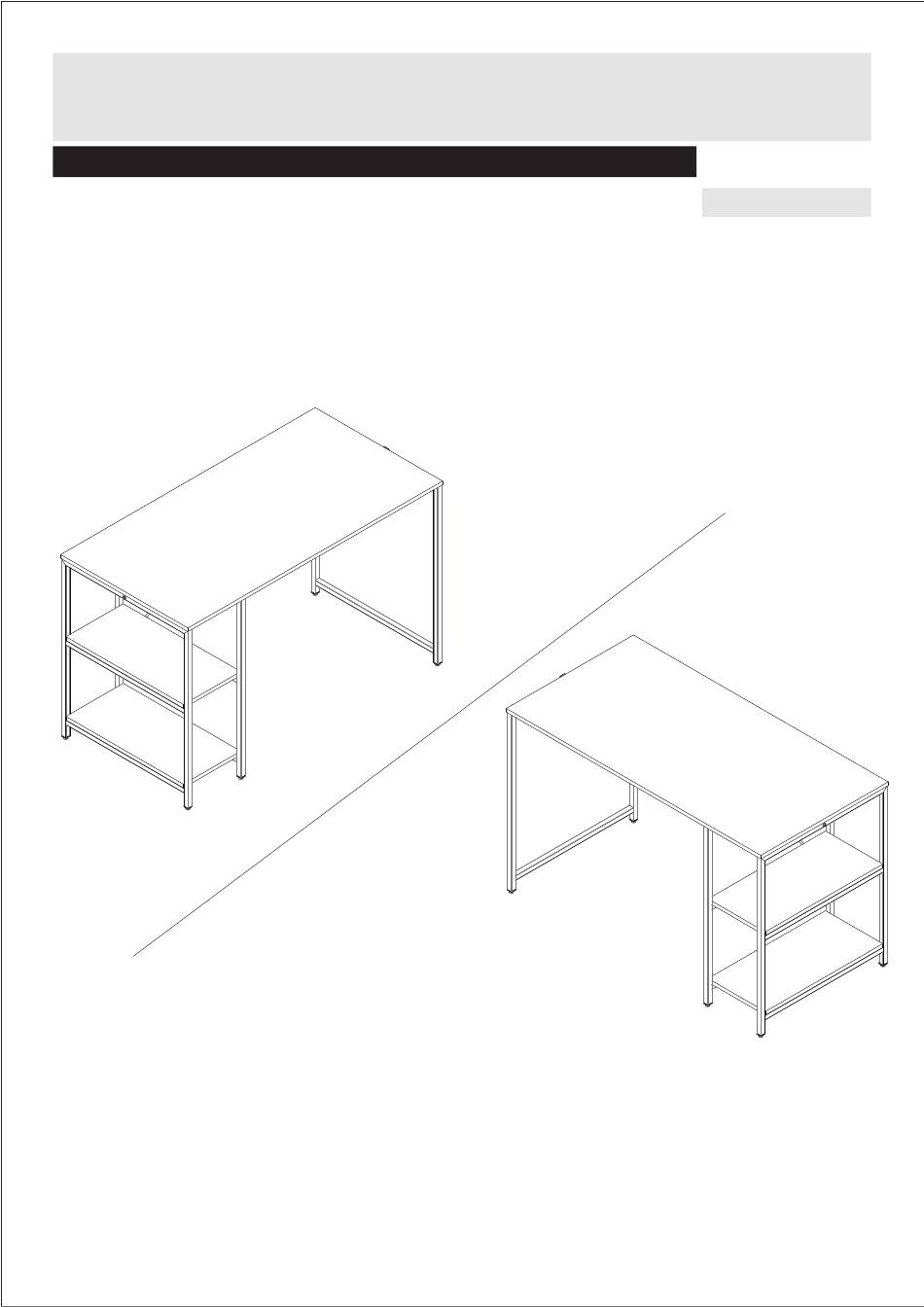

- Page 1 Computer Desk Assembly Instructions - Please keep for future reference Dimensions Width - 47.24inch Depth - 23.62inch Height - 29.53inch...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Assemble on a soft level surface Check that if you have all the Do not stand or put weight on the to avoid damaging the unit or your components and tools listed on the product, which could cause damage.
- Page 3 Components Please check you have all the pieces listed below Part List Reference Description Speci cations(mm) Quantity Material Outer Frame 596*727*20 Steel Middle Frame 596*727*20 Steel Outer Frame 596*727*20 Steel Connecting Tube 906*20*20 Steel Reinforced Wire 1025*340*7 Steel Hanger 25*40*30 Steel Desktop 1200*600*15...
- Page 4 Components Please check you have all the pieces listed below M6x10 x 5 pcs M6x30 x 17 pcs M6 x 6 pcs Spare Parts S4 x 1 pc Spare Parts x 1 pc Assembly Instructions:Shelf on the left Step 1 Don’t screw tightly before all the screws B x 2 pcs are put into the corresponding holes...
- Page 5 Assembly Instructions Step 2 Don’t screw tightly before all the screws B x 5 pcs are put into the corresponding holes D x 1 pc DO NOT USE THE WRONG SCREWS. The desktop can only be xed by the screws B Step 3 DO NOT USE THE WRONG SCREWS.
- Page 6 Assembly Instructions Step 4 Don’t screw tightly before all the screws are put into the corresponding holes B x 8 pcs D x 1 pc Step 5 Don’t screw tightly before all the screws are put into the corresponding holes A x 4 pcs C x 6 pcs D x 1 pc...
- Page 7 Assembly Instructions Step 6 All screws should be tightly D x 1 pc screwed Step 7 The hanger can also be assembled A x 1 pcs on the left side D x 1 pc...
- Page 8 Components Please check you have all the pieces listed below M6x10 x 5 pcs M6x30 x 17 pcs M6 x 6 pcs Spare Parts S4 x 1 pc Spare Parts x 1 pc Assembly Instructions:Shelf on the right Step 1 Don’t screw tightly before all the screws B x 2 pcs are put into the corresponding holes...
- Page 9 Assembly Instructions Step 2 Don’t screw tightly before all the screws are put into the corresponding holes B x 5 pcs D x 1 pc DO NOT USE THE WRONG SCREWS. The desktop can only be xed by the screws B Step 3 B x 2 pcs D x 1 pc...
- Page 10 Assembly Instructions Step 4 B x 8 pcs D x 1 pc Don’t screw tightly before all the screws are put into the corresponding holes Step 5 A x 4 pcs C x 6 pcs D x 1 pc Don’t screw tightly before all the screws are put into the corresponding holes...
- Page 11 Assembly Instructions Step 6 All screws should be tightly D x 1 pc screwed Step 7 A x 1 pcs The hanger can also be assembled on the right side D x 1 pc...
