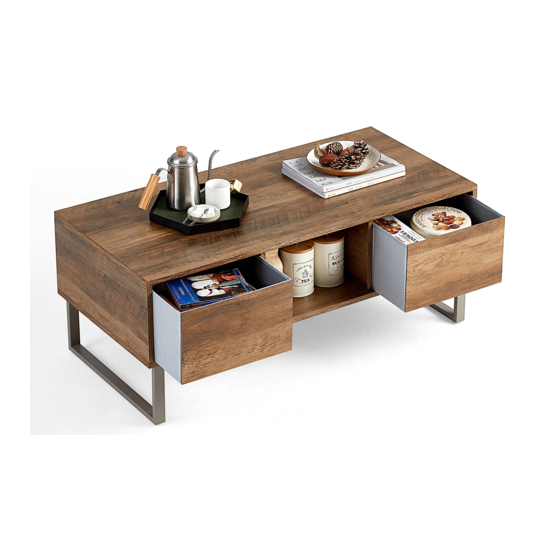

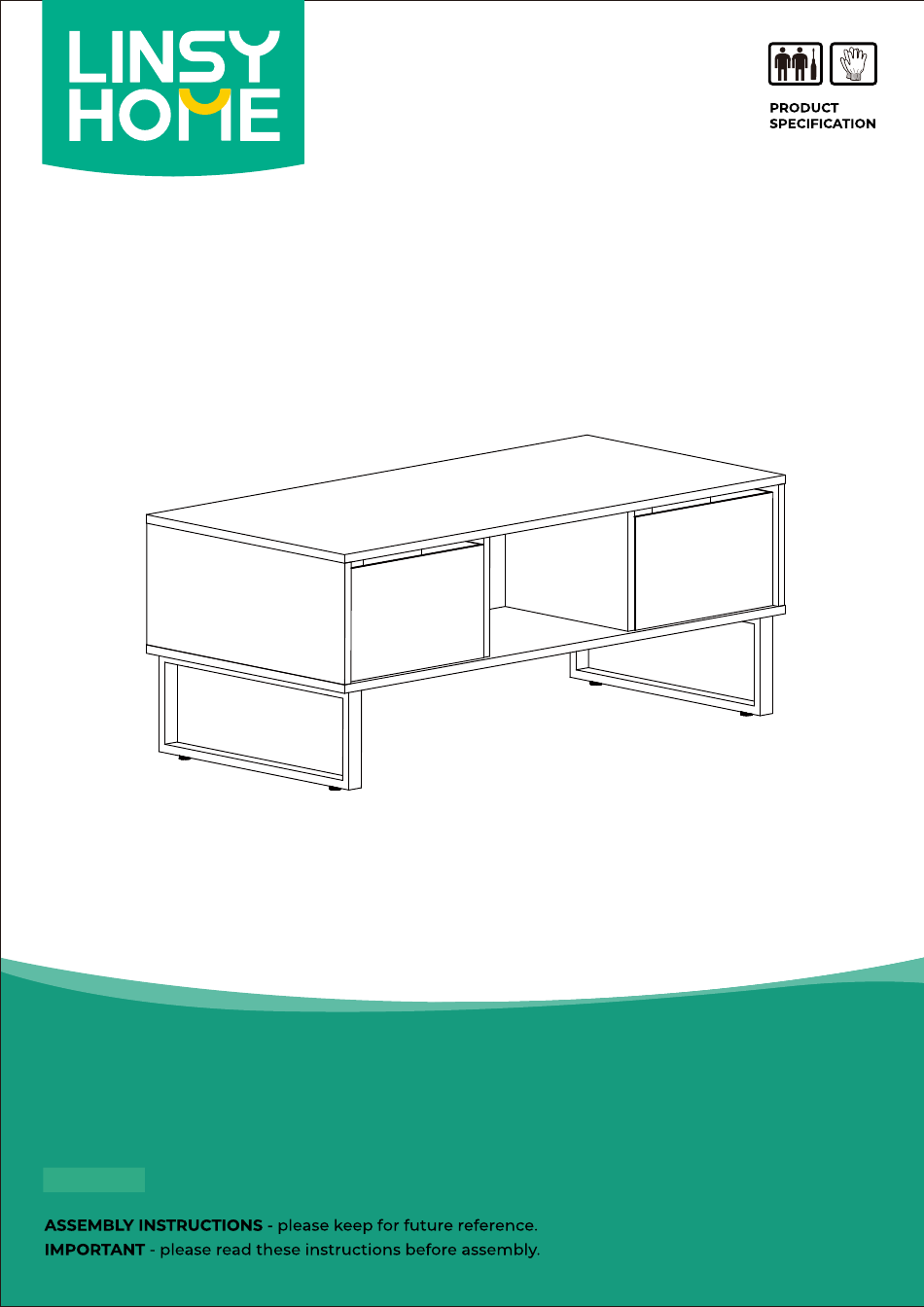

- Page 1 COFFEE TABLE - Width 41.3 inch LH022L5 - Depth 19.7 inch - Height 16.5 inch...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly. Please check if all the components and tools Please assemble the product as close to its listed on pages 3 - 4 are received. final position as possible. Please remove all fittings from the plastic bags Do not place furniture directly in front of and separate them into homologous groups.
- Page 3 Components Please check if all the pieces listed below are received. List Reference Description Specifications(mm) Quantity Material Side Panels 480*68*175 Iron Tube Bottom Wood Panel 1052*500*15 Wood Cloth Drawers 328*305*200 Non-Woven Fabric Bottom Pane of 318*295*3 Non-Woven Fabric Cloth Drawers Intermediate Bulkheads 310*215*15 Wood...
- Page 4 Components Please check if all the pieces listed below are received. M6 Leveling Adjusters M6*25 Bolts M6*12 Bolts Eccentric Locknuts Wooden Dowels M6*35 Screws Anti-collision M4 Allen Key Protective Angles...
- Page 5 Assembly Instructions Please use the screws correctly, otherwise the product will be seriously damaged ! Step 1 x 24 pcs Step 2 x 4 pcs x 4 pcs x 4 pcs x 1 pc...
- Page 6 Assembly Instructions Step 3 x 4 pcs x 1 pc x 8 pcs Step 4...
- Page 7 Assembly Instructions Step 5 Step 6 x 20 pcs x 1 pc...
- Page 8 Assembly Instructions Step 7 Step 8...
- Page 9 Assembly Instructions Step 9 x 4 pcs...
