Capturing Images Through a Microscope

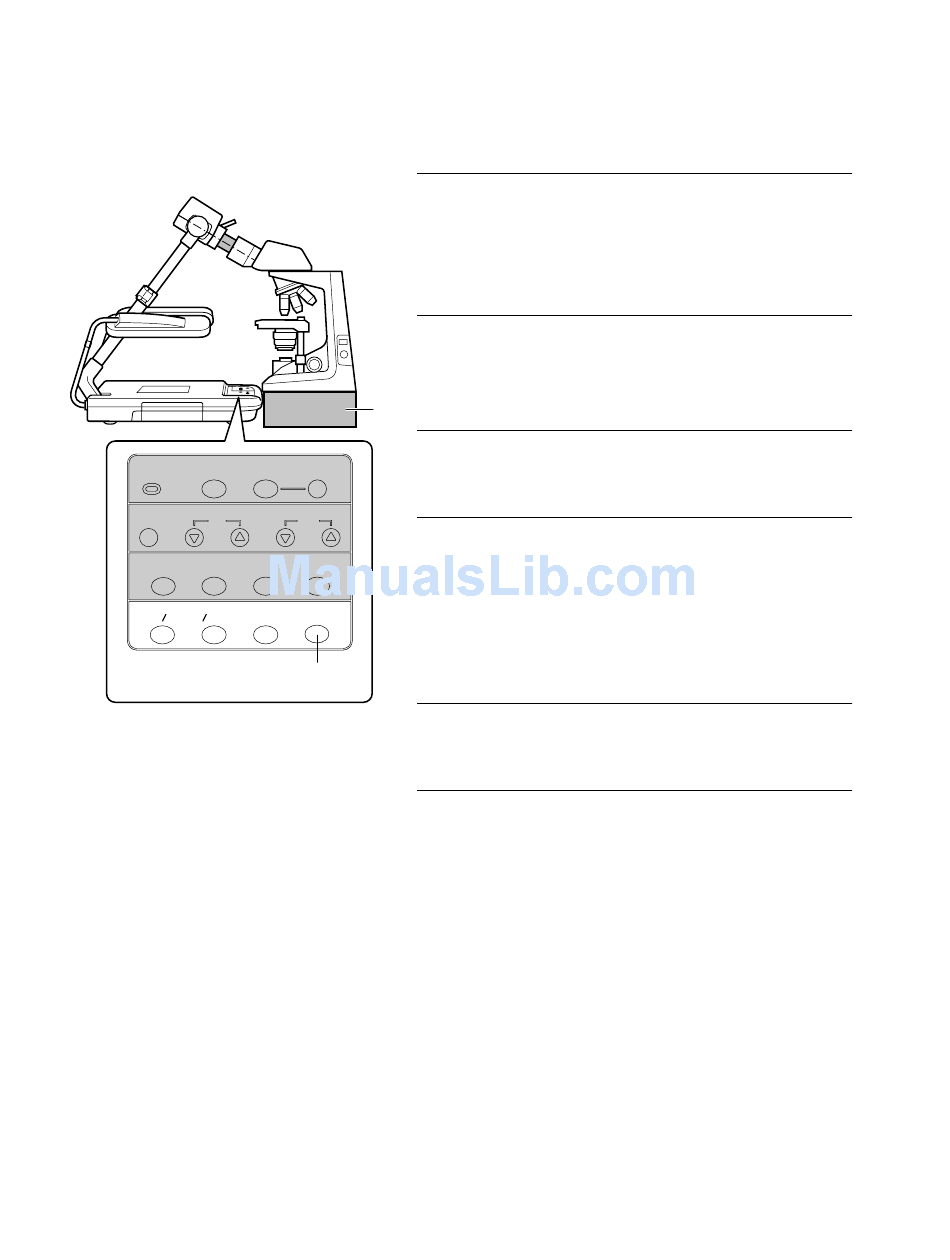

Images from the microscope can be captured by aligning the view piece of the microscope with the camera head.
The procedures described below are for using the adaptable microscope ECLIPSE E200 from Nikon.
4.
3.
USER
DEFAULT
WHITE BALANCE
RED
AUTO
PICTURE MEMORY
CAMERA
1
NEGA POSI BW COLOUR
E-16
1.
2.
2.
3.
SETUP
USER
SAVE
BLUE
4.
2
3
TEXT
MICROSCOPE
5.
5.
6.
Setting the microscope
● Prepare the microscope, such as focus adjustment, for viewing.
● For the usage of the microscope, refer to the instruction manual
of the microscope.
Place the microscope on a platform of
about 10 cm high
Remove the close-up lens
Adjust the position of the camera
head
Adjust the camera head and the view piece of the microscope such
that their respective centre are aligned.
● Adjust the length and angle of the arm.
● Adjust the angle of camera head.
Press the [MICROSCOPE] button
Adjusting the image
● Adjust the brightness and focus while confirming the images.
