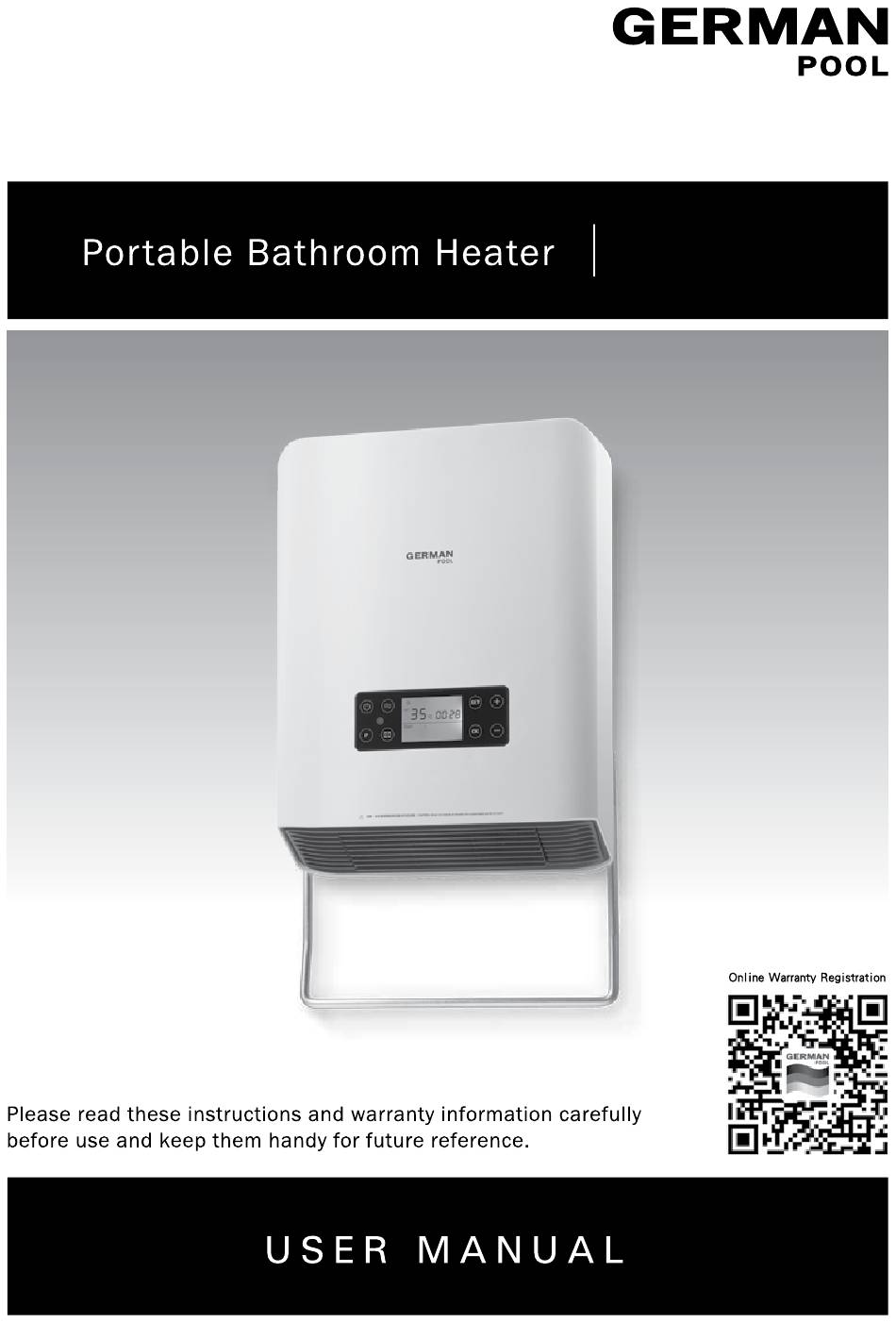

  • Page 1 HTW-621...
  • Page 2: Table Of Contents

    Table of Contents Safety Warnings And Precautions Product Structure Installation Instructions Operation Instructions Care & Maintenance Troubleshooting Technical Specification Warranty Terms & Conditions...
  • Page 3: Safety Warnings And Precautions

    • Unplug this product from the power source before cleaning and maintenance. • Contact German Pool authorized service technician for repair or maintenance of this product. 1. Please read all instructions carefully before using this product. 2. Before use, please check whether the voltage used is consistent with the voltage on the label of this product.
  • Page 4 Safety Warnings And Precautions 4. Children of less than 3 years should be kept away from this product unless continuously supervised. 5. Children aged from 3 years and less than 8 years shall only switch on/ off this product provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of this product in a safe way and understand the hazards involved.
  • Page 5 Safety Warnings And Precautions 20. Switch and control panel cannot be touched by wet hand. 21. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom.
  • Page 6: Product Structure

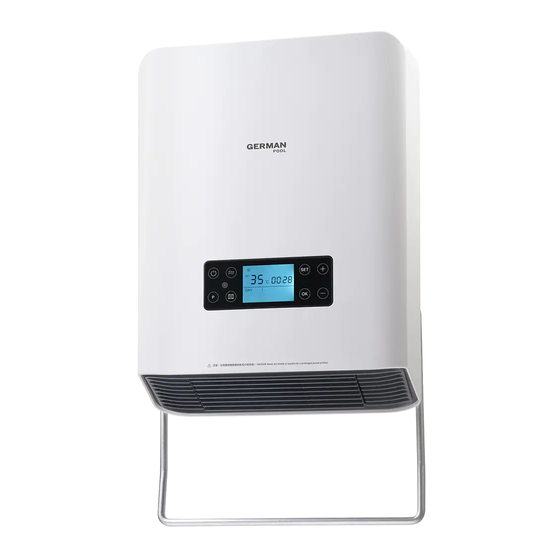

    Product Structure FRONT Front cover Back cover Control panel Towel rail Air outlet Remote control BACK Wall bracket Rear grille Anti-slip foot pad...
  • Page 7: Installation Instructions

    Installation Instructions Installation Requirements WARNING! When installing this product, must leave ample space on all sides to ensure adequate ventilation and heat dissipation. 1. Leave at least 500mm above the product. 2. Leave at least 800mm on either side of the product. 3.
  • Page 8 Installation Instructions Install With Wall-Mounting Components 1. Drill two holes in the wall, and make the diameter of hole as 6mm, depth as 29mm. The distance between the two holes is 59mm. 2. Fix the rubber plug into the two holes. 3.
  • Page 9 Installation Instructions Installing The Towel Rail 1. First insert the left / right ends of the aluminum towel rail into the grooves onto the left / right sides of the bottom of the air outlet grille. 2. Pull the left and right sides of the rail towards you. 3.
  • Page 10: Operation Instructions

    Operation Instructions Control Panel Remote Control Control Keys (Same For Remote Control) On/Of f Air Mode Selection Increase Weekly Programme Mode Confirm Eco Mode Decrease LED Display High Warm Air Mode Clean Filter Reminder Low Warm Air Mode Temperature Indicator Cool Air Mode Time Indicator On-Timer Mode...
  • Page 11 Operation Instructions A.Basic Operation Note: Whether you are operating this product via the control panel on the main body or via the remote control, the procedure is the same. When using the remote control, point it directly towards this product’s LED Display to maximize the signal reception.
  • Page 12 Operation Instructions A2. Low Warm Air High Warm Air Cool Air 1. Connect to the power source. Product enters standby status, buzzer beeps twice, Temperature Display shows “0” and current day and time. 2. Press On/Off to turn on the product. If using for the first time, product enters High Warm Air Mode by default.
  • Page 13 Operation Instructions A4. On Timer Mode 1. In standby status (Temperature Display shows “0”), press once to enter into On Timer Mode. Indicator icon lights up constant, and Time Display “00:00” flashes. 2. Press to select hour (00-23), press to confirm. 3.
  • Page 14 Operation Instructions B2. Eco Mode 1. When Thermostat Mode is activated, press to enter Eco Mode. Indicator icon lights up constant. 2. Press to set the temperature anywhere between 5ºC-35ºC. 3. When Eco Mode is activated, when the product detects a drastic drop in the ambient temperature (a 5ºC-10ºC drop within 10 minutes), the product will automatically stop heating and return to standby status to save electricity.
  • Page 15 Operation Instructions Note: In standby status, press to activate or cancel Weekly Timer Mode. To change the setting, run through steps 1-9. Weekly Programme Mode will automatically run on cycle, meaning after day 7 it will automatically return to day 1 again. If the scheduled times of P1 and P2 overlap, the product will run on the higher preset temperature.
  • Page 16: Care & Maintenance

    Care & Maintenance WARNING! Before cleaning, be sure to turn off the power and unplug the power plug, or else it may cause electric shock. Cleaning The Surface 1. Clean the surface of the product with a damp cloth (or moistened with detergent). Do not rinse directly with water.
  • Page 17 Care & Maintenance Maintenance 1. If the product won’t be used for a long time, pull out the power plug, pack the heater and prevent dust from entering. 2. Before packing, make sure that the outer surface and the filter are dry. 3.
  • Page 18: Troubleshooting

    35ºC, the product will go into to standby status when operating in status, and reactivate after the room temperature Thermostat Mode falls below 35ºC. Technical Specification Model No. HTW-621 Voltage/Frequency 220-240V / 50Hz Power 1,500W / 2,100W Product Dimensions (H) 379 (W) 280 (D) 121 mm...
  • Page 19 目錄 警告及注意事項 產品結構 安裝說明 操作說明 清潔與保養 故障檢修說明 技術規格 保用條款 35 P.19...
  • Page 20: 警告及注意事項

    警告及注意事項 注意: • IP23防水防塵級別只適用於當產品垂直固定安裝於牆壁使用。 • 本產品不可作風扇用途。 警告! 使用本產品前,請仔細閱讀所有說明。 • 本產品只限家居室內日常使用,如產品作任何商業、工業、出租或其他用 途,保用證即告失效。 • 請勿讓兒童或身體有殘障、精神不健全及對本產品缺乏經驗或知識的人士單 獨使用本產品;如需使用,必須要在負責任的成年人監管下方可使用。 • 應照顧好兒童,確保他們不會玩耍本產品。 • 無成年人監管下,勿讓兒童清潔及維護本產品。 • 使用前,請先檢查所有電壓是否與本產品標籤上的電壓相符。 • 如果電源線損壞,為免發生意外,電源線必須由廠方、廠方指定的維修中心 或同等合格的技術人員進行更換。 • 清潔或檢查本產品前,必須先關機及拔掉插頭。 • 請聯繫德國寶授權的技術人員進行維修或保養本產品。 1. 使用本產品前,請仔細閱讀所有說明。 2. 使用前,請先檢查所用電壓是否與本產品標籤上的電壓相符。 3. 當本產品由8歲或以上兒童、感官或精神有缺陷、及缺乏必要經驗和知識的人 使用時,必須有對其安全負責的人進行監管,並確保使用者的安全及其明白當 中潛在危險。當兒童對本產品進行清潔和維護時,必須有對其安全負責的人進 行監管。 4. 3歲以下的幼兒應遠離本產品,除非有對其安全負責的人進行持續監管。 5. 當本產品被放置或安裝在正常工作位置時、在有對其安全負責的人的指導或協 助、並確保使用者的安全及其明白當中潛在危險的前提下,3至8歲的兒童只可...
  • Page 21 警告及注意事項 括小孩),除非在能對其安全負責的人的監管下使用。 8. 兒童應進行監管,以確保他們不玩耍本產品。 警告:為避免過熱,禁止覆蓋本產品。 10. 在浴缸、花灑、噴頭或泳池的四周不得使用本產品。 11. 如果本產品有跌落過,請勿使用。 12. 本產品不得直接置於電源插座下面。 13. 如果本產品有明顯的損壞跡象,請勿使用。 14. 如果電源軟線損壞,為了避免危險,必須由製造商、其維修部或類似部門的專 業人員更換。 15. 在水平和穩定的表面上使用本產品。 警告:當小房間內有無法自行離開房間的人員時,請勿在小房間內使用本 設備,除非提供持續的監督。 警告:為了避免對年幼兒童造成危險,該設備的安裝應確保最低加熱面至 少高出地板1000 mm。 18. 毛巾架的安裝應確保開關和其他控制裝置不會被沐浴或淋浴的人觸摸。 19. 本產品僅供家用和室內使用。 20. 不能用濕手觸摸開關和控制面板。 21. 對於附加保護,建議在浴室供電電路中安裝額定工作電流不超過30mA的過流保 護裝置(RCD)。請向安裝人員諮詢。 22. 本產品僅用於烘乾水洗過的紡織品。 23. 應保護電器插頭,例如遠離水源,或用防水盒保護插頭。 24. 不要攝入電池,可能導致化學灼傷危險。 警告:本產品包含紐扣電池。如果紐扣電池被吞下,可能在2小時內造成嚴 重的內部燒傷,並可能導致死亡。 26.
  • Page 22: 產品結構

    產品結構 正面 上蓋 下蓋 控制面板 毛巾架 出風口 遙控器 底部 掛壁孔 網蓋 防滑腳墊 P.22...
  • Page 23: 安裝說明

    安裝說明 安裝注意事項 警告: 請確保該安裝距離滿足下圖要求: 1. 頂部距離應不少於500mm。 2. 側壁距離應不少於800mm。 3. 地面距離應不少於1,000mm。 注意:切勿長時間晾掛烘乾毛巾或衣物! CAUTION: Never dry towels or laundry for a prolonged period of time! 警告: 本產品不得安裝在區域1或2(如下圖)。 安裝時必須確保開關和其他控制裝置不會被沐浴或淋浴中的人觸摸。 P.23...
  • Page 24 安裝說明 使用掛壁支架安裝 1. 在牆上鑽兩個孔,孔的直徑 為6mm,深度為29mm;兩個孔之間的距離為59mm。 2. 螺絲膠塞固定在兩個孔中。 3. 將螺絲固定到螺絲膠塞中,然後擰緊。 29mm 掛壁支架 螺絲膠塞 2個Φ6mm孔,孔深29mm 4. 本產品安裝在掛壁支架上:將機底的大孔對準掛壁裝置,然後向右轉到小孔 (如下圖)。 小孔 小孔 大孔 大孔 大孔 P.24...
  • Page 25 安裝說明 安裝毛巾架 1. 將毛巾架裝入出風口左右兩側的孔。 2. 然後左右側均往外拉至卡住毛巾架即可。 3. 確保毛巾架固定好,完成。當不使用毛巾架時,左右側往裡推毛巾架即可拆卸 下來。 注意:切勿長時間晾掛烘乾毛巾或衣物! CAUTION: Never dry towels or laundry for a prolonged period of time! 注意:切勿長時間晾掛烘乾毛巾或衣物! CAUTION: Never dry towels or laundry for a prolonged period of time! P.25...
  • Page 26: 操作說明

    操作說明 主機控制面板 遙控器 控制按鍵(遙控器相同) 開關鍵 設定鍵 涼暖風模式鍵 加鍵 一周預設模式鍵 確認鍵 環保模式鍵 減鍵 LED顯示屏 高檔暖風模式 清洗濾網提示 低檔暖風模式 溫度顯示 涼風模式 時間顯示 定時開機模式 星期顯示 定時關機模式 程序顯示(一周預設模式) 一周預設模式 開機時間(一周預設模式) 環保模式 關機時間(一周預設模式) P.26...
  • Page 27 操作說明 A.基本操作 注意: . 使用控制面板按鍵與遙控器按鍵的操作相同。 . 使用遙控器操作時,需將遙控器對準LED顯示屏,令遙控信號達到最好。 A1. 設置當前星期和時間(初次使用) 1. 插上電源後進入待機狀態,蜂鳴器發出聲響兩聲,顯示屏溫度顯示「0」。 2. 在待機狀態下,按「設定鍵 」2次進入設置當前星期和時間模式。 3. 按「減鍵 」或「加鍵 」選擇「DAY 1-7」對應星期一至星期日,按「確認 鍵 」。 4. 按「減鍵 」或「加鍵 」選擇「00-23」對應凌晨12時至晚上11時,按「確 認鍵 」。 5. 按「減鍵 」或「加鍵 」選擇「00-59」對應0-59分鐘,按「確認鍵 」, 設置完成。 注意: . 設置時間期間,如5秒內無任何操作,將自動確認當前所設置的時間。 . 在運行狀態下,按「設定鍵 」2次亦可進入設置當前星期和時間模式 。 P.27...
  • Page 28 操作說明 A2. 低檔暖風 高檔暖風 涼風 1. 插上電源後進入待機狀態,蜂鳴器發出聲響兩聲,顯示屏溫度顯示「0」及當前 星期和時間。 2. 按「開關鍵 」開機,進入高檔暖風模式(如初次使用),指示燈 常亮, 顯示屏溫度顯示「--」。 3. 按「涼暖風模式鍵 」調整模式,順序循環為:低檔暖風模式 > 涼風模式 > 高檔暖風模式 。 4. 如需關機,按「開關鍵 」返回待機狀態,顯示屏溫度顯示「0」。 注意: . 從涼風模式 切換至高檔暖風模式 ,或會延遲10秒生效。 . 在低檔暖風模式 及高檔暖風模式 下關機,風扇會延遲約30秒關閉以 進行散熱。 . 關機後再開機,將會以上次運行模式繼續運行。如需清除記憶,請斷電後 重新接駁電源。 . 使用低檔暖風模式 、高檔暖風模式 或涼風模式時,如無任何操作,...
  • Page 29 操作說明 A4. 定時開機模式 1. 在待機狀態下(顯示屏顯示「0」),按「設定鍵 」1次進入定時開機模 式,指示燈 常亮,顯示屏時間顯示「00:00」閃爍。 2. 按「減鍵 」或「加鍵 」選擇「00-23」小時,按「確認鍵 」。 3. 按「減鍵 」或「加鍵 」選擇「15」、「30」或「45」分鐘,按「確認鍵 」。 4. 設置完成後,顯示屏時間顯示倒數開時間,倒數完成後自動開機。 注意: . 設置時間期間,如5秒內無任何操作,將自動確認當前所設置的時間。 . 使用定時開機模式,預設以「恆溫模式」23℃運行;或可自行設置運行溫 度,詳見「調節恆溫溫度」。 . 設置定時關機或定時開機模式後,如需取消,可按「開關鍵 」取消定時 並直接關機或開機。 B.進階操作 B1. 設置恆溫溫度 1. 在已設置定時開機的待機狀態下,或在低檔暖風模式 / 高檔暖風模式 涼風模式 下,按「減鍵 」或「加鍵 」設置恆溫溫度。...
  • Page 30 操作說明 B2. 環保模式 1. 在「恆溫模式」下,按「環保鍵 」進入「環保模式」,指示燈 常亮。 2. 按「減鍵 」或「加鍵 」設置恆溫溫度,溫度設置範圍為5℃-35℃。 3. 「環保模式」是指:當本產品檢測到環境溫度急劇下降(在10分鐘內下降 5℃-10℃)時,本產品將自動停止加熱並返回待機狀態,從而達至節能。 4. 如需取消「環保模式」,再按「環保鍵 」即可,指示燈 熄滅。 B3. 一周預設模式 「一周預設模式」是指為一周設定自動開機時間、自動關機時間及溫度,讓本產品 在一周裡按照所設置的時間及溫度自動運作。 注意: . 設定一周預設模式前,必須先設置當前星期和時間。 . 一周預設模式下,只可為每日設置2個程序,分別為「P1」及「P2」。 1. 在待機狀態下(顯示屏顯示「0」),長按「一周預設模式鍵 」3秒,指示燈 「P」閃爍,顯示屏「P1」常亮。 2. 按「減鍵 」或「加鍵 」選擇「DAY 1-7」對應星期一至星期日,按「設定鍵 」確認,再按「確認鍵 」進入時間設置。 3. 按「減鍵 」或「加鍵...
  • Page 31 操作說明 注意: . 在待機狀態下,短按「一周預設模式鍵P」啟動或關閉一周預設模式。 . 如需更改設置,按步驟1-9進行更改。 . 一周預設模式自動循環運行,即在星期日的程序結束後自動回到星期一。 . 如果「P1」及「P2」的時間重疊,則重疊時間期間以較高溫度設置運行。 斷電記憶功能 1. 斷電後,周預設模式裡所設置的星期、時間、溫度將會保留,在再次接駁電源 後默認為斷電前所設置的資料。 2. 斷電後,星期和時間只會保留3天左右,如在3天內未有接駁電源,所設定的星 期和時間將會被消除,使用者需重新設定星期和時間。 恢復出廠設置 在待機狀況下,同時長按「開關鍵 」及「確認鍵 」3秒,顯示屏顯示「FF」, 蜂鳴器發出提示聲一聲,產品恢復出廠設置,所有設置將被重置。 P.31...
  • Page 32: 清潔與保養

    清潔與保養 警告: 清洗前務必關掉電源並拔掉電源插頭,否則有觸電的可能。 機身表面清潔 1. 機身表面清潔,應用濕布(或加上洗潔精)抹擦,不可使用汽油、天拿水、稀 釋劑或有腐蝕性的洗滌劑、溶劑之類進行清潔,嚴禁用水沖或淋洗。 2. 若過濾網上附著過多的異物,將影響出風效果,因此應至少每隔一個月清洗一次。 過濾網清洗 當本產品累計使用達150小時後,顯示屏清洗濾網提示 閃爍,蜂鳴器持續發出 提示聲約15分鐘,提示用家清洗過濾網。按「確認鍵 」後,顯示屏清洗濾網提示 熄滅,蜂鳴器停止發出提示聲。 維護保養 1. 當產品長期不使用時,應拔下電源插頭,包裝好本機以防止灰塵進入機體。 2. 包裝前應確保產品表面、過濾網等是乾燥的。 3. 包裝好後應放置於乾燥通風處存放。 P.32...
  • Page 33 清潔與保養 更換遙控器電池 1. 向內按住遙控器底部電池槽上的扣位,電池槽往外拉出。 2. 確認電池的極性,將電池裝進電池槽的凹槽內。 3. 將電池槽裝回遙控器的底部。 電池槽 往外拉 遙控器底部 向內按 警告: 本產品包含紐扣電池。如果紐扣電池被吞下,可能在2小時內造成嚴重 的內部燒傷,並可能導致死亡。新電池和舊電池應遠離兒童。 P.33...
  • Page 34: 故障檢修說明

    溫度傳感器檢測到室溫達到60℃或上,自動強制關 使用低檔或高檔暖風模式 機;直至室溫低於55℃或以下,可通過手動開機繼 時,產品自動關機 續運作(如手動開機後室溫仍高於60℃,產品將再 自動強制關機)。 使用恆溫模式時,產品自 當溫度設置為35℃,而室溫達到35℃時,產品將進 動待機 入待機狀態,直至室溫下降後自動重新工作。 技術規格 HTW-621 型號 220-240V / 50Hz 電壓 / 頻率 1,500W / 2,100W 功率 (H) 379 (W) 280 (D) 121 mm 產品尺寸(不包含毛巾架) (H) 492 (W) 280 (D) 121 mm 產品尺寸(包含毛巾架) 淨重...
  • Page 35: Warranty Terms & Conditions

    - the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any defective part. 4. 總代理有權選擇維修或更換配件或其損壞部份。 5. This warranty will be void if there is any transfer of 5.
  • Page 36 Fax: +853 2875 2661 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com HT W-621-M-22(2) GPR-T150-M-CN_19(1) P.36...
