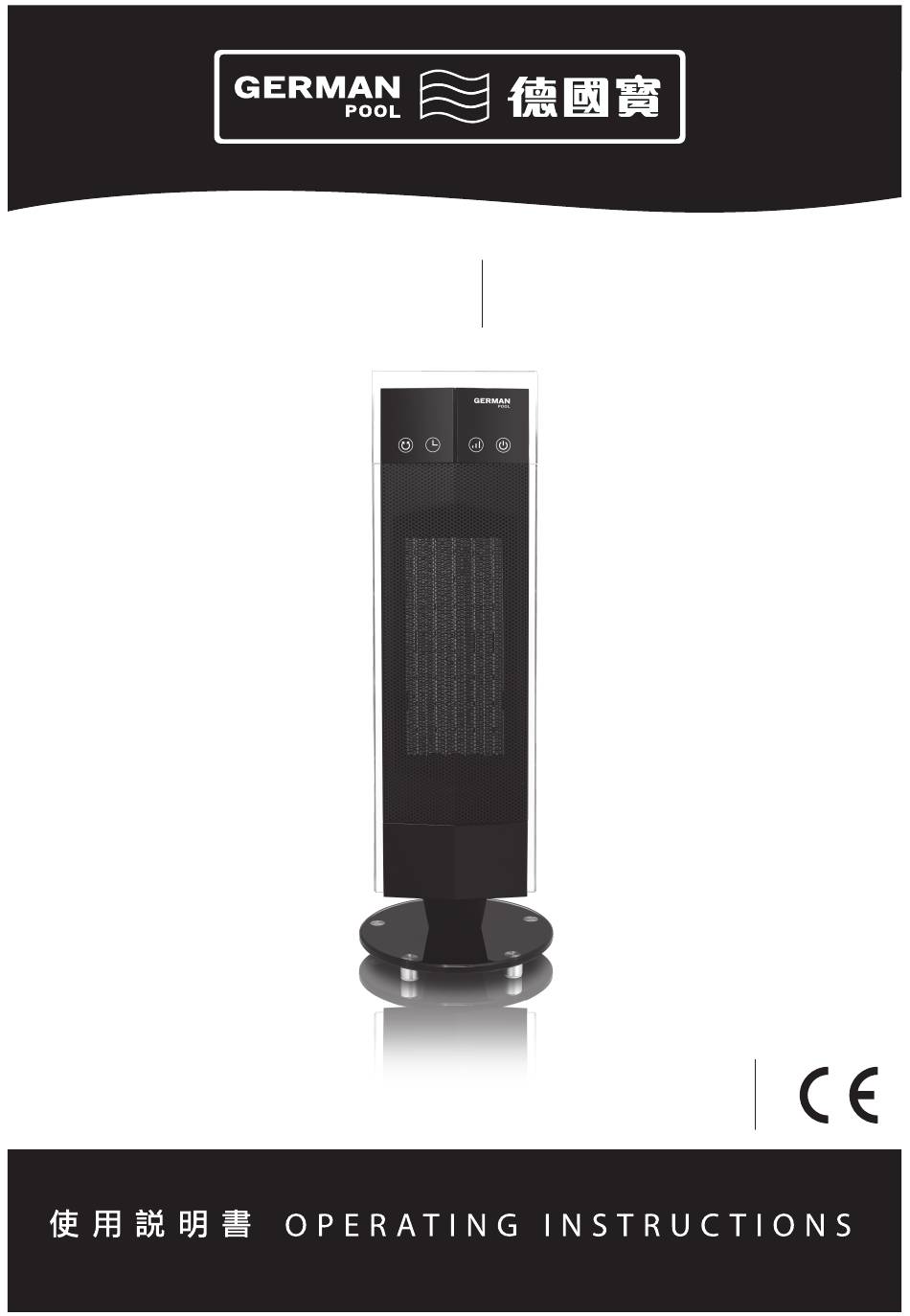

- Page 1 HTS-200 Tower Fan Heater 直 立 式 搖 擺 暖 風 機 在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 ， 並 妥 為 保 存 。...
-
Page 2: Table Of Contents
Table of Contents 目錄 注意事項 Notice Before Use 產品結構 Product Structure 操作說明 Operating Instructions 清潔與保養 Care & Maintenance 常見事故及處理 Troubleshooting 技術規格 Technical Specifications 保用條款 Warranty Terms & Conditions... -
Page 3: 注意事項 Notice Before Use
注意事項 Notice Before Use Important 重要說明 For safety purpose, you should read the instructions 為安全起見，初次使用產品前請先細閱本說 carefully before using the appliance for the first time. 明書，並保存說明書，以便作參考之用。 Save the instructions for future reference. The appliance is designed for domestic use and may 本產品只供家居使用。請必須依照本說明書... - Page 4 注意事項 Notice Before Use 11. The fan heater should be packed well when not 11. 長期不使用風機時應放回包裝盒並存放於 used for a long time to keep away from dust. Then, 乾爽通風的位置。 store at dry, ventilated place. 12. The fan heater is not intended for use by children or 12. 本風機不適宜給兒童或身體狀況有礙安全...
-
Page 5: 產品結構 Product Structure
產品結構 Product Structure 機身 Body (10) (11) Front: 機身正面： 1. Control Panel 1. 操作面板 2. Front Cover 2. 出風口保護殼 3. Heater Support Stand 3. 支撐柱 4. Glass Base 4. 玻璃底座 5. Frame 5. 裝飾框 Back: 機身背面： 6. Handle 6. 手柄 7. Air Filter Grille Cover 7. 過濾網保護蓋 8. - Page 6 產品結構 Product Structure 顯示屏 Display 定時設定顯示 熱力設定顯示 Timer Setting Display Heat Setting Display 搖擺顯示 開關顯示 Swing ON/OFF ON/OFF Display Display 按鍵 Control Buttons 搖擺 定時 熱力強弱 開關 Swing Timer Heating Power ON/OFF 遙控器 Remote Control ON/OFF Heating Power 開關 熱力強弱 Swing Timer 搖擺...
-
Page 7: 操作說明 Operating Instructions
操作說明 Operating Instructions Assembly of Device 安裝程序 1. Place the Main Body horizontally on a table. Unscrew 1.將主機平放桌面，扭開組裝旋鈕(圖1)。 the Securing Nut (Fig 1). 2. Insert the Glass Base into the Heater Support Stand. 2.將玻璃底座套進主機支撐柱，重新扭緊旋 Use the Securing Nut to screw it tightly (Fig 2). 鈕(圖2)。... - Page 8 操作說明 Operating Instructions 4. Timer 4.定時 - Press to set timer. - 按 鍵定時。 - Press the key once will increase the timer setting by - 每按一次累增半小時。如顯示屏上0.5及 0.5 hrs. For example: when 0.5 and 1.0 both light 1.0同時亮起，表示定時設定為1.5小時， up, it means timer is set to 1.5 hrs. When 1.0 and 如1.0及2.0同時亮起，表示3小時，如此...
-
Page 9: 清潔與保養 Care & Maintenance
清潔與保養 Care & Maintenance - Before cleaning or repairing, always disconnect the - 清潔或維修前必須先拔出電源插頭，並等待 fan heater from the electrical supply. Please let the 機身冷卻。 fan heater cool down before maintenance. - If there is dust on the surface, please clean with a - 以軟布清潔機身表面的塵埃，若仍未能清除... -
Page 10: 技術規格 Technical Specifications
技術規格 Technical Specifications Model HTS-200 型號 Voltage 220-240 V 電壓 Frequency 50Hz 頻率 Rated Power 2,000 W 功率 Timer 0.5 - 7.5 hrs 定時 Dimensions (H) 646 mm (W) 230 mm (D) 230 mm 機身尺寸 產品規格及設計如有變更﹐恕不另行通知。 Specifications are subject to change without prior notice. -
Page 11: 保用條款 Warranty Terms & Conditions
- 產品經非認可之技術人員改裝或加裝任何配件； - serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, in its discretion, repair or replace any 4. 總代理有權選擇維修或更換配件或其損壞部份。 defective part. 5. 產品一經被轉讓，其保用即被視作無效。 5. This warranty will be void if there is any transfer of ownership from the original purchaser. - Page 12 電話 Tel: +86 757 2980 8308 傳真 Fax: +86 757 2980 8318 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. HTX-HTS200-M-11(1)
