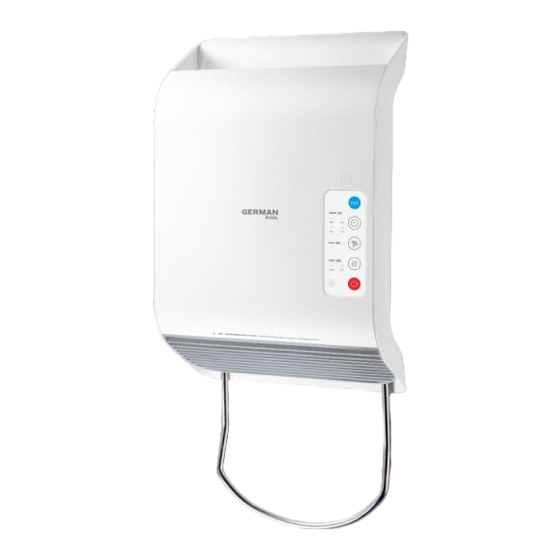

HTW-330
Por table UV-C Bathroom Heater
Online Warranty Registration
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
U S E R M A N U A L
P.1

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTW-330 and is the answer not in the manual?

Questions and answers

Summary of Contents for German pool HTW-330

  • Page 1 HTW-330 Por table UV-C Bathroom Heater Online Warranty Registration Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L...
  • Page 2 請即進行保用登記﹗ 有關保用條款細則,請看本說明書最後一頁。 Please register your warranty information now! For Warranty Terms & Conditions, please refer to the last page of this user manual.
  • Page 3: Table Of Contents

    Table of Contents Warnings & Safety Precautions Product Structure Installation Instructions Accessories Operation Instructions Care and Maintenance Technical Specifications Terms & Warranty...
  • Page 4: Warnings & Safety Precautions

    Warnings & Safety Precautions NOTE: • IP23 protection rating only applies to when this product is installed and fixed on the wall for vertical operation. • This product is a heater. Do not use this product as a fan. Please read all instructions carefully before using this product. WARNING! This appliance contains a UV emitter.
  • Page 5 Warnings & Safety Precautions years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. WARNING! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. WARNING! In order to avoid overheating, do not cover this product.
  • Page 6 Warnings & Safety Precautions on the cord. 22. Before plugging into the power source, make sure the plug is clean and free of any foreign substance, and make sure to plug in completely and securely. 23. If this product emits any odor or strange noise, stop using immediately and unplug the power source.
  • Page 7: Product Structure

    Product Structure Main Body Grip Timer Cool Air Control Panel Warm Air Air Vent On/Off Detachable Towel Rail Power Switch Back Remote Control On/Off Cool Air Warm Air Timer...
  • Page 8: Installation Instructions

    Installation Instructions ① The product can be mounted on wall. (Note: height above the ground should be higher than 1 meter and distance to the sidewall should be more than 0.3 meter. If it is used in the bathroom, it should be at least 1 meter away from the water source) More than 0.3m Detachable Towel Rail...
  • Page 9 Installation Instructions ② Installing the screw plugs and screws: a) Drill two 6mm holes (29mm in depth) on the wall. The distance between them should be 74mm. b) Insert the screw plugs into the holes. c) Insert the screws through the wall hook, insert them into the screw plugs and secure the screws. 29mm Wall Wall hook...
  • Page 10: Accessories

    Accessories Towel rail insert the ends of the towel rail into the slots located on two sides of the air vent, and then gently pull it while moving it left and right until it is securely fixed. If the metal rail is no longer needed, gently push it while moving it left and right to detach it.
  • Page 11: Operation Instructions

    Operation Instructions Attention: This product is equipped with an internal fan for heat dissipation. As long as the PTC ceramic heating element is working, the cooling fan will keep operating. The fan will continue to operate for 10 seconds after PTC stops working. Connect to power source, turn on the switch located at the bottom of the Watch the video clip product.
  • Page 12: Care And Maintenance

    Care & Maintenance WARNING! Before cleaning, be sure to turn off the power and unplug the power plug, or else it may cause electric shock. Cleaning The Surface Clean the surface of this product with a damp cloth (or moistened with detergent). Do not rinse directly with water.
  • Page 13 Care & Maintenance Maintenance If this product won’t be used for a long time, pull out the power plug, pack this product and prevent dust from entering. Before packing, make sure that the outer surface and the filter are dry. After packaging, it should be stored in a dry and ventilated place.
  • Page 14: Technical Specifications

    Technical Specifications Model HTW-330 Voltage 220-240V ~ Frequency 50 Hz Power 2,000W Noice ≤55 dB Dimensions (H) 388 mm (W) 250 mm (D) 123.5 mm Net Weight 2.1 kg Specifications are subject to change without prior notice. If there is any inconsistency or ambiguity between the English version and the Chinese version, the Chinese version shall prevail.
  • Page 15 目錄 警告及注意事項 產品結構 安裝說明 跟機配件 操作說明 清潔與保養 技術規格 保用條款 P.15...
  • Page 16: 警告及注意事項

    警告及注意事項 注意: • IP23防水防塵級別只適用於當產品垂直固定安裝於牆壁使用。 • 本產品不可作風扇用途。 使用此產品前,請仔細閱讀所有說明。 警告!本產品配備紫外線燈,嚴禁凝視紫外線光源。 警告!嚴禁任何角度望紫外線,以免對眼睛造成永久性損害。 警告!嚴禁將紫外線照射皮膚,或讓皮膚曝露在紫外線之中。 1. 本產品僅用於室內使用。 2. 本產品不適用於身體、感官或精神有缺陷,及缺乏必要經驗和知識的人群 (包括小孩),除非在能對其安全負責的人的監管下使用。兒童應進行監管, 以確保他們不玩耍本產品。 3. 當本產品由8歲或以上兒童、感官或精神有缺陷及缺乏必要經驗和知識的人 使用時,必須有對其安全負責的人進行監管,並確保使用者的安全及其明 白當中潛在危險。當兒童對本產品進行清潔和維護時,必須有對其安全負 責的人進行監管。 4. 如果電源軟線損壞,為了避免危險,必須由製造商、其維修部或類似部門 的專業人員更換。 5. 3歲以下的幼兒應遠離本產品,除非有對其安全負責的人進行持續監管。 6. 當本產品被放置或安裝在正常工作位置時,在有對其安全負責的人指導或 協助、並確保使用者的安全及其明白當中潛在危險的前提下,3至8歲的兒 童只可開啟/關閉本產品。3至8歲的兒童不可調節、清潔、保養本產品, 亦不可把本產品插頭連接電源。 P.16...
  • Page 17 警告及注意事項 警告!本產品的某些部分可能變得非常熱並導致燒傷。兒童和弱勢群 體 在場時請特別注意。 警告!為避免過熱,禁止覆蓋本產品。 9. 在浴缸、噴頭或泳池的四周不得使用本產品。 10. 本產品不得直接置於電源插座下面。 警告!本產品不具備室溫控制功能,對於行動不便的人在狹小空間使 用本產品時,必須有對其安全負責的人進行持續監管。 12. 如果本產品有跌落過,請勿使用。 13. 如果本產品有明顯的損壞跡象,請勿使用。 14. 本產品必須擺放在平坦及穩固的表面上使用。(注:離地距離需大於1米, 距離牆壁大於0.3米,如果在浴室使用,必須垂直安裝及確保安裝位置離水源的 距離大於1米) 警告!為避免引起火警,出風口1米範圍內,嚴禁擺放任何布料、窗 簾或其他易燃物料。 16. 若本產品發生故障,請聯絡客戶服務及維修中心。請勿擅自拆卸、更換 零部件。 17. 不能用濕手觸摸電源線插頭。 18. 嚴禁將木棍、金屬棍等異物塞入進、出風口。 19. 請勿在本產品周圍噴灑殺蟲劑及可燃性噴霧劑。 20. 避免將本產品出風口長時間、直接向幼兒吹風。 21. 拔掉電源線插頭時,請勿拉扯電線。 P.17...
  • Page 18 警告及注意事項 22. 確保電源線插頭沒有黏上異物,並將插頭完全插入。 23. 當本產品在使用中出現異味、異響時,請立即停止使用,並拔掉電源線插頭。 24. 請勿折疊或將重物放置到電源線上。 25. 外出或長時間不使用本產品時,必須關機,並將電源線插頭從插座中拔出。 26. 使用本產品時,必須使用經檢查符合要求的合格電源插座。 27. 必須確保使用的電源電壓與本產品銘牌指定的電壓一致。 28. 搬遷時請確認使用電壓。 29. 嚴禁將物品放置在本產品上。 30. 不要攝入電池,可能導致化學灼傷危險。 警告!本產品包含紐扣電池。如果紐扣電池被吞下,可能在2小時內 造成嚴重的內部燒傷,並可能導致死亡。 32. 新電池和舊電池應遠離兒童。 33. 如果電池蓋不能安全關閉,請停止使用產品,並將其遠離兒童。 34. 如果您認為電池可能被吞食或放置在身體任何部位,請立即就醫。 35. 電池含有對環境有害的材料;在報廢前,必須將其從設備中取出,並進 行安全處理。 P.18...
  • Page 19: 產品結構

    產品結構 主機 把手 定時 鍵 吹 風 鍵 控制面板 暖 風 鍵 出風口 開 關 鍵 可拆式毛巾架 總 開關 鍵 背面 遙控器 開關鍵 吹風 鍵 暖風鍵 定 時 鍵 P.19...
  • Page 20: 安裝說明

    安裝說明 ① 本機結構適用於掛牆安裝,可掛於牆壁上(注:離地距離需大於1米,距離牆壁大於0.3米, 如果在浴室使用,請確保安裝位置離水源的距離大於1米)。 大於0.3米 可拆式毛巾架 P.20...
  • Page 21 安裝說明 ② 螺塞和螺絲安裝方法: a. 在牆上鑽兩個φ6mm的螺絲孔(距離為74mm),深29mm; b. 然後把螺塞插入牆壁的孔中; c. 把螺絲穿過掛牆鉤並插入螺塞中,擰緊螺絲即可。 29mm 牆壁 掛牆鉤 螺塞 2-φ6mm 孔深29mm 將螺塞打入牆壁 ③ 安裝機器:把掛牆方孔(大孔)對準掛牆鈎,然後右移至小孔。 掛牆方孔 掛牆方孔 (大孔) (小孔) P.21...
  • Page 22: 跟機配件

    跟機配件 可拆式毛巾架 將金屬架放入出風柵底部兩側槽內,然後左右側均往外拉卡住金屬架即可;當不使用金屬架 時,左右側往裡推即可拆卸下金屬架。 安裝 往外拉 拆卸 往裡推 掛鈎 把掛牆方孔(大孔)對準掛鈎,然後右移至小孔。 5厘米 掛牆方孔 掛牆方孔 (小孔) (大孔) P.22...
  • Page 23: 操作說明

    操作說明 注意:本機內置風扇散熱功能,只要PTC發熱體啟動運作,散熱風扇亦將啟動運作。每當PTC發 熱體停止工作時,散熱風扇將繼續工作10秒後停止。 插上電源後,打開機身底面的總開關鍵,機器發出提示音,進入待機狀態,其他功能及指 示燈熄滅。 待機狀態下按除 以外的其他按鍵均無效,按 開機,再按一次 關機,開機之 後的狀態預設為: • PTC發熱體:以低檔位(環保模式)運行,LOW指示燈亮起。HIGH 指示燈不亮。 • 吹風(COOL)指示燈不亮。 • 定時指示燈不亮,即機器處於不定時運作狀態。 開機狀態下,按 一次,功率由低檔轉成高檔,再按一次回到低檔,依此循環。 • 低檔-環保模式:LOW指示燈亮起。 • 高檔-強勁模式:HIGH指示燈亮起。 開機狀態下,按 一次,吹風指示燈亮起,PTC發熱體停止工作,吹風一直開啟。再按 一次,吹風指示燈熄滅,暖風功能開啟,恢復原工作檔位狀態。 開機狀態下,按 進行定時功能設置。 • 按一次 ,定時設置為1小時,再按依次為 「2小時、4小時、8小時、無定時 」 循環。 • 定時設置後立即開始計時,到達設置的時間後關機,進入待機狀態。 開機狀態下,按 開啟UV燈,再按一次關閉UV燈。 P.23...
  • Page 24: 清潔與保養

    清潔與保養 警告: 清洗前務必關掉電源並拔掉電源插頭,否則有觸電的可能。 機身表面清潔 1. 機身表面清潔,應用濕布(或加上洗潔精)抹擦,不可使用汽油、天拿水、稀釋劑或有腐蝕性的洗 滌劑、溶劑之類進行清潔,嚴禁用水沖或淋洗。 2. 若過濾網上附著過多的異物,將影響出風效果,因此應至少每隔一個月清洗一次。 過濾網清洗 1. 按順序取出過濾網(如下圖)。 2. 過濾網用清潔劑浸泡數分鐘,清洗晾乾即可。 3. 按照順序將過濾網濾網蓋安裝好,確保安裝無誤。 維護保養 1. 當產品長期不使用時,應拔下電源插頭,包裝好本機以防止灰塵進入機體。 2. 包裝前應確保產品表面、過濾網等是乾燥的。 3. 包裝好後應放置於乾燥通風處存放。 P.24...
  • Page 25 清潔與保養 更換遙控器電池 1. 向內按住遙控器底部電池槽上的扣位,電池槽往外拉出。 2. 確認電池的極性,將電池裝進電池槽的凹槽內。 3. 將電池槽裝回遙控器的底部。 電池槽 往外拉 遙控器底部 向內按 警告: 本產品包含紐扣電池。如果紐扣電池被吞下,可能在2小時內造成嚴 重的內部燒傷,並可能導致死亡。新電池和舊電池應遠離兒童。 P.25...
  • Page 26: 技術規格

    技術規格 型 號 HTW-330 電 壓 220-240V ~ 頻 率 50 Hz 功 率 2,000W ≤55 dB 噪 音 外 型尺寸 (H) 388 mm (W) 250 mm (D) 123.5 mm 淨 重 2.1 kg 產 品 規 格及 設計如有變 更,恕不另行通知。...
  • Page 27: Terms & Warranty

    P.27...
  • Page 28 Fax: +853 2875 2661 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. www.germanpool.com HT W-330-M-22(3)
