Installing the Snap Server 18000 in a Rack

Attaching the Cable Management Assembly

The cable management assembly consists of the cable arm and a packet of velcro
strips to secure the cables to the arm. The assembly simply snaps into the left slide
rail; no tools are required for installation.
The size of the connector on an attached SCSI cable may prevent the 18000 from
fully withdrawing into a rack when the cable management arm is attached. To
resolve this problem, remove the cable management arm.
Thread the velcro ties through the cable management arm.
1

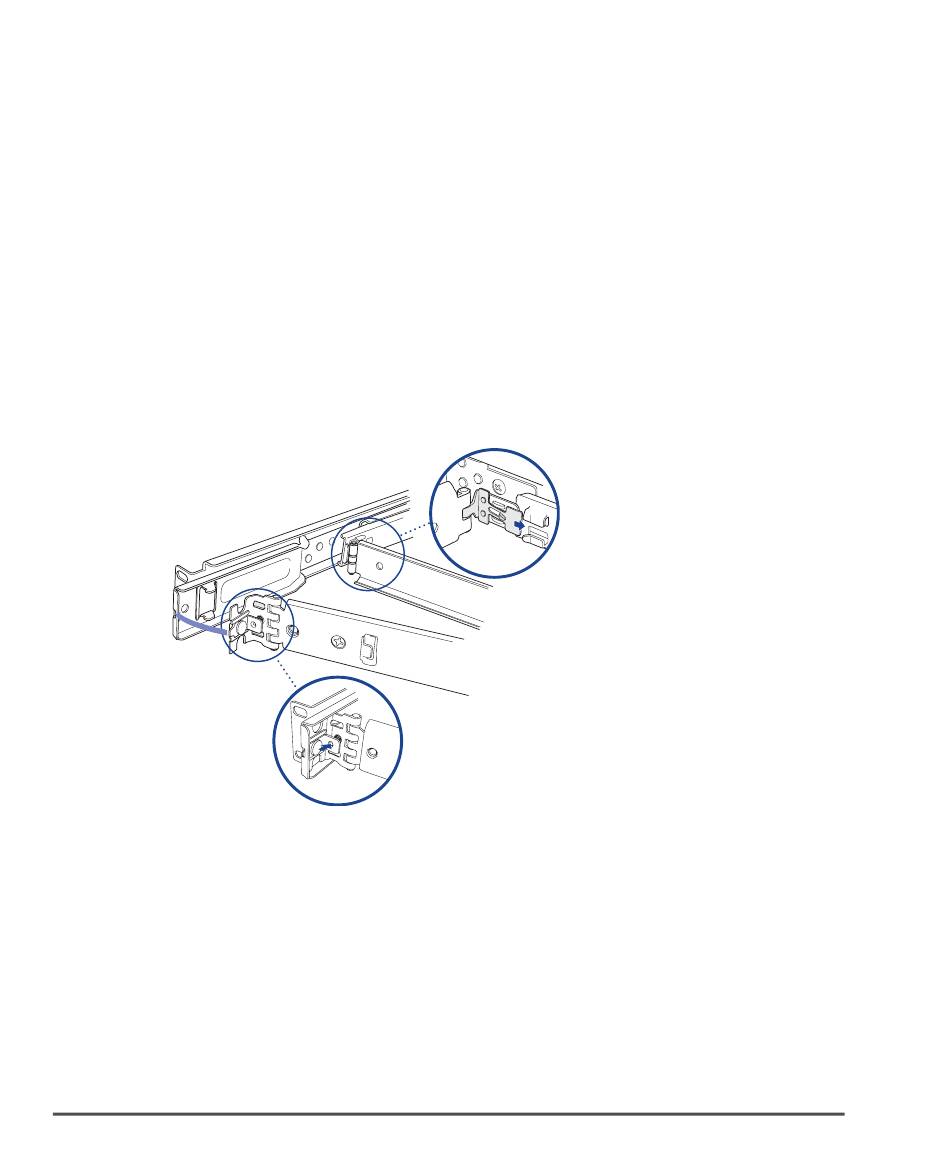

To attach the arm to the left slide rail at the back of the rack:
2
Insert the cable arm's hinged bracket into the slide rail's receiving hooks.
a
Press the spring-loaded tab and rotate the bracket forward. Release the tab to
b
lock the arm into place.
Insert the front cable management arm into the receiving clip of the slide rail
3
assembly.
4
