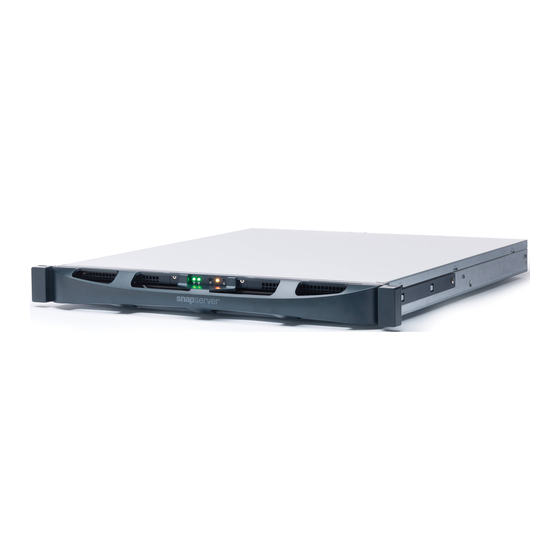

Overland Storage SnapServer XSR 40 Instructions

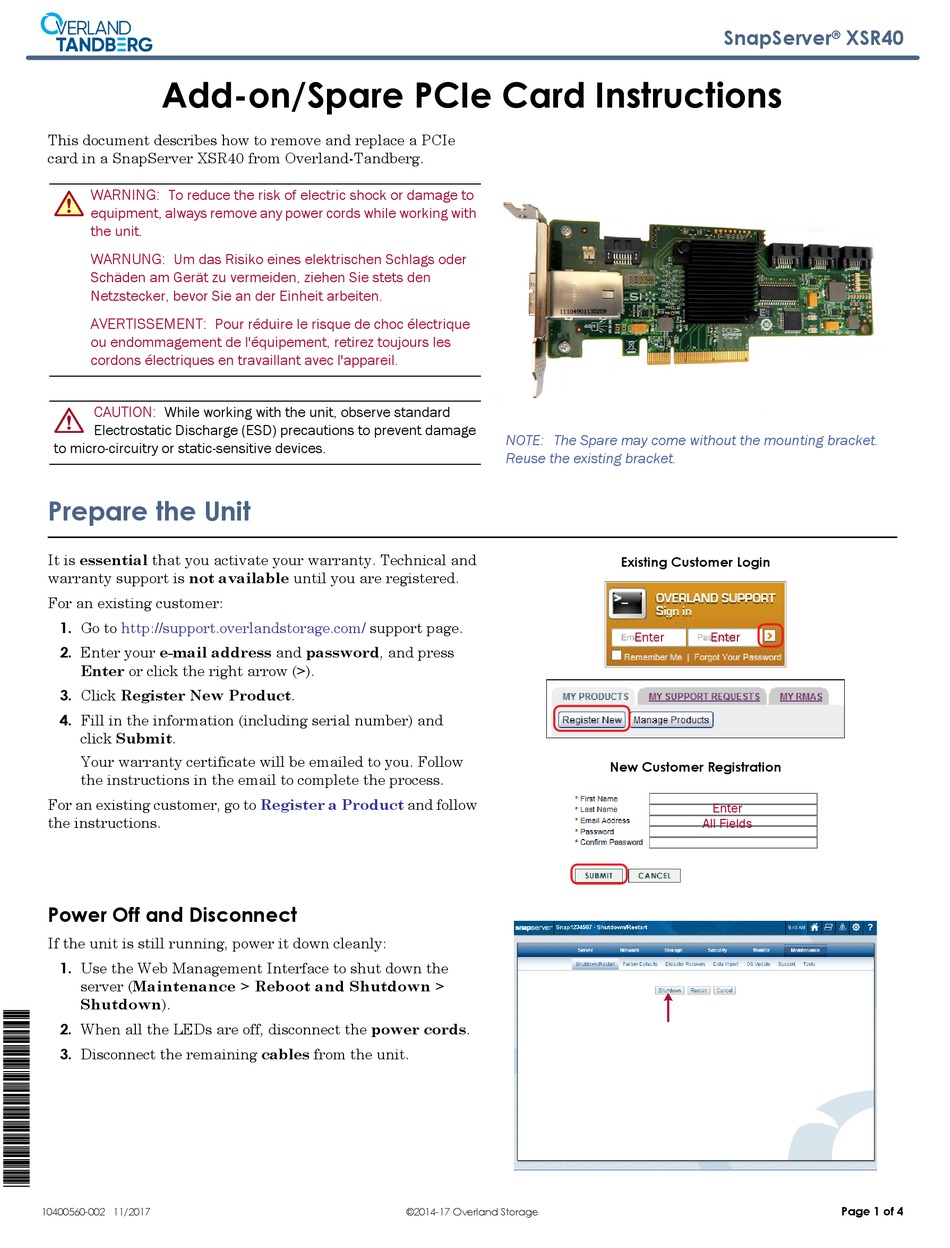

Add-on/Spare PCIe Card Instructions
This document describes how to remove and replace a PCIe
card in a SnapServer XSR40 from Overland-Tandberg.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
WARNUNG: Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

Prepare the Unit

It is essential that you activate your warranty. Technical and
warranty support is not available until you are registered.
For an existing customer:
1. Go to http://support.overlandstorage.com/
2. Enter your e-mail address and password, and press
Enter or click the right arrow (>).
3. Click Register New Product.
4. Fill in the information (including serial number) and
click Submit.
Your warranty certificate will be emailed to you. Follow
the instructions in the email to complete the process.
For an existing customer, go to
the instructions.

Power Off and Disconnect

If the unit is still running, power it down cleanly:
1. Use the Web Management Interface to shut down the
server (Maintenance > Reboot and Shutdown >
Shutdown).
2. When all the LEDs are off, disconnect the power cords.
3. Disconnect the remaining cables from the unit.
10400560-002 11/2017
support page.
Register a Product and follow
©2014-17 Overland Storage
NOTE: The Spare may come without the mounting bracket.
Reuse the existing bracket.
Existing Customer Login
Enter
New Customer Registration
SnapServer XSR40
®
Enter
Enter
All Fields
 Page 1 of 4
