Installing the Snap Server 18000 in a Rack

Attaching the Front Brackets and Sliders to the Chassis

Position one of the front brackets at the front of the chassis side panel. The
1
brackets are oriented so one goes on the left side, and the other goes on the right
side.
Insert one of the small screws to attach each bracket to the chassis, and tighten
2
firmly.
Position the inner slider behind an ear bracket at the front of the chassis side
3
panel with the release button toward the front of the chassis.
Align the screw holes with corresponding knobs in the chassis side panel and
4
slide the inner slider into place.

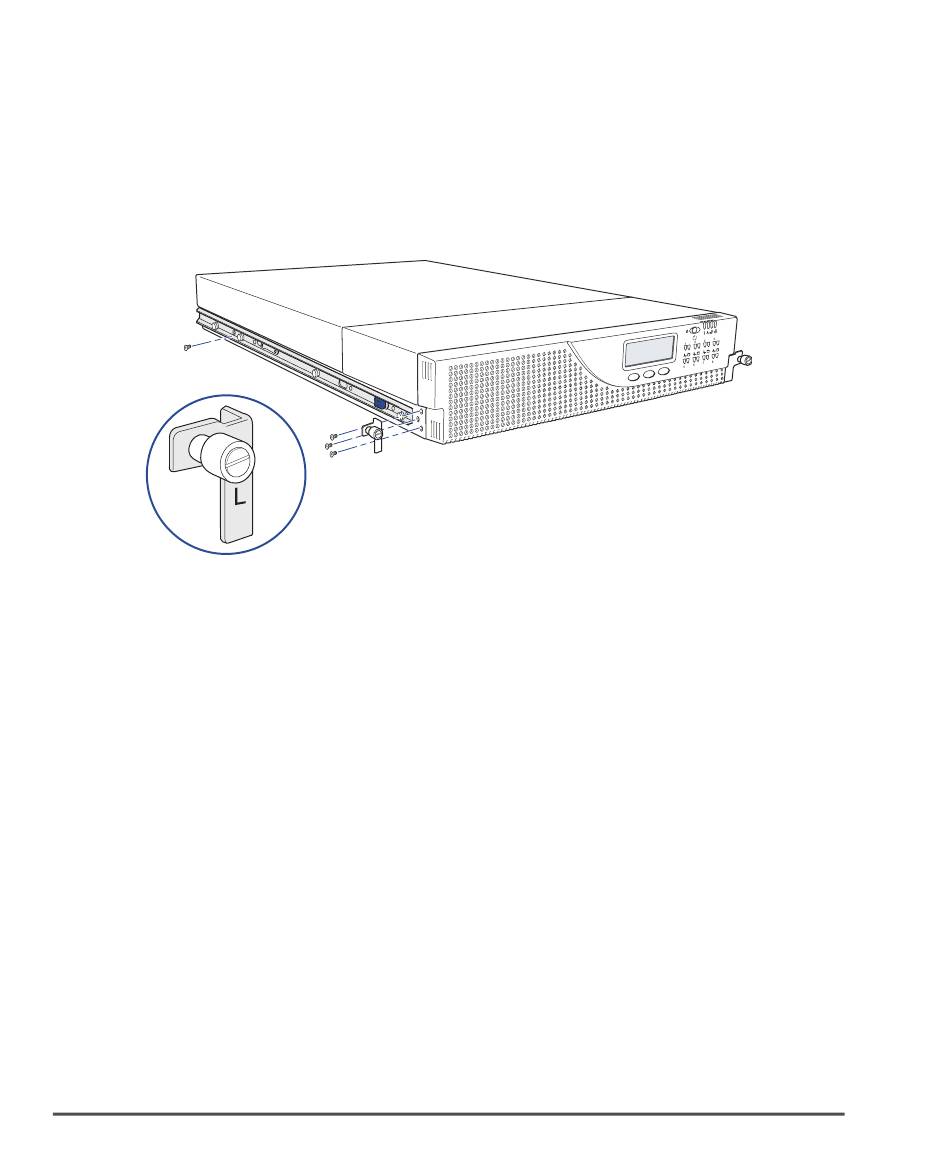

Attach four of the shorter screws (as shown in the illustration) and tighten firmly.
5
Repeat the steps to attach the inner slider to the other side of the chassis.
6
