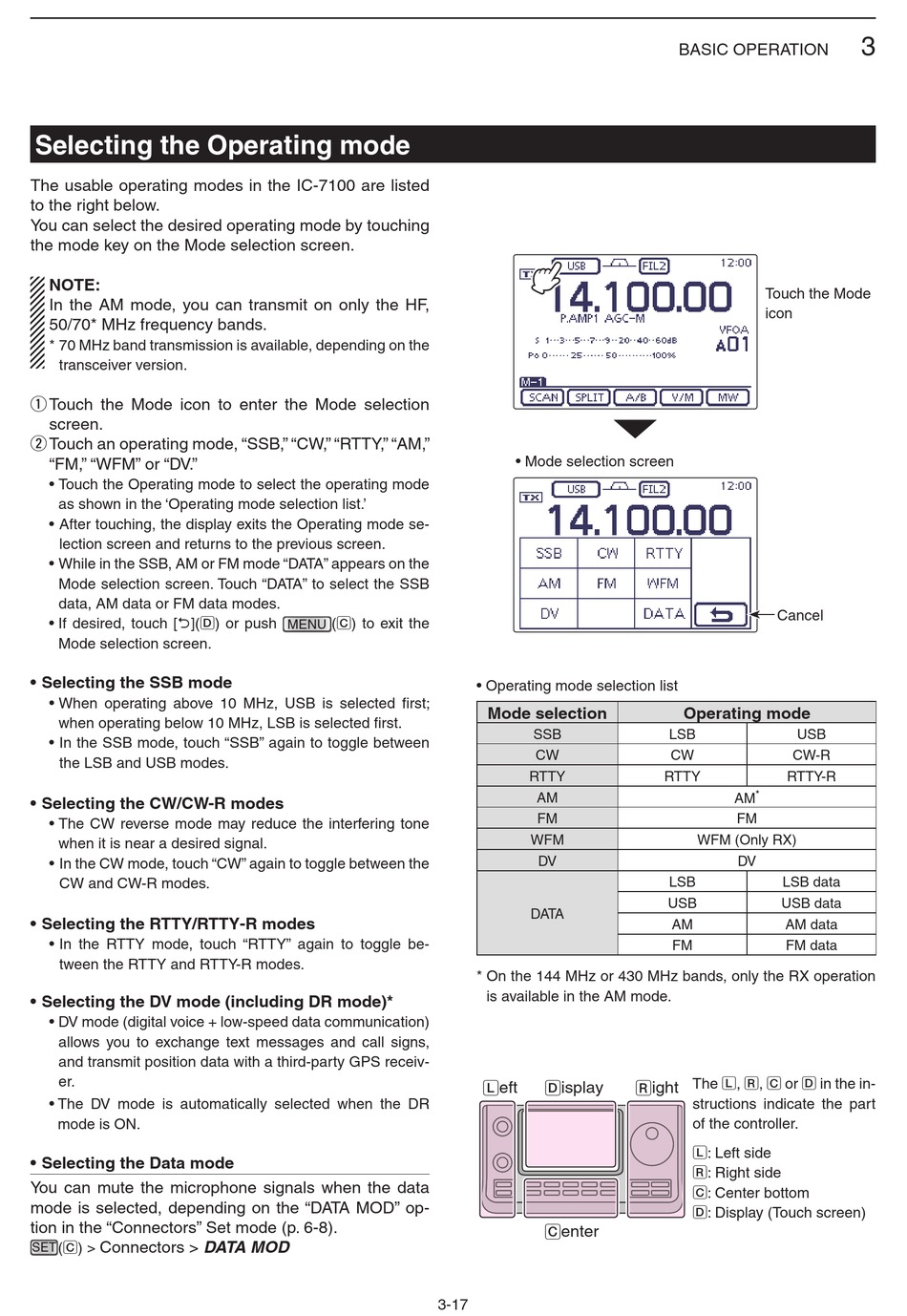

Icom IC-7100 Instruction Manual page 49

The usable operating modes in the IC-7100 are listed
to the right below.
You can select the desired operating mode by touching
the mode key on the Mode selection screen.
NOTE:
In the AM mode, you can transmit on only the HF,
50/70* MHz frequency bands.
* 70 MHz band transmission is available, depending on the
transceiver version.
Touch the Mode icon to enter the Mode selection
q
screen.
Touch an operating mode, "SSB," "CW," "RTTY," "AM,"
w
"FM," "WFM" or "DV."
as shown in the 'Operating mode selection list.'
lection screen and returns to the previous screen.
Mode selection screen. Touch "DATA" to select the SSB
data, AM data or FM data modes.
](D) or push
Mode selection screen.
when operating below 10 MHz, LSB is selected first.
the LSB and USB modes.
when it is near a desired signal.
CW and CW-R modes.
tween the RTTY and RTTY-R modes.
allows you to exchange text messages and call signs,
and transmit position data with a third-party GPS receiv-
er.
mode is ON.
You can mute the microphone signals when the data
mode is selected, depending on the "DATA MOD" op-
tion in the "Connectors" Set mode (p. 6-8).
Connectors > DATA MOD
SET (C) >
-
(C) to exit the
MENU
-
3-17
SSB
CW
RTTY
AM
FM
WFM
DV
DATA
* On the 144 MHz or 430 MHz bands, only the RX operation
is available in the AM mode.
L eft D isplay R ight
C enter
BASIC OPERATION
Touch the Mode
icon
Cancel
LSB USB
CW CW-R
RTTY RTTY-R
*
AM
FM
WFM (Only RX)
DV
LSB LSB data
USB USB data
AM AM data
FM FM data
The L, R, C or D in the in-
structions indicate the part
of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
3
