Icom IC-7100 Instruction Manual page 10

1

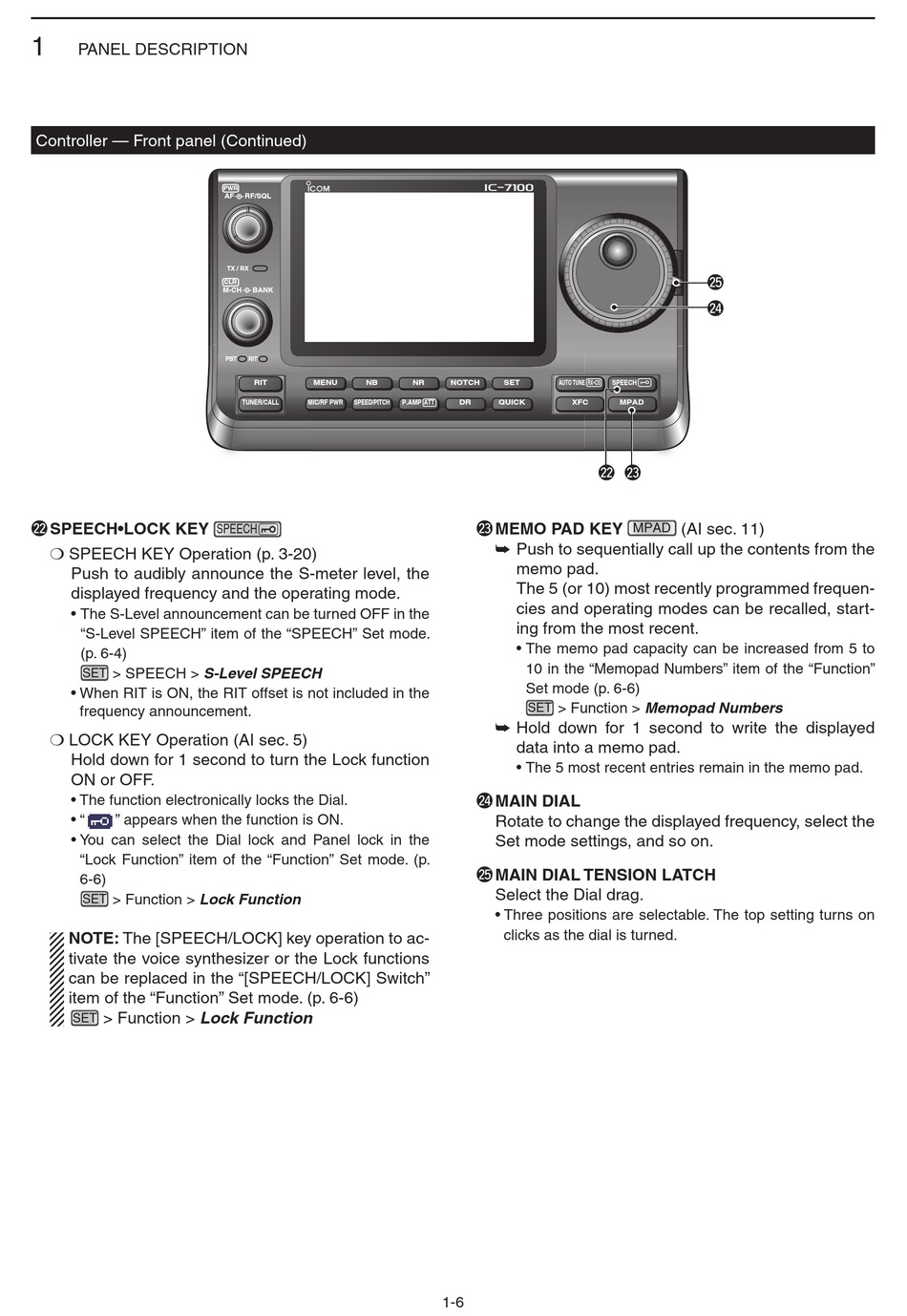

PANEL DESCRIPTION
Controller — Front panel (Continued)
@2
SPEECH KEY Operation (p. 3-20)
Push to audibly announce the S-meter level, the
displayed frequency and the operating mode.
"S-Level SPEECH" item of the "SPEECH" Set mode.
(p. 6-4)
> SPEECH > S-Level SPEECH
SET
frequency announcement.
LOCK KEY Operation (AI sec. 5)
Hold down for 1 second to turn the Lock function
ON or OFF.
" " appears when the function is ON.
"Lock Function" item of the "Function" Set mode. (p.
6-6)
> Function > Lock Function
SET
NOTE: The [SPEECH/LOCK] key operation to ac-
tivate the voice synthesizer or the Lock functions
can be replaced in the "[SPEECH/LOCK] Switch"
item of the "Function" Set mode. (p. 6-6)
> Function > Lock Function
SET
PWR
AF RF/SQL
TX / RX
CLR
M-CH BANK
PBT RIT
RIT MENU NB
TUNER/CALL MIC/RF PWR SPEED/PITCH
SPEECH
i7100
NR NOTCH SET AUTO TUNE RX CS
P.AMP ATT DR QUICK XFC
@3
Push to sequentially call up the contents from the
memo pad.
The 5 (or 10) most recently programmed frequen-
cies and operating modes can be recalled, start-
ing from the most recent.
10 in the "Memopad Numbers" item of the "Function"
Set mode (p. 6-6)
> Function > Memopad Numbers
SET
Hold down for 1 second to write the displayed
data into a memo pad.
@4 MAIN DIAL
Rotate to change the displayed frequency, select the
Set mode settings, and so on.
@5 MAIN DIAL TENSION LATCH
Select the Dial drag.
clicks as the dial is turned.
1-6
@5
@4
SPEECH
MPAD
@2 @3
(AI sec. 11)
MPAD
