Icom IC-7100 Instruction Manual page 12

1

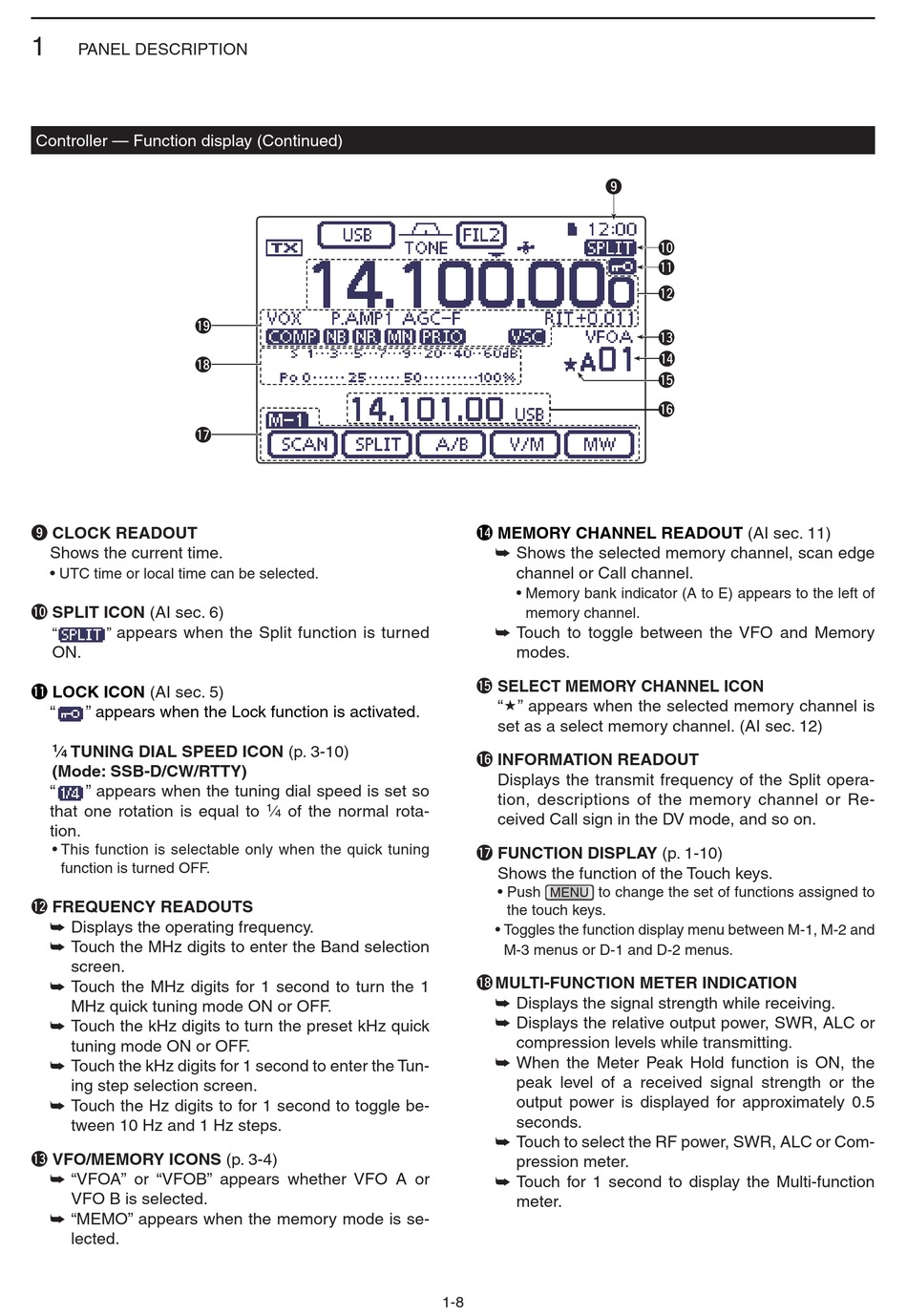

PANEL DESCRIPTION
Controller — Function display (Continued)
!9
!8
!7
o
Shows the current time.
!0 SPLIT ICON (AI sec. 6)
appears when the Split function is turned
" "
ON.
(AI sec. 5)
!1
" " appears when the Lock function is activated.
1 ⁄ TUNING DIAL SPEED ICON (p. 3-10)
4
" " appears when the tuning dial speed is set so
that one rotation is equal to
tion.
function is turned OFF.
!2 FREQUENCY READOUTS
Displays the operating frequency.
Touch the MHz digits to enter the Band selection
screen.
Touch the MHz digits for 1 second to turn the 1
MHz quick tuning mode ON or OFF.
Touch the kHz digits to turn the preset kHz quick
tuning mode ON or OFF.
Touch the kHz digits for 1 second to enter the Tun-
ing step selection screen.
Touch the Hz digits to for 1 second to toggle be-
tween 10 Hz and 1 Hz steps.
!3 VFO/MEMORY ICONS (p. 3-4)
"VFOA" or "VFOB" appears whether VFO A or
VFO B is selected.
"MEMO" appears when the memory mode is se-
lected.
1 ⁄ of the normal rota-
4
o
!4 MEMORY CHANNEL READOUT
Shows the selected memory channel, scan edge
channel or Call channel.
memory channel.
Touch to toggle between the VFO and Memory
modes.
!5 SELECT MEMORY CHANNEL ICON
" " appears when the selected memory channel is
set as a select memory channel. (AI sec. 12)
!6 INFORMATION READOUT
Displays the transmit frequency of the Split opera-
tion, descriptions of the memory channel or Re-
ceived Call sign in the DV mode, and so on.
!7 FUNCTION DISPLAY (p. 1-10)
Shows the function of the Touch keys.
to change the set of functions assigned to
MENU
the touch keys.
M-3 menus or D-1 and D-2 menus.
!8 MULTI-FUNCTION METER INDICATION
Displays the signal strength while receiving.
Displays the relative output power, SWR, ALC or
compression levels while transmitting.
When the Meter Peak Hold function is ON, the
peak level of a received signal strength or the
output power is displayed for approximately 0.5
seconds.
Touch to select the RF power, SWR, ALC or Com-
pression meter.
Touch for 1 second to display the Multi-function
meter.
1-8
!0
!1
!2
!3
!4
!5
!6
(AI sec. 11)
